SPORTSMAN 500 - W98CH50A
4
Parts Catalog
STARTING MOTOR SPORTSMAN 500 W98CH50A AND W98CH50AB (4945714571E002)
5
Parts Diagram
Parts Catalog
MAGNETO SPORTSMAN 500 W98CH50A AND W98CH50AB (4945714571E001)
by
REAR RACK MOUNTING
STARTING MOTOR SPORTSMAN 500 W98CH50A AND W98CH50AB (4945714571E002)
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
ASM. MOTOR STARTING
3084981
9999999
Not Available
2
WASHER SET
3084982
9999999
Not Available
3
ARMATURE ASSEMBLY
3085353
9999999
Not Available
4
BRUSH COMPL.2-POLE
3084406
9999999
Not Available
5
FLANGE NUT
3083649
9999999
Not Available
6
O-RING
3084408
9999999
Not Available
7
BOLT AND WASHER ASSEMBLY
3082038
9999999
Not Available
8
ASM. COVER REAR
3085034
9999999
Not Available
9
BRACKET ASSEMBLY; FRONT
3085033
9999999
Not Available
10
O-RING
3240114
9999999
Not Available
11
BOLT ASM SET
3084983
9999999
Not Available
12
RUBBER RING
3084405
9999999
Not Available
13
WASHER
3083737
7556994
$6,29 Unit Price incl. VAT
14
CLIP
3084412
9999999
Not Available
15
SPRING WEIGHT
3084411
9999999
Not Available
16
SPRING RETURN
3084410
9999999
Not Available
17
CLIP
3084409
9999999
Not Available
18
ASM-GEAR SHAFT
3085394
9999999
Not Available

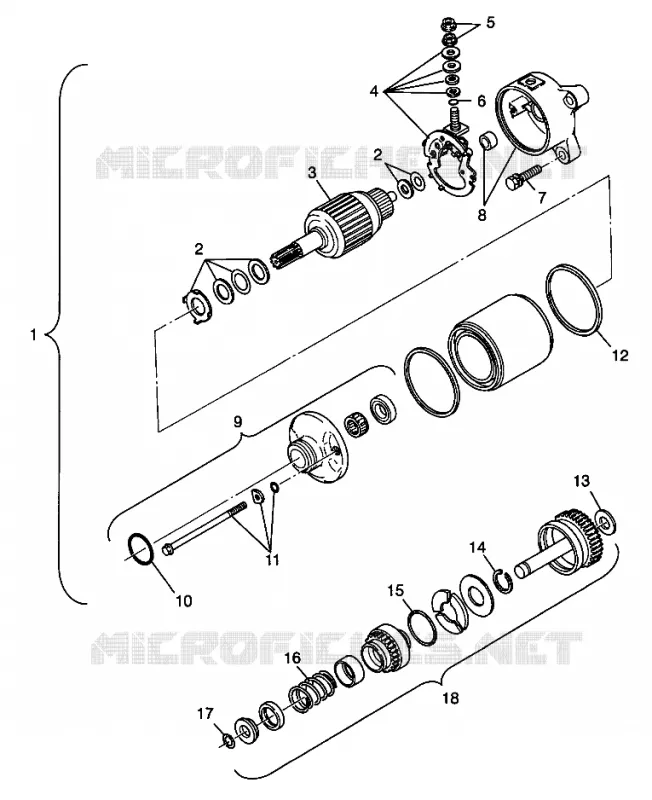

Find the detailed STARTING MOTOR SPORTSMAN 500 W98CH50A AND W98CH50AB (4945714571E002) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
