1
Engine displacement
700
2
Year
2006
3
Trim
700 / 900 FUSION F/O
4
Parts Catalog
REAR TORQUE ARM (M-10)
5
Parts Diagram
Parts Catalog
REAR TORQUE ARM (IQ)
by
ELECTRICAL

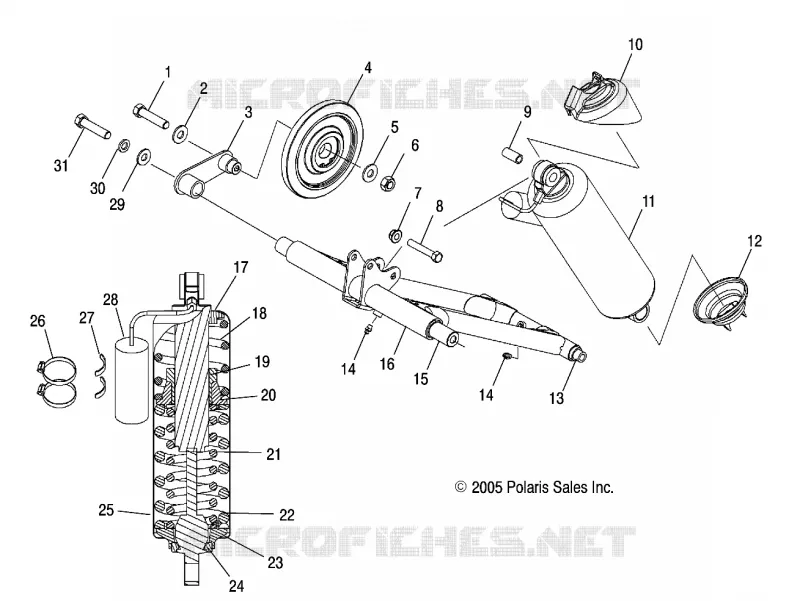

REAR TORQUE ARM (M-10)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
2
3
4
4
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
BOLT
7515485
9999999
Not Available
2
WASHER .385 X 88 X .075
7556242
$4,19 Unit Price incl. VAT
3
WELD-CARRIER WHEEL BRKTBLK
1542219067
Not Available
4
BEARING
3514303
$20,99 Unit Price incl. VAT
4
RETAINING RING
7718407
$9,44 Unit Price incl. VAT
4
CARRIER WHEEL ASSEMBLY
1590343
$141,74 Unit Price incl. VAT
5
WASHER .391X1.25X.105-M
7556157
9999999
Not Available
6
NYLOK NUT
7542451
$2,09 Unit Price incl. VAT
7
NYLOK NUT
7547263
$6,29 Unit Price incl. VAT
8
SCREW
7515415
9999999
Not Available
9
SLEEVE .385 X .560 X 1.24
5333905
$27,29 Unit Price incl. VAT
10
CAP-SHOCK ENDM10TOP
5436400
9999999
Not Available
11
SHOCK-R/T M-10
7043190
9990000
Not Available
12
CAP-SHOCK ENDM10BOTTOM
5436401
9999999
Not Available
13
SHAFT; LOWER
5133093
9999999
Not Available
14
LUBRICATION FITTING
7080424
$9,44 Unit Price incl. VAT
15
SHAFT-RTA M10 UPPER
5135277
9999999
Not Available
16
RTA M10 BLK
1542124067
Not Available
17
RETAINER-SPRING M10 RTS UPPER
5134921
9999999
Not Available
18
SPRING-COM .375R 5.20 273# BLK
7042207067
Not Available
19
BUSHING-OVERLOAD M10 RTS
5436109
9999999
Not Available
20
RETAINER-SPR M10 RTS MID .25
5135077
9999999
Not Available
21
SPRING-COM .394R 5.46 629# BLK
7042206067
Not Available
22
SPRING-COM .515R 6.40 715# BLK
7042208067
Not Available
23
RETAINER-SPRING M10 RTS LOWER
5134780
9999999
Not Available
24
COLLAR-SPRING SLOTTED
5133778
9999999
Not Available
25
COVER-SPRING NYLON M10 RTS
2683659
9999999
Not Available
26
CLAMP-HOSE 1-2DIA 5/16 WIDE SS
7081261
9999999
Not Available
27
PAD-RUBBER ADHESIVE 3/8X1-5/8
5812812
9999999
Not Available
28
DECAL-M-10 FOX RES
7173566
9999999
Not Available
29
FLAT WASHER
7555984
$4,19 Unit Price incl. VAT
30
LOCK WASHER
7552614
$3,14 Unit Price incl. VAT
31
SCR-7/16-14X2.00 HXCP-P80-GR5Y
7518261
$7,34 Unit Price incl. VAT

Find the detailed REAR TORQUE ARM (M-10) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
