DRIVE TRAIN, REAR GEARCASE MOUNTING

1

ASM-GEARCASE REAR DIFF 3.07

1337092

$4 866,74 Unit Price incl. VAT

2

SCR-HXFL-M12X1.75X65 10.9 ZFB

752133465

Not Available

3

SCR-HXFL-M12X1.75X195 10.9 ZFB

7521334195

Not Available

4

NUT-HXFL-M12X1.75 8 ZTB NYL

7548030

$6,29 Unit Price incl. VAT

5

O-RING 28.17X3.53 VITON 60A

5418014

$9,44 Unit Price incl. VAT

6

YOKE-PSHAFT;25 TOOTH;1310

1337353

$173,24 Unit Price incl. VAT

7

WSHR-21.4X39X3.4 SPC

7557169

$14,69 Unit Price incl. VAT

8

NUT-HEX M20X1.5 ZPC

7547960

$7,34 Unit Price incl. VAT

9

STRAP-UJOINT 1310 SERIES

5268107

$9,44 Unit Price incl. VAT

9

STRAP-UJOINT 25 SERIES

5274860

$9,44 Unit Price incl. VAT

10

SCR-SH-M6X1.0 X 20 12.9 SPC

7520866

$9,44 Unit Price incl. VAT

11

SCR-HXFL-M12X1.75X80 10.9 ZFB

752133480

Not Available

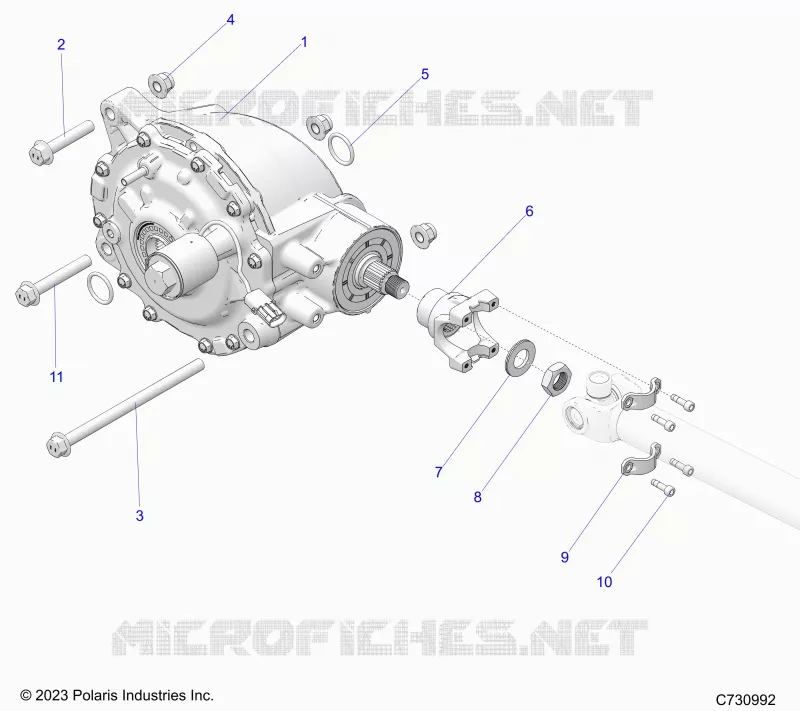

Find the detailed DRIVE TRAIN, REAR GEARCASE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
