Engine displacement
900
2
Year
2013
3
Trim
RZR 4 XP JAGGED X - R13XT9EAL
4
Parts Catalog
BRAKE LINES AND MASTER CYLINDER
5
Parts Diagram
Parts Catalog
SEAT, MOUNTING AND BELTS
by
CHASSIS, MAIN FRAME AND SKID PLATE
BRAKE LINES AND MASTER CYLINDER
1
LINE-BRAKE RL TR
1911605
$152,24 Unit Price incl. VAT
2
BRAKE LINE; REAR; TRAIL
1911604
$188,99 Unit Price incl. VAT
3
LINE-BRAKE MASTER TO REAR
1911705
$173,24 Unit Price incl. VAT
4
TANDEM MASTER CYLINDER ASSEMBLY
1911982
$246,74 Unit Price incl. VAT
5
BRAKE LINE
1911607
$152,24 Unit Price incl. VAT
6
BRAKE LINE; FRONT; TRAIL
1911606
$152,24 Unit Price incl. VAT
7
BANJO BOLT; 10 MM X 1.25-6G
1910958
$14,69 Unit Price incl. VAT
8
BANJO BOLT; 10 MM X 1.00
1910499
$10,49 Unit Price incl. VAT
9
BRAKE PRESSURE SWITCH; 10 MM X 1.25 MM
4012981
$89,24 Unit Price incl. VAT
10
SEAL
5413212
9999999
Not Available
11
TEE FITTING BRAKE
7052293
$110,24 Unit Price incl. VAT
12
CLIP-ROUTING BRAKE
5438787
$13,64 Unit Price incl. VAT
13
CLIP
7670102
$4,19 Unit Price incl. VAT
14
BRAKE LINE RETAINER; 1 IN
5439192
$3,14 Unit Price incl. VAT
15
POP RIVET
7621323
$2,09 Unit Price incl. VAT
16
SCREW
7512025
$9,44 Unit Price incl. VAT
17
SCREW
7512084
$2,09 Unit Price incl. VAT
18
CLAMP-HOSE .625 DIA VNL COATED
7080880
$10,49 Unit Price incl. VAT

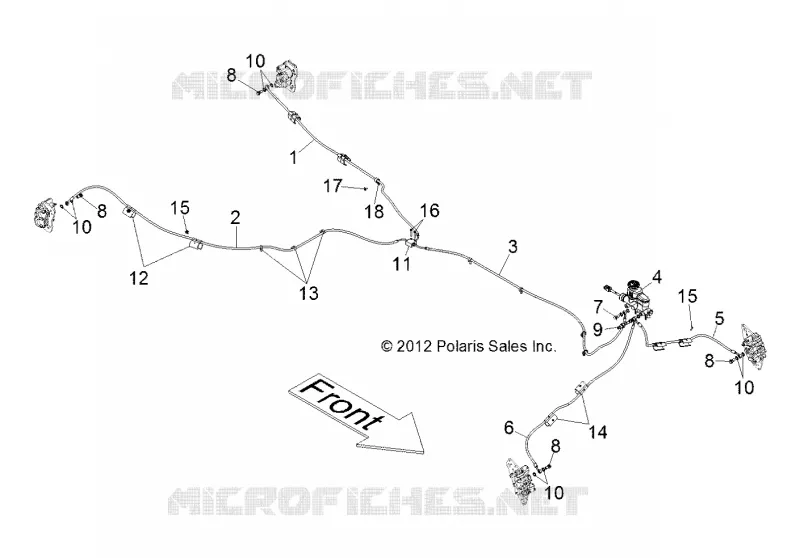

Find the detailed BRAKE LINES AND MASTER CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
