Parts Catalog
BRAKES, VALVE SYSTEM
5
Parts Diagram
Parts Catalog
TAILGATE BRACKETS
by
DRIVE TRAIN, FRONT DRIVE SHAFT
BRAKES, VALVE SYSTEM
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
1
BOLT-BANJO 10MMX1.25 W/BLEEDER
1911112
9999999
Not Available
2
BANJO DOUBLE BOLT; 10 MM X 1.25 MM
1911194
$41,99 Unit Price incl. VAT
3
SEAL
5413212
9999999
Not Available
4
LINE-BRK HBDB 28 45B 20B 330
1912207
9999999
Not Available
5
LINE-BRK REAR AUXT 70R 70B 70B
1912197
Not Available
6
LINE-BRK REAR SV T 90F 45B 45B
1912198
Not Available
7
REDUCING BRAKE VALVE
1911109
$278,24 Unit Price incl. VAT
8
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
9
LINE-BRAKE; J/B TO P/VALVE;NPT
1911200
9999999
Not Available
10
PLATE-BRAKE VALVE;E-COAT
5258389329
Not Available
11
SCREW
7512126
$9,44 Unit Price incl. VAT
12
BOLT
7512130
$7,34 Unit Price incl. VAT
13
SEALED BRAKE SWITCH; 10 MM X 1.25 MM
4014262
4081264
$153,29 Unit Price incl. VAT
14
BANJO BOLT; 10 MM X 1.25-6G
1910958
$14,69 Unit Price incl. VAT
15
BOLT
7517451
$10,49 Unit Price incl. VAT
16
LINE-BRK FR 36.5 20SB 45B 135
1912208
Not Available
17
LINE-BRAKE FTDB62 45B 45B 315
1912196
Not Available
18
BLOCK-DIST BRAKE LONG PISTON
1911185
1913923
$125,99 Unit Price incl. VAT
19
LINE-BRK FL 26 20B 45B 0
1912320
Not Available

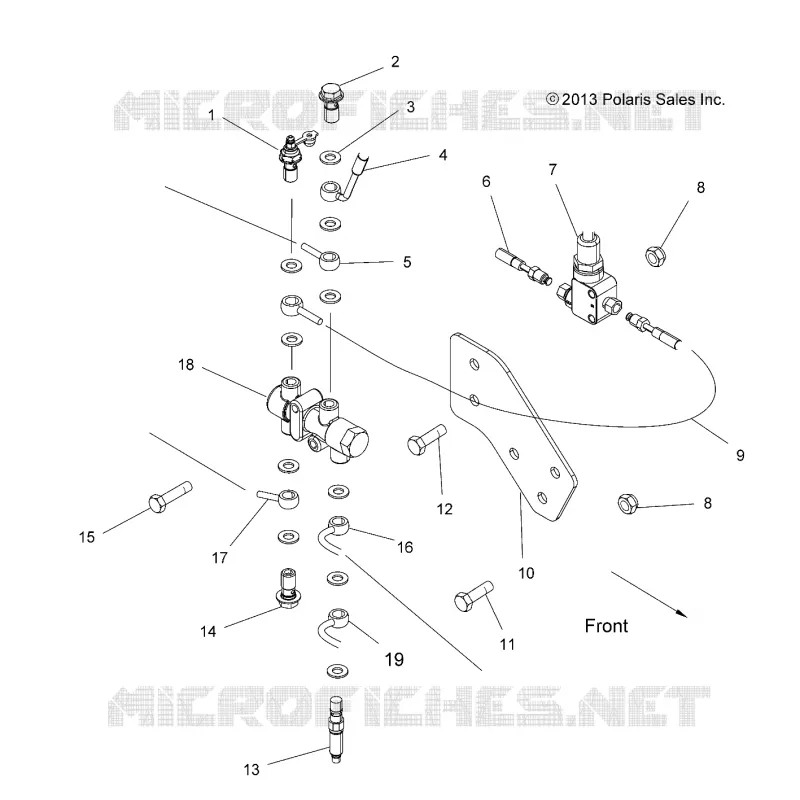

Find the detailed BRAKES, VALVE SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
