CHASSIS, CHASSIS ASM. AND OVER STRUCTURE for POLARIS 650 MATRYX VOYAGEUR 146 from 2022

SUSPENSION, FRONT TORQUE ARM

CHASSIS, BULKHEAD ASM.

CHASSIS, CHASSIS ASM. AND OVER STRUCTURE

1

ASM-FRAME TUBULAR FRONT ALUM

1024164

$241,49 Unit Price incl. VAT

2

RIVET 4.8 MM

7661973

$2,09 Unit Price incl. VAT

3

SCR-HXFL-M6X1X60 10.9 ZOD P30

7520723

$7,34 Unit Price incl. VAT

4

CAST TUBE SHIM; 31.76 DIA

5633083

$12,59 Unit Price incl. VAT

5

CAST TUBE SPACER; 27.00; DIA

5633122

$16,79 Unit Price incl. VAT

6

ASM-TUBE FRAME REAR

1025156

$1 238,99 Unit Price incl. VAT

7

ASM-REGULATOR MOUNT

1024479

$68,24 Unit Price incl. VAT

8

WELD-CROSS BRACE BLK

1026865

1027787

$120,74 Unit Price incl. VAT

9

CL8.8 OLV-D

7518906

$6,29 Unit Price incl. VAT

10

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

11

BRACE TUBE; LEFT; BLACK

5337391329

Not Available

12

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$11,54 Unit Price incl. VAT

13

ASM-STUD PLATE 5MM

1023672

$23,09 Unit Price incl. VAT

14

WSHR-FL 5.5X1.0

7556071

$9,44 Unit Price incl. VAT

15

NYLOK NUT

7546601

$2,09 Unit Price incl. VAT

16

ASM-CHASSIS 650/850 146 BLK

1026716067

Not Available

16

ASM-TUNNEL 650/850 146 BLK

1026717067

Not Available

17

PAD-2.5 X2.5

5814187

$8,39 Unit Price incl. VAT

18

CLAMP-CABLE NYLON 5/16

7080960

9999999

Not Available

19

RIVET-4.8MM DIA-1.5-6.0GRIP(4)

7662251

$3,66 Unit Price incl. VAT

20

PAD; 40 X 63.5

5814353

$18,89 Unit Price incl. VAT

21

MOUNT-LOAD CENTER

5454789

$18,89 Unit Price incl. VAT

22

BRKT-LOAD CENTER

5265340

$9,44 Unit Price incl. VAT

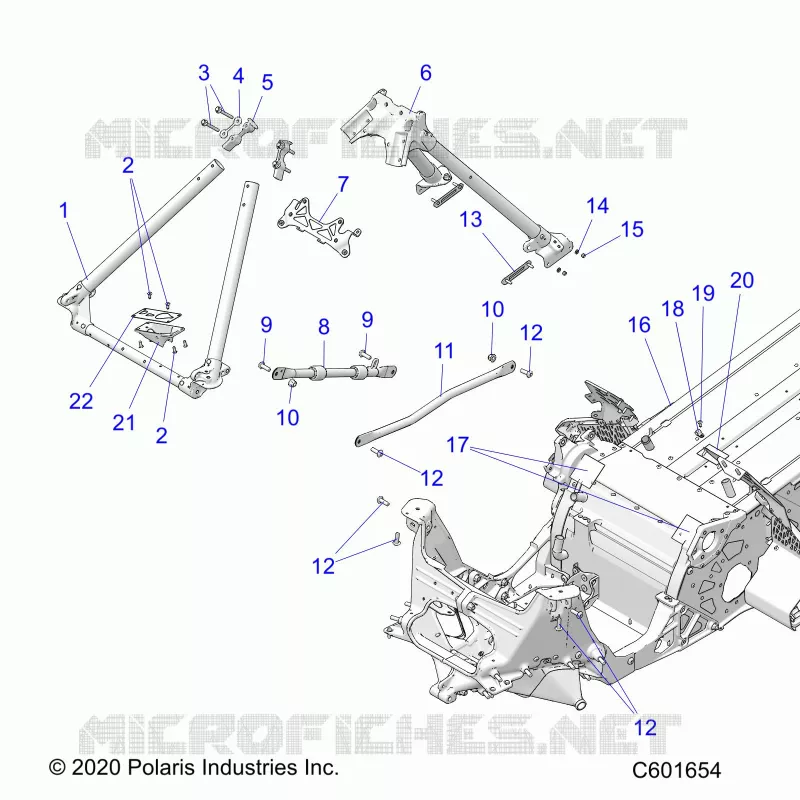

Find the detailed CHASSIS, CHASSIS ASM. AND OVER STRUCTURE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
