1
Engine displacement
500
2
Year
2010
3
Trim
SCRAMBLER 500 4X4 INTL - A10NG50FA
4
Parts Catalog
COOLING SYSTEM
5
Parts Diagram
Parts Catalog
SWITCHES AND SENSORS AND CONTROL MODULES
by
CRANKCASE
COOLING SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
28
29
30
31
32
1
2
3
4
5
6
6
7
8
9
9
10
11
1
SCREW
7517298
9999999
Not Available
2
FAN AND MOTOR ASSEMBLY
1240505
9999999
Not Available
3
SPEED NUT
7670057
$2,09 Unit Price incl. VAT
4
SHROUD-FAN
5438098
9999999
Not Available
5
GASKET
5810279
$4,19 Unit Price incl. VAT
6
OVERFLOW BOTTLE WITH FITTING CAP
5437635
$9,44 Unit Price incl. VAT
7
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
8
SURGE TANK
5433410
9999999
Not Available
9
SCR-10-24X1 PN TRX TFS STL-Y
7518552
$7,34 Unit Price incl. VAT
10
FITTING 90 DEGREE
7052065
$13,64 Unit Price incl. VAT
11
FUEL LINE; 1/4 ID
84500031525
Not Available
12
WASHER
7555792
$9,44 Unit Price incl. VAT
13
SPACER
7556091
$7,34 Unit Price incl. VAT
14
GROMMET AND INSERT ASSEMBLY
5413155
$7,34 Unit Price incl. VAT
15
RADIATOR BRACKET LOWER BLACK
5253328329
Not Available
16
CLAMP HOSE 1.25 WORM DRIVE
7080696
$10,49 Unit Price incl. VAT
17
UPPER ENGINE HOSE
5413732
9999999
Not Available
18
BRKT-RADIATOR UPPER
5253329
9999999
Not Available
19
CLAMP SPRINGBAND 29/12 BLK
7080842
$13,64 Unit Price incl. VAT
20
PRESSURE CAP
1240300
$73,49 Unit Price incl. VAT
21
RADIATOR
1240463
9999999
Not Available
22
CLAMP HOSE 1.375 VNL ECOATED
7080908
9999999
Not Available
23
BOLT-CARRIAGE
7512275
9999999
Not Available
24
BOLT
7512232
$2,09 Unit Price incl. VAT
25
RADIATOR MOUNT BUSHING; LOWER
5410584
$10,49 Unit Price incl. VAT
26
SCREW
7517386
$2,09 Unit Price incl. VAT
27
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
28
TUBING-CONVOLD HITEMP 45CM
552173145
Not Available
29
HOSE-LOWER ENGINE
5413733
9999999
Not Available
30
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
31
FLAT WASHER
7555859
$2,09 Unit Price incl. VAT
32
NYLOK FLANGED NUT
7542153
$3,14 Unit Price incl. VAT

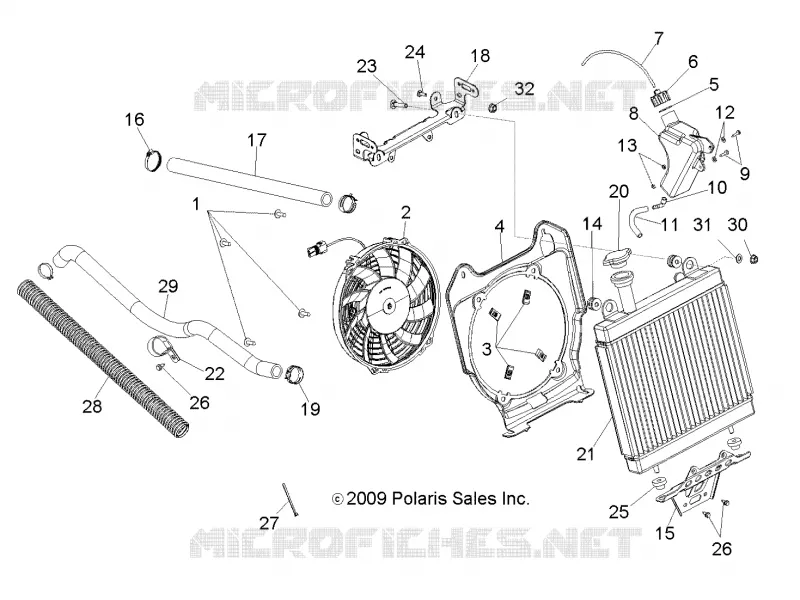

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
