FRONT SUSPENSION CONTROL ARMS for POLARIS RZR 1000 60 INCH EU / TRACTOR / ZUG from 2019

FRONT SUSPENSION CARRIER

FRONT SUSPENSION SHOCK INTERNALS

FRONT SUSPENSION CONTROL ARMS

1

WELD-CTRL ARM;LWR;FRT;LH;60;BL

1021416458

Not Available

2

WELD-CTRL ARM;LWR;FRT;RH;60;BL

1021417458

Not Available

3

CONTROL ARM; FRONT; UPPER; LEFT; MT BLK

1023223458

Not Available

4

CONTROL ARM; FRONT; UPPER; RIGHT; MT BLK

1023224458

Not Available

5

SEALED PIVOT CAP ASSEMBLY; 10 MM

1543611

$10,49 Unit Price incl. VAT

6

SHORT PIVOT SHAFT

5139966

5144658

$10,49 Unit Price incl. VAT

7

STANDARD SUSPENSION BUSHING; 10 MM

5452233

$5,24 Unit Price incl. VAT

8

SCREW M10 X 1.25-6G

7519043

$17,84 Unit Price incl. VAT

9

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

10

WASHER

7556153

$3,66 Unit Price incl. VAT

11

SEAL PIVOT CAP ASSEMBLY; 10 MM

1543735

$26,24 Unit Price incl. VAT

12

HEX FLANGE SCREW 10 MM X 1.25 MM X 55 MM

7519285

$4,19 Unit Price incl. VAT

13

SPIRAL RING; 28 MM; STEEL

7710845

$6,81 Unit Price incl. VAT

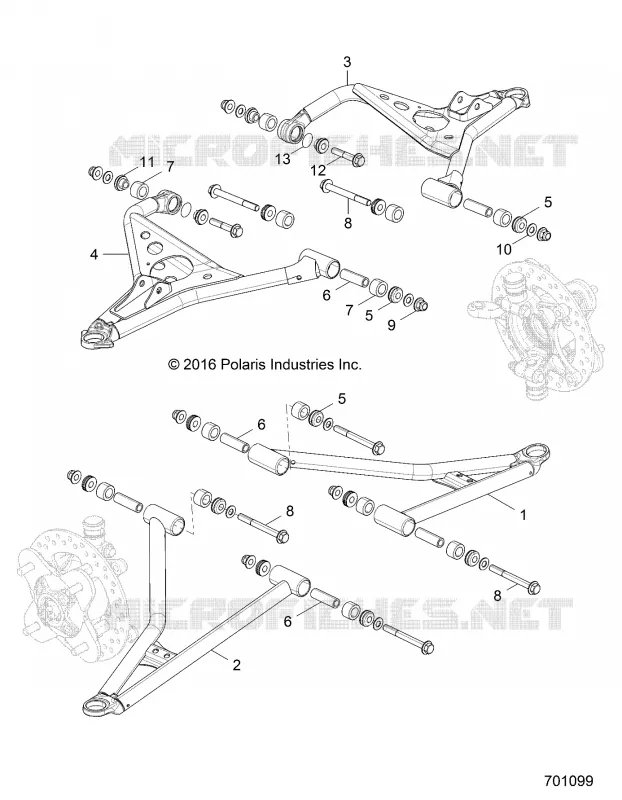

Find the detailed FRONT SUSPENSION CONTROL ARMS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
