1
Engine displacement
autre
2
Year
1995
3
Trim
SPORTSMAN 4X4 - W958040
4
Parts Catalog
COOLING SYSTEM SPORTSMAN 4X4 W958040 (4930403040A011)
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING SPORTSMAN 4X4 W958040 (4930403040A010)
by
AIR BOX SPORTSMAN 4X4 W958040 (4930403040B002)
COOLING SYSTEM SPORTSMAN 4X4 W958040 (4930403040A011)
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
19
19
19
20
21
22
23
24
25
26
27
28
29
30
31
1
CLAMP-HOSE
7080225
9999999
Not Available
2
ENGINE HOSE; UPPER
5410570
9999999
Not Available
3
SWITCHRADIATOR THERMO.
4110099
9999999
Not Available
4
DECAL(CPSC) RAD.CAP
7073068
Not Available
5
CAP; RADIATOR
2511189
9999999
Not Available
6
HOSE LOWER ENGINE
5410572
9999999
Not Available
7
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
8
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
9
MOUNT; RUBBER
3110032
9999999
Not Available
10
MOUNT SPACER
5020572
9999999
Not Available
11
WASHER
7552605
9999999
Not Available
12
BOLT
7512113
$7,34 Unit Price incl. VAT
13
RADIATOR
1240006
9999999
Not Available
14
CARRIAGE BOLT
7512193
$4,19 Unit Price incl. VAT
15
COVER RADIATOR W/MESH
5431610
Not Available
16
GUARD LOW.RADIATOR
5222547067
Not Available
17
CLIP PLASTIC DART(10)
7670078
$6,29 Unit Price incl. VAT
18
O-RING
5410607
9999999
Not Available
19
SHIELD RH RADIATOR
5431189
Not Available
19
SHIELD LH RADIATOR
5431188
Not Available
20
RADIATOR MOUNT BUSHING; LOWER
5410584
$10,49 Unit Price incl. VAT
21
NUT
3083952
Not Available
22
BLADE; FAN
5431262
9999999
Not Available
23
BUSHING
3083950
9999999
Not Available
24
NUT
7541915
9999999
Not Available
25
BOLT
7512232
$2,09 Unit Price incl. VAT
26
BRKT COOLING FAN
5222559067
Not Available
27
COVER
3083951
9999999
Not Available
28
SPACER; FAN BRKT.
5333073
9999999
Not Available
29
MOTOR FAN
3084266
9999999
Not Available
30
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
31
SCREW
7511874
9999999
Not Available

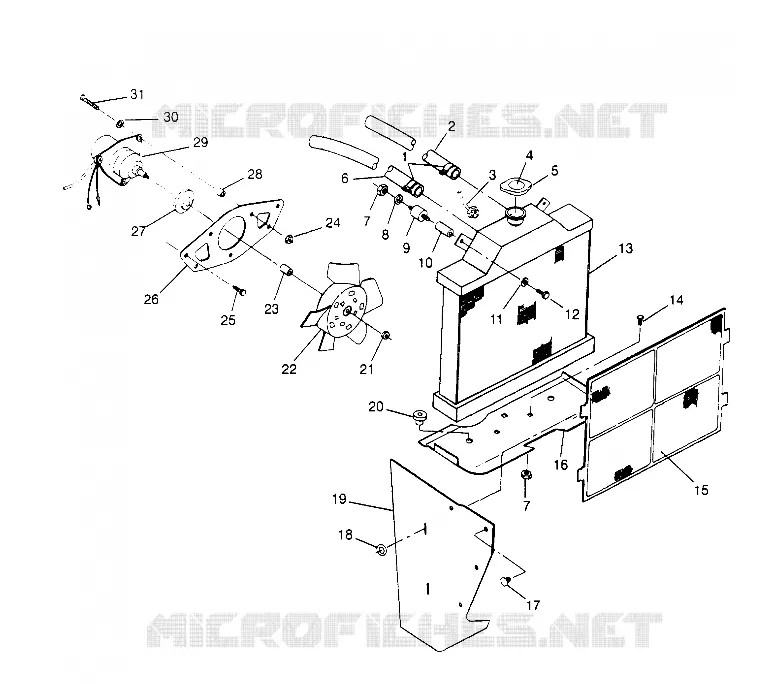

Find the detailed COOLING SYSTEM SPORTSMAN 4X4 W958040 (4930403040A011) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
