DRIVE SHAFT WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B012)
5
Parts Diagram
Parts Catalog
BRAKE WIDETRAK LX 0972064 AND EUROPEAN WIDETRAK LX E972064 (4938223822B011)
by
BATTERY BOX WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B013)
DRIVE SHAFT WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B012)
1
RING RETAINING
7713401
7710436
$9,44 Unit Price incl. VAT
2
BUSHING MACHINED
7555922
$11,54 Unit Price incl. VAT
3
DISC BRAKE ASM.
1910217
9999999
Not Available
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
BOLT
7517291
$23,09 Unit Price incl. VAT
6
O-RING
5410630
9999999
Not Available
7
COUPLER ASM19TW/GREASE ZERK
1332198
1332260
$325,49 Unit Price incl. VAT
7
GREASE ZERK
7080437
9999999
Not Available
8
COLLAR SHAFT
7010038
Not Available
9
JACKSHAFT 19T BLK (W.T.)
6230124067
Not Available
10
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
11
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
12
FLANGETTE
5222393
5270869
$36,74 Unit Price incl. VAT
13
BEARING 1 IN.(GREASEABLE)
3514511
Not Available
14
FLANGETTE; GREASABLE
5222647
$47,24 Unit Price incl. VAT
15
BOLT
7512394
7512377
$9,44 Unit Price incl. VAT
16
BUSHING
7556509
$3,14 Unit Price incl. VAT
17
KEY-SQUARE
7721204
9999999
Not Available
18
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
19
SPACER INLET SHAFT
5431482
9999999
Not Available
20
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
21
WASHER; SPRING
7571626
9999999
Not Available
22
BOLT
7515502
9999999
Not Available
23
DRIVE BELT
3211070
$147,51 Unit Price incl. VAT
24
ADAPTER DRIVE W/ZERK
3280116
3280540
$188,99 Unit Price incl. VAT
25
GASKET DRIVE ADAPTOR
5830012
$4,19 Unit Price incl. VAT
26
SPEEDOMETER SQUARE KEY
3280017
9999999
Not Available
27
FLANGETTE
5241178
9999999
Not Available
28
BEARING LUBE.
3514526
3514525
$54,59 Unit Price incl. VAT
29
FLANGETTE ASM;;W/ SCREWS
1012434
9999999
Not Available
30
SPEEDO METAL BUSHING
3280019
$20,99 Unit Price incl. VAT
31
DRIVESHAFT ASMPRESS BRGWIDE
1590255
1590450
$939,74 Unit Price incl. VAT
32
BOLT
7517292
$36,74 Unit Price incl. VAT
33
SHIM
5211065
9999999
Not Available
33
SPACER-.063 (10)
5210759
$6,29 Unit Price incl. VAT
33
SPACER-.080 (10)
5210760
9999999
Not Available
33
SPACER; .020
5210764
9999999
Not Available
34
BOLT
7515474
9999999
Not Available
35
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT

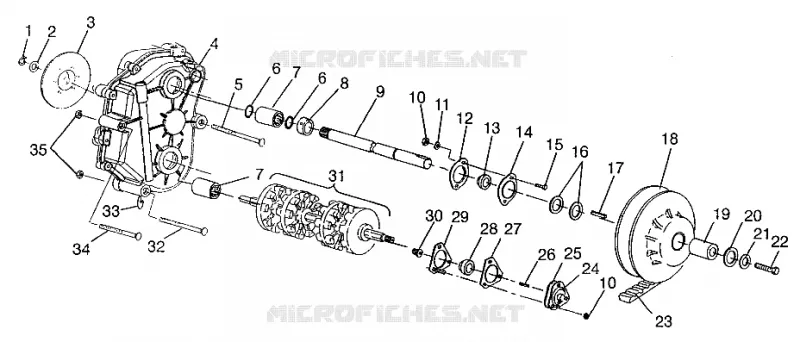

Find the detailed DRIVE SHAFT WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B012) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
