1
Engine displacement
600
2
Year
2002
3
Trim
600 RMK 136 BUILT AFTER 3/1/01
4
Parts Catalog
FRONT SUSPENSION
5
Parts Diagram
Parts Catalog
COOLING SYSTEM
by
SUSPENSION
FRONT SUSPENSION
18
19
20
21
22
23
24
25
26
27
28
29
30
18
19
20
21
22
23
24
25
26
27
28
29
30
18
19
20
21
22
23
24
25
26
27
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
42
43
44
45
46
47
48
1
BOLT-7/16-20X3.00 HXCAP GR5-Y
7517980
$12,59 Unit Price incl. VAT
2
RADIUS ROD END LEFT 7/16
7061081
9999999
Not Available
3
NYLOK NUT; 7-16-20
7547066
$3,14 Unit Price incl. VAT
4
NUT LH
7547117
9999999
Not Available
5
TUBE-RADIUS ROD UPPER
5133137
9999999
Not Available
6
NUT JAM(10)
7542520
9999999
Not Available
7
ROD END RADIUS; 7/16
7061061
$99,74 Unit Price incl. VAT
8
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
9
FLANGE BUSHING
3573909
$4,19 Unit Price incl. VAT
10
FLAT WASHER
7555797
$7,34 Unit Price incl. VAT
11
WASHER
7555832
$4,19 Unit Price incl. VAT
12
ROD-END 3/8;50 ;1.00;RH
7061086
9999999
Not Available
13
ARM-STEERING MACHINED
5133060
9999999
Not Available
14
SCR-3/8-24X2 HX/CP GR5-Y-SP
7517583
$7,34 Unit Price incl. VAT
15
SCREW
7515433
$3,14 Unit Price incl. VAT
16
RETAINER SPRING SLOTTED CAST
5630580
5020618
$36,74 Unit Price incl. VAT
17
SCREW
7515415
9999999
Not Available
18
SPRING-COMP IFS 10.75/100 BLK
7041551067
Not Available
19
SHOCK-IFS NITREX EDGE RMK
7042107
9999999
Not Available
20
ADJUSTABLE PRELOAD SPRING RING
5431734
$104,99 Unit Price incl. VAT
21
RETAINER SPRING BODY THREADED
1500063
9999999
Not Available
22
FLAT WASHER
7555820
$7,34 Unit Price incl. VAT
23
TRAILING ARM MOUNT CUP
5132364
9999999
Not Available
24
SPHERICAL BEARING; PLASTIC
7061042
$54,59 Unit Price incl. VAT
25
RETAINING RING
7710437
$5,76 Unit Price incl. VAT
26
SCREW
7512099
9999999
Not Available
27
TRAILING ARM ASSEMBLY; LEFT; INDY RED
1821201293
Not Available
27
TRAILING ARM ASSEMBLY RIGHT INDY RED
1821202293
Not Available
28
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
29
TORSION BAR BUSHING 9/16 IN
5433814
9999999
Not Available
30
RIVET
7621452
9999999
Not Available
31
BAR-TORSION 9/16 EDGE RMK BLK
5245217067
Not Available
32
SLIDE-TORSION BAR9/16
5433885
9999999
Not Available
33
BUSHING
7556509
$3,14 Unit Price incl. VAT
34
FLANGED BUSHING
3574208
$6,29 Unit Price incl. VAT
35
SPINDLE SHAFT WITH STEER STOP
6230225067
Not Available
36
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
37
BUSHING PIVOT
5010158
$27,29 Unit Price incl. VAT
38
ROD END; LOWER; RIGHT
7061052
$99,74 Unit Price incl. VAT
39
WASHER-.505X1.00X.062 HH-Y
7556213
9999999
Not Available
40
BOLT-1/2-20X2 HXCAP GR5-Y
7517906
9999999
Not Available
41
NUT-JAM(10)
7542711
$4,19 Unit Price incl. VAT
42
NUT-1/2-20 NYLOK Y
7547065
$7,34 Unit Price incl. VAT
43
WASHER
7556153
$3,66 Unit Price incl. VAT
44
RADIUS ROD TUBE; LOWER
5132953
9999999
Not Available
45
NUT JAM; LEFT
7547028
$4,19 Unit Price incl. VAT
46
RADIUS END ROD; LOWER; LEFT
7061087
9999999
Not Available
47
BUSHING SPACER
5132454
9999999
Not Available
48
BOLT-1/2-20X4.00 HXCAP GR8-Y
7517981
9999999
Not Available

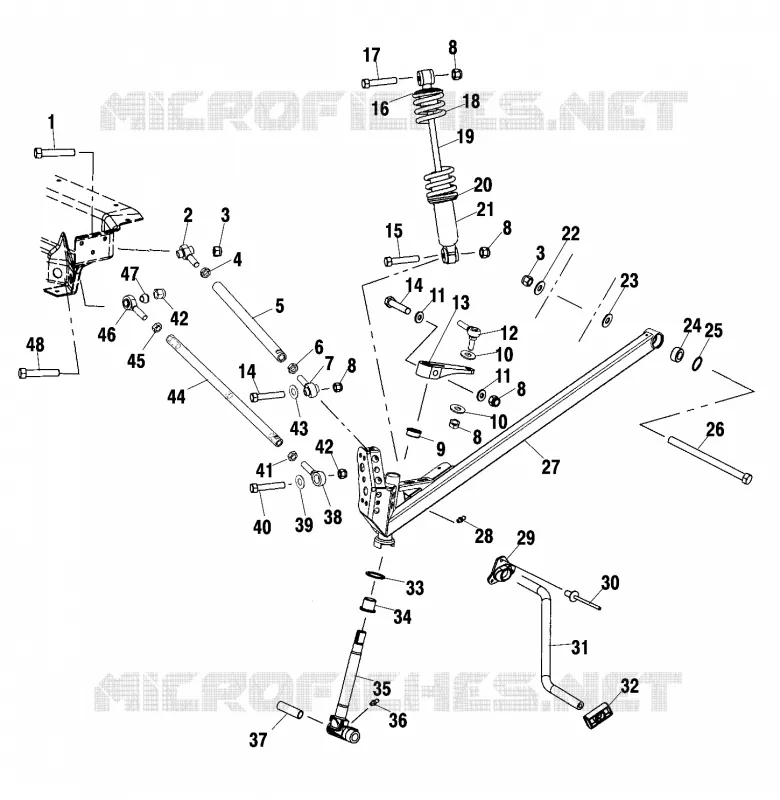

Find the detailed FRONT SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
