ELECTRICAL, DASH COMPONENTS, RIDE COMMAND for POLARIS RANGER XP KINETIC ULTIMATE from 2024

ELECTRICAL, DASH INSTRUMENTS

ELECTRICAL, CONVERTER

ELECTRICAL, DASH COMPONENTS, RIDE COMMAND

1

HARNESS USB RC

2415498

$120,74 Unit Price incl. VAT

2

SPEAKER HARNESS; DASH; RC

2414481

$68,24 Unit Price incl. VAT

3

HARN-RIDE COMMAND

2416801

$325,49 Unit Price incl. VAT

4

SPEAKER ASSEMBLY; DASH; ; LEFT

2637398

$241,49 Unit Price incl. VAT

5

SPEAKER ASSEMBLY; DASH; ; RIGHT

2637399

$241,49 Unit Price incl. VAT

6

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

7

ANTENNA AM-FM

2417141

$204,74 Unit Price incl. VAT

8

NUT-M5X0.8 8.8 HX/FL NYLOC

7547427

$6,29 Unit Price incl. VAT

9

ANTENNA GPS V2V

4019300

4083353

$178,49 Unit Price incl. VAT

10

4-CHANNE AMP ASSEMBLY

2414533

9999999

Not Available

11

CAM-IR ILLUMINATED;AMB SENSE

4019856

4081064

$367,49 Unit Price incl. VAT

12

CAMERA MOUNT BRACKET; REAR; BLACK

5265002329

Not Available

13

BRKT-AMP MOUNT;BLK

5273400329

Not Available

14

EDGE CLIP; 1 MM - 3 MM

7082403

$9,44 Unit Price incl. VAT

15

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

16

HARNESS CLIP EDGE

7081890

$19,94 Unit Price incl. VAT

17

CLIP-FIR TREE;9.7-10.0MM HOLE

7082414

$7,34 Unit Price incl. VAT

18

SCREW

7516607

$19,94 Unit Price incl. VAT

19

ASM-DISPLAY DIG P7 PRG 500K

3286918

3286949

$3 023,99 Unit Price incl. VAT

20

BRKT-7 DISPLAY;RC;BLK

5273092329

Not Available

21

SCR-TORX BTNHD;M6X12

7518330

$9,44 Unit Price incl. VAT

22

STUD-M6X1.0X19-M6 TAPTITE

7519333

$14,69 Unit Price incl. VAT

23

BOLT

7519650

$7,34 Unit Price incl. VAT

24

NYLOCK FLANGE NUT; 6 MM

7547274

7548027

$3,14 Unit Price incl. VAT

25

SCR-TXPH-#14X5/8 HI/LO CLR

7520803

$6,29 Unit Price incl. VAT

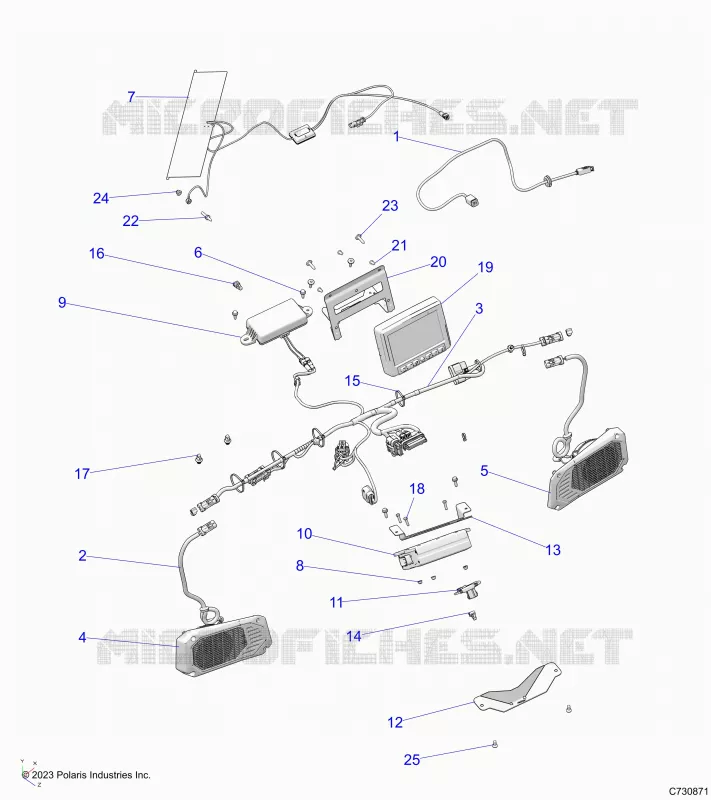

Find the detailed ELECTRICAL, DASH COMPONENTS, RIDE COMMAND POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
