1
Engine displacement
440
2
Year
1994
3
Trim
440 XCR - 0941760
4
Parts Catalog
FRONT SUSPENSION AND SKI 440 XCR 0941760 (4925182518011A)
5
Parts Diagram
Parts Catalog
HOOD ASSEMBLY 440 XCR 0941760 (4925182518005A)
by
TORSION BAR ASSEMBLY 440 XCR 0941760 (4925182518013A)
FRONT SUSPENSION AND SKI 440 XCR 0941760 (4925182518011A)
1
2
3
3
4
4
5
5
6
7
7
7
7
8
8
9
9
10
11
12
13
13
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
31
32
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
46
46
47
48
49
50
51
51
51
51
52
53
1
2
3
3
4
4
5
5
6
7
7
7
7
8
8
9
9
10
11
12
13
13
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
31
32
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
46
46
47
48
49
50
51
51
51
51
52
53
1
BOLT
7512551
9999999
Not Available
2
BOLT
7512656
9999999
Not Available
3
NUT; NYLOC
7542453
7542439
$2,09 Unit Price incl. VAT
4
BOLT(10)
7515515
9999999
Not Available
5
NUT; FLEXLOC B
7542456
9999999
Not Available
6
STEERING ARM
5220326067
Not Available
7
STOP STRNG RH BLK.
5220238067
Not Available
7
STOP STRNG LH BLK.
5220237067
Not Available
8
NUT; FLEXLOC
7542452
7542411
$6,29 Unit Price incl. VAT
9
WASHER
7555721
$2,09 Unit Price incl. VAT
10
TUBE TRAILING ARM
5010187
9999999
Not Available
11
PIVOT-TRAILING ARM
5410382
9999999
Not Available
12
BOLT
7512557
9999999
Not Available
13
ARM TRAILING RH
1822092067
Not Available
13
ARM TRAILING LH
1822091067
Not Available
14
FLANGE BUSHING
3573909
$4,19 Unit Price incl. VAT
15
BUSHING
7556509
$3,14 Unit Price incl. VAT
16
FLANGED BUSHING
3574208
$6,29 Unit Price incl. VAT
17
SPINDLE BLK HARDENED
6230075067
Not Available
18
STOP RUBBER
5521276
9999999
Not Available
19
SCREW
7515462
9999999
Not Available
20
SKAG PR.3 CARBIDE(STEEL SKI)
2870693
$99,74 Unit Price incl. VAT
21
SKI WELD BLK
1820332067
Not Available
22
NUT; CASTLE
7542457
7542438
$3,14 Unit Price incl. VAT
23
PIN; COTTER
7661209
7661205
$1,56 Unit Price incl. VAT
24
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
25
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
26
BUSHING PIVOT
5010158
$27,29 Unit Price incl. VAT
27
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
28
BOLT
7515492
7515540
$9,44 Unit Price incl. VAT
29
BOLT
7515491
7515433
$3,14 Unit Price incl. VAT
30
SUBSTITUTED BY 7512404
7515490
$7,34 Unit Price incl. VAT
31
WASHER
7555851
7555832
$4,19 Unit Price incl. VAT
32
BUSH; RADIUS ROD PIVOT; OUT
5431486
9999999
Not Available
33
RADIUS ROD BUSHING
5010127
$12,59 Unit Price incl. VAT
34
ROD RAD.LOW.(STORM)
1822102067
Not Available
35
ROD RAD.UPPER(STORM)
1822099067
Not Available
36
NUT JAM(10)
7542520
9999999
Not Available
37
ROD END; RH
7060155
9999999
Not Available
38
STRAP SPACER TOP
5211344
$13,64 Unit Price incl. VAT
39
NUT FLEXLOCK
7542503
9999999
Not Available
40
BRACE PAN
5223997067
Not Available
41
NUT FLEXOC;
7542703
9999999
Not Available
42
ROD END;RH
7060156
7061071
$99,74 Unit Price incl. VAT
43
NUT-JAM(10)
7542711
$4,19 Unit Price incl. VAT
44
STRAP SPACER BOTTOM
5211345
9999999
Not Available
45
BUSHING 1.16 IN
5020613
9999999
Not Available
46
BUSHING SHOCK .220
5431540
9999999
Not Available
47
SPRING RETAINER; SLOTTED
5020618
$36,74 Unit Price incl. VAT
48
SPRING (BLK.) IFS COMP.
7041252067
Not Available
49
RING RETAINING(10)
7710424
9999999
Not Available
50
RETAINER; SPRING BODY
5020617
9999999
Not Available
51
SHOCK GAS RH (IFS-IFP)
7041292
9999999
Not Available
51
SHOCK GAS LH (IFS-IFP) (SP)
7041291
Not Available
52
BUSHING SHOCK .400 (SP)
5431543
Not Available
53
BUSHING (1.34 IN.)
5020612
9999999
Not Available

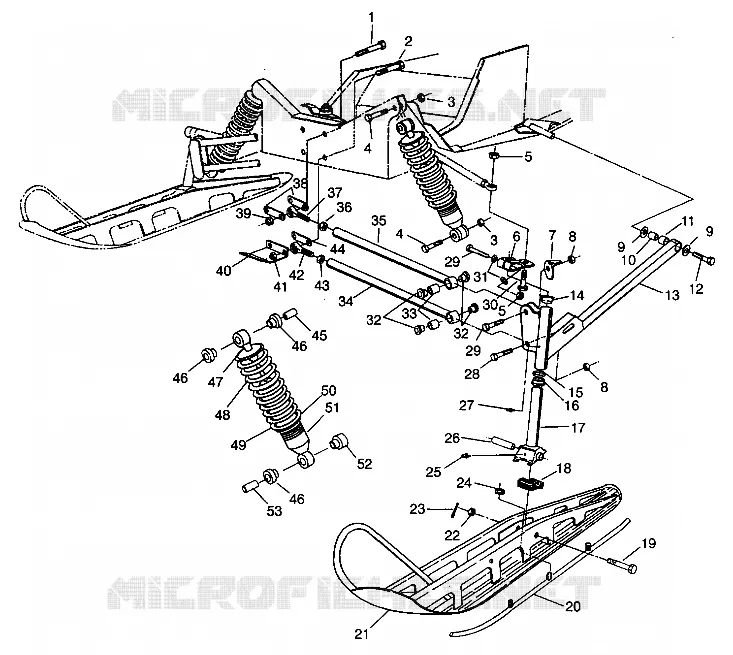

Find the detailed FRONT SUSPENSION AND SKI 440 XCR 0941760 (4925182518011A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
