TRAIL DELUXE - 0930243
4
Parts Catalog
TUNNEL ASSEMBLY TRAIL/0930761 (4923222322003A)
5
Parts Diagram
Parts Catalog
FUEL PUMP TRAIL DELUXE/0930243 (4923222322038A)
by
SEAT GAS TANK ASSEMBLY TRAIL / 0930761 AND TRAIL DELUXE / 0930243 (4923222322004A)
TUNNEL ASSEMBLY TRAIL/0930761 (4923222322003A)
1
DECAL TRACK SEAT(BLK.) [No Longer Available]
7073038
Not Available
2
FLAP SNOWSILVER
5410394
5410394-1038
$194,24 Unit Price incl. VAT
3
RIVET
7621418
$2,09 Unit Price incl. VAT
4
PANEL TUNNEL BACK Substituted by 5220478-067
5220478
Not Available
5
DECAL.R.BUMPER [No Longer Available]
7073576
Not Available
6
BUMPERREARBLK.
5224334067
Not Available
7
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
8
SCREW
7511863
9999999
Not Available
9
REFLECTOR RED
2670070
$15,95 Unit Price incl. VAT
10
CAP BUMPER
5430930
9999999
Not Available
11
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
12
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
13
BOLT
7512240
9999999
Not Available
14
RIVET
7661828
9999999
Not Available
15
DECAL R.TUNNELSTRIPE
7073775
Not Available
16
DECAL(47.5##)TUNNEL [No Longer Available]
7072078
Not Available
17
DECAL LH.TUNNEL [No Longer Available]
7073577
Not Available
17
DECAL RH.TUNNEL(TRAIL) [No Longer Available]
7073578
Not Available
18
BRKT RH R.SUSP.
1011858067
Not Available
18
BRKT LH R.SUSP
1011857067
Not Available
19
RIVET SEMI-TUBE (10)
7661812
9999999
Not Available
20
EXTRUSION CLUTCHGUARD
5521238
9999999
Not Available
21
RIVET; (MONOBOLT)
7661620
7661637
$2,09 Unit Price incl. VAT
22
FOOTREST ASM LH
1011890
Not Available
22
FOOTREST ASM RH
1011891
9999999
Not Available
23
RIVET(10)
7621222
9999999
Not Available
24
SNAP-MALE
7080227
9999999
Not Available
25
BRKT F.SUSP. BLK.
5211323067
Not Available
26
BRACE TUNNEL REINF.
5222412
Not Available
27
BULKHEAD (TRAIL)
1011894
Not Available
28
GUARD
5223789
Not Available
29
HOLE PLUG
7080416
$12,59 Unit Price incl. VAT
30
PLUG HOLE
7080398
$10,49 Unit Price incl. VAT
31
FLANGE NUT
7542321
$2,09 Unit Price incl. VAT
32
SCREW
7512307
$7,34 Unit Price incl. VAT
33
SUPPORTMUFFLERBLK.
1011831067
Not Available
34
RIVET
7621452
9999999
Not Available
35
BRKT GASTANK WELD.
1011733067
Not Available
36
RIVET(10)
7621301
9999999
Not Available
37
BRKT; TOOL BOX
5220973
9999999
Not Available
38
BRKT R.FUEL TANK BLK.
5222375067
Not Available
39
TUNNEL (93 TRAIL) (Incl. 4 29 37 38 & 50 )
1011896
Not Available

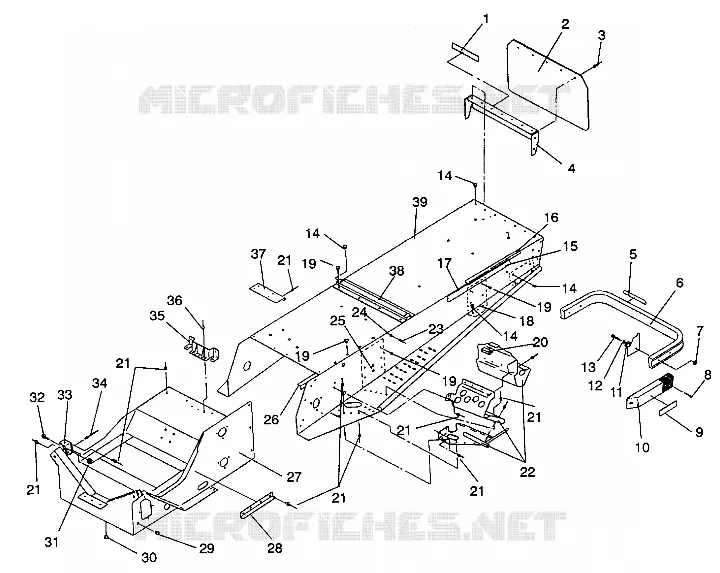

Find the detailed TUNNEL ASSEMBLY TRAIL/0930761 (4923222322003A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
