CHASSIS, FRAME AND FRONT BUMPER for POLARIS RANGER 4X4 800 EFI ALL OPTIONS - R10TH76/TY76 from 2010

CHASSIS, CAB FRAME

DRIVE TRAIN, CLUTCH COVER

CHASSIS, FRAME AND FRONT BUMPER

1

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518555

$4,19 Unit Price incl. VAT

2

WELD-CAB/SEAT BASEBLK

1017380067

Not Available

3

FLOOR SUPPORT WELD; RIGHT; BLACK

1016255329

Not Available

4

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

5

M10 X 1.25 X 60 SCREW

7518563

$5,76 Unit Price incl. VAT

6

FOAM-HOOD SUPPORT

5813421

9999999

Not Available

7

WELD-CAB SUPPORTFRTBLK

1017325067

Not Available

8

FLOOR SUPPORT WELD; LEFT; BLACK

1016254329

Not Available

9

WELD-MAIN FRAMEBLK

1017345067

Not Available

10

BOLT-M10X1.5X75 HX HD FLG

7518473

$9,44 Unit Price incl. VAT

11

BUMPER CAP

5434191

$12,59 Unit Price incl. VAT

12

FASCIA SCREEN; GLOSS BLACK

5438241070

Not Available

13

SCR-1/4-20X1/2 TR/TX/TAP/R B

7518981

$7,34 Unit Price incl. VAT

14

BUMPER SCREEN; UPPER; GLOSS BLACK

5438240070

Not Available

15

SCREW

7517281

$13,64 Unit Price incl. VAT

16

BUMPER GUARD BRACKET; GLOSS BLACK

5438181070

Not Available

17

FRONT BUMPER WELDMENT; BLACK ENGINE

1016310521

Not Available

18

HEX FLANGE NUT; 10 MM X 1.5 MM

7547313

$2,09 Unit Price incl. VAT

19

SCREW

7517685

$3,14 Unit Price incl. VAT

20

SCREW #14 X 1 HI/LO

7518158

$9,44 Unit Price incl. VAT

21

NUT-M8X1.25 HXFLG NYLON INS

7547317

7548028

$5,24 Unit Price incl. VAT

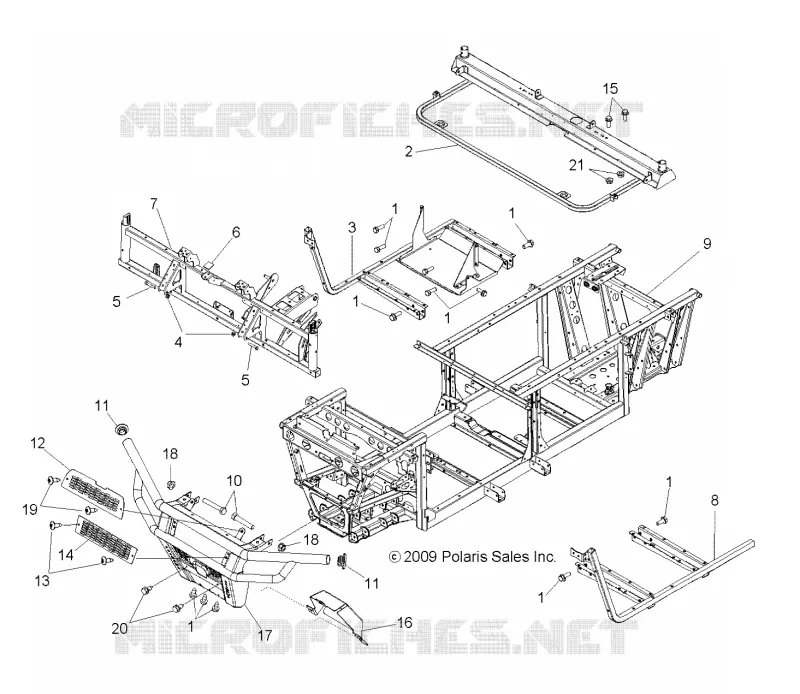

Find the detailed CHASSIS, FRAME AND FRONT BUMPER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
