Engine displacement
500
2
Year
2001
3
Trim
500 MAGNUM 500 HDS - A01CD50FB
4
Parts Catalog
ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
REAR RACK MOUNTING
by
FUEL TANK
ENGINE MOUNTING
1
2
3
4
4
5
5
5
5
6
11
8
8
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
21
21
21
21
21
21
22
23
24
25
26
27
28
11
30
31
32
33
34
35
36
11
11
39
40
41
42
43
44
45
11
47
48
11
50
51
1
2
3
4
4
5
5
5
5
6
11
8
8
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
21
21
21
21
21
21
22
23
24
25
26
27
28
11
30
31
32
33
34
35
36
11
11
39
40
41
42
43
44
45
11
47
48
11
50
51
1
STRAP-FUEL PUMPMTGBLK
5243829067
Not Available
2
SCREW 10-24X5/8 (10)
7517756
$2,09 Unit Price incl. VAT
3
NYLOK NUT
7546601
$2,09 Unit Price incl. VAT
4
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
5
FUEL LINE; 600 CM
8450040600
Not Available
6
SHEATH-FOIL LAMINATED;5/8X18CM
845008018
Not Available
7
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
8
FUEL LINE; 1/4 ID
84500031525
Not Available
9
FITTING TEE
7052075
$17,84 Unit Price incl. VAT
10
BRKT CARB.MT.
5240609067
Not Available
11
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
12
NUTSERT HEX
7547069
$7,34 Unit Price incl. VAT
13
CARBURETOR MOUNT; RUBBER
3021086
9999999
Not Available
14
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
15
WASHER
7552605
9999999
Not Available
16
HEX NUT
7542105
$7,34 Unit Price incl. VAT
17
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
18
CABLE GND-ENGINE
4010132
9999999
Not Available
19
BOLT
7512315
$9,44 Unit Price incl. VAT
20
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
21
NUT
7547108
$9,44 Unit Price incl. VAT
22
MOUNT ENGINE TOP BLK
5242936067
Not Available
23
WASHER
7555823
$7,34 Unit Price incl. VAT
24
SPACER-MOTOR MNT TOP
5132007
9999999
Not Available
25
ENG.(S.B.)EH50PLE-01
3085556
9990000
Not Available
26
MOUNT-RUBBER TOP 60 DURO
3021045
9999999
Not Available
27
SCREW
7517386
$2,09 Unit Price incl. VAT
28
SMALL IN-LINE FILTER
2530009
$12,59 Unit Price incl. VAT
29
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
30
MANIFOLD BLK
1260978029
Not Available
31
LOCK WASHER
3080530
9999999
Not Available
32
NUT
3080285
9999999
Not Available
33
HOSE CLAMP
7080474
$13,64 Unit Price incl. VAT
34
MOUNT RUBBER TOP
3110044
3024012
$83,99 Unit Price incl. VAT
35
MOUNT LOW.FR.ENGINE BLK.
5242818067
Not Available
36
SCREW
7515417
9999999
Not Available
37
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
38
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
39
BOLT
7512566
9999999
Not Available
40
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
41
WASHER
5210748
$7,34 Unit Price incl. VAT
42
BUSHING
5430261
$13,64 Unit Price incl. VAT
43
CLUTCH INTAKE BOOT
5410421
9999999
Not Available
44
NARROW BAND CLAMP
7080511
$9,44 Unit Price incl. VAT
45
CLAMP HOSE SPRING
7080694
$10,49 Unit Price incl. VAT
46
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
47
FLAT WASHER
7555815
$7,34 Unit Price incl. VAT
48
MOUNT RUBBER REAR 60 DURO
3021119
9999999
Not Available
49
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
50
RIVET
7621462
$2,09 Unit Price incl. VAT
51
CLAMP NYLON CABLE
7080539
$9,44 Unit Price incl. VAT

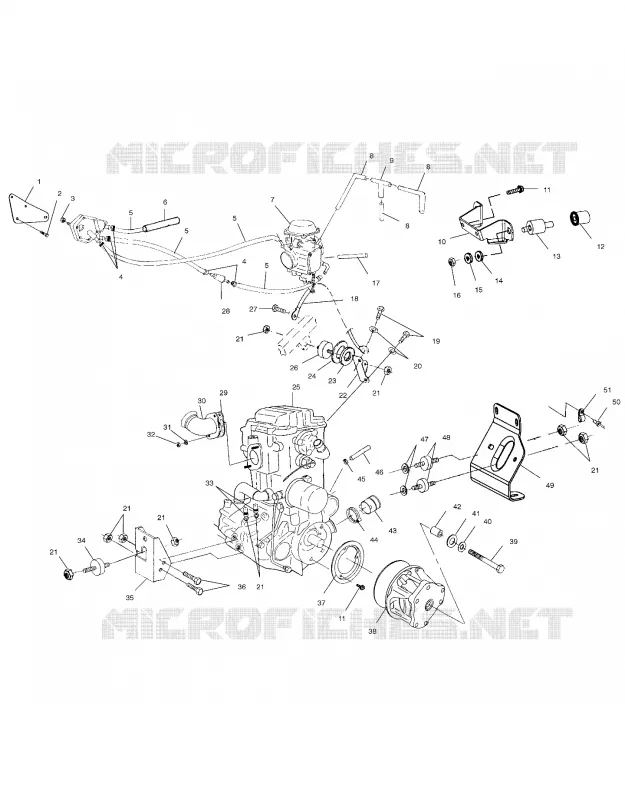

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
