1
Engine displacement
autre
2
Year
1994
3
Trim
EURO LITE - E943433
4
Parts Catalog
TUNNEL AND SEAT ASSEMBLY LITE E943433 (49273427340001)
5
Parts Diagram
Parts Catalog
by
HITCH ASSEMBLY LITE E943433 (49273427340009)
TUNNEL AND SEAT ASSEMBLY LITE E943433 (49273427340001)
1
2
3
4
5
5
6
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
24
24
24
25
26
27
28
29
30
31
31
32
33
34
35
36
37
38
39
40
41
42
42
42
42
43
44
44
44
44
44
44
44
44
45
45
45
45
46
47
48
49
50
51
52
1
CAP; GAS;W/GAUGE
2511213
9999999
Not Available
2
GAS CAP GASKET
5810513
$15,74 Unit Price incl. VAT
3
SEAT CUSHION;(STAR/LITE94)
2681678
9999999
Not Available
4
COVER SEAT (STAR/LITE#94) (Lite Star)
2681679
Not Available
5
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
6
REFLECTOR
5430781
Not Available
7
SCREW
7511856
9999999
Not Available
8
WASHER WROUGHT
7558302
$3,14 Unit Price incl. VAT
9
SCREW
7511840
9999999
Not Available
10
LENS TAILLIGHT
5430423
9999999
Not Available
11
HOUSING TAILLIGHT
5431545
9999999
Not Available
12
BULB
4030045
9999999
Not Available
13
TAILLIGHT HARNESS
2460399
9999999
Not Available
14
SCREW
7515111
9999999
Not Available
15
WASHER
7555798
$1,56 Unit Price incl. VAT
16
FUELPICKUP W/STRAINER
7052037
7052301
$26,24 Unit Price incl. VAT
17
COMPRESSION RING
7080402
$3,14 Unit Price incl. VAT
18
TANK FUEL Substituted by 2511214
5431353
Not Available
19
FITTING OUTLET
7052023
$36,74 Unit Price incl. VAT
20
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
21
FUEL LINE-50FT.PKG.
2870563
8450003-1525
$136,49 Unit Price incl. VAT
22
FITTING
7052077
9999999
Not Available
23
LINE VENT (38.0 )
5521087
8360009-600
$83,99 Unit Price incl. VAT
24
RIVET; (MONOBOLT)
7661620
7661637
$2,09 Unit Price incl. VAT
25
DECAL BRAKE [No Longer Available] (SS)
7072088
Not Available
26
GROMMET RUBBER
5410021
9999999
Not Available
27
TUNNEL ASM;(LITE)
1011881
9999999
Not Available
28
BRKT CONSOLE/SEAT MT.
5222452067
Not Available
29
NUT RETAINER
7670059
9999999
Not Available
30
RIVET(50)
7621470
9999999
Not Available
31
CARRIAGE BOLT
7512193
$4,19 Unit Price incl. VAT
32
NUT SPEED
7670021
$10,49 Unit Price incl. VAT
33
STRAP GASTANK BLK.
5222330067
Not Available
34
CUSHION TANK H.D.
5420126
9999999
Not Available
35
RIVET
7661828
9999999
Not Available
36
DECAL TRACK SEAT(BLK.) [No Longer Available]
7073038
Not Available
37
BUMPER REAR
5224480067
Not Available
38
RIVET
7621418
$2,09 Unit Price incl. VAT
39
FLAP SNOWSILVER
5410394
5410394-1038
$194,24 Unit Price incl. VAT
40
SCREW
7512252
9999999
Not Available
41
REFLECTOR RED
2670070
$15,95 Unit Price incl. VAT
42
BRKT;RH R.SUSP;BLK.
1011780067
Not Available
42
BRKT LH R.SUSP BLK.
1011779067
Not Available
43
RIVET SEMI-TUBE (10)
7661812
9999999
Not Available
44
FOOTREST ASMLH
1011830
9999999
Not Available
44
FOOTREST ASMRH(STARLITE)
1011826
9999999
Not Available
45
SUPPORT;LH TRLG.ARM;BLK.
1011792067
Not Available
45
SUPPORT RH TRLG.ARM BLK.
1011793067
Not Available
46
BRKT FR.SUSP BLK.
5220542067
Not Available
47
PAD AIR BOX
5810502
9999999
Not Available
48
BUSHING;SNAP(10)
7080404
9999999
Not Available
49
BULKHEAD BLK (94LITE)
1011983067
Not Available
50
HOLE PLUG
7080416
$12,59 Unit Price incl. VAT
51
PLUG HOLE
7080398
$10,49 Unit Price incl. VAT
52
MOUNT;RADIUS ROD
5130759
9999999
Not Available

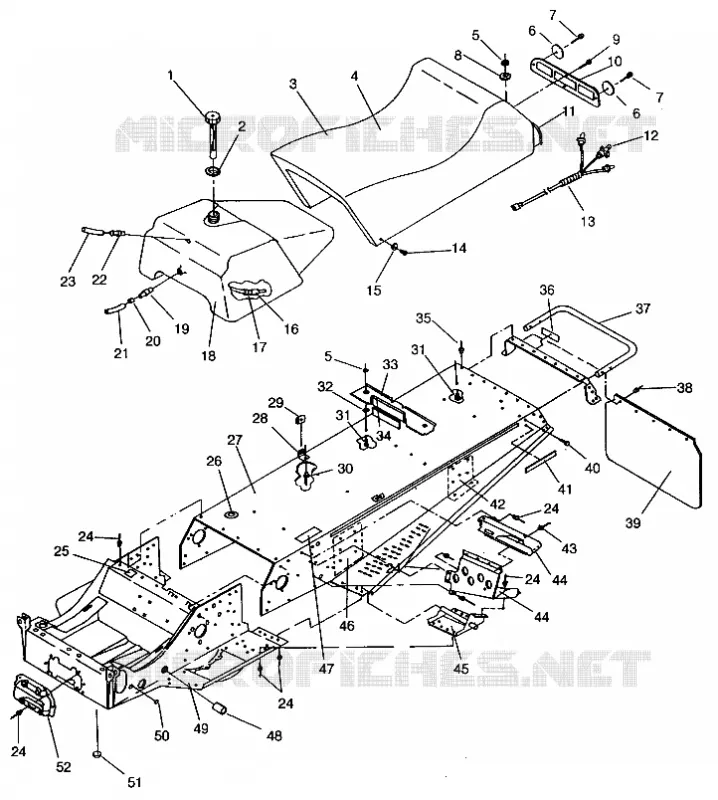

Find the detailed TUNNEL AND SEAT ASSEMBLY LITE E943433 (49273427340001) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
