ENGINE, AIR INTAKE SYSTEM for POLARIS RZR TURBO R 4 ULTIMATE from 2023

ENGINE, AIR INTAKE SYSTEM

1

ASM-DUCT AIRBOX IN

1241537

$167,99 Unit Price incl. VAT

2

CLAMP-HOSE SLOTTED;89-100 DIA

7081969

$19,94 Unit Price incl. VAT

3

FILTER ASSEMBLY

1241084

$57,63 Unit Price incl. VAT

4

ASM-AIRBOX COVER

1241468

$173,24 Unit Price incl. VAT

5

ASM-AIRBOX CLIP

7082596

1241468

$173,24 Unit Price incl. VAT

6

AIRBOX SEAL

5814549

$68,24 Unit Price incl. VAT

7

DECAL-CAUT.AIR BOX

7182652

Not Available

8

DRAIN PLUG

5414472

$10,49 Unit Price incl. VAT

9

AIRBOX

5457123

$194,24 Unit Price incl. VAT

10

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

11

VENT HOSE

5415474

$178,49 Unit Price incl. VAT

12

HOSE-VENT ENG

5416756

$104,99 Unit Price incl. VAT

13

CLAMP SPRINGBAND 29/12 BLK

7080842

$13,64 Unit Price incl. VAT

14

ASM-DUCT CHARGE AIR

1244623

$367,49 Unit Price incl. VAT

15

3 BAR TMAP SENSOR

2413095

$167,99 Unit Price incl. VAT

17

CLAMP-HOSE T-BOLT;66.3 DIA

7082091

$68,24 Unit Price incl. VAT

18

CLAMP-HOSE T-BOLT;56 DIA

7082896

$25,19 Unit Price incl. VAT

19

CLAMP-OETIKER 16704932-32

7082095

$10,49 Unit Price incl. VAT

20

SCR-PLASTITE 5.0MMX20-PN-T25

7519952

$7,34 Unit Price incl. VAT

21

AIR INTAKE DUCT ASSEMBLY

1241308

$377,99 Unit Price incl. VAT

22

TMAP SENSOR

2411528

$178,49 Unit Price incl. VAT

23

CLAMP-HOSE T-BOLT;87.3 DIA

7082093

$57,74 Unit Price incl. VAT

24

CLAMP-HOSE T-BOLT;56 DIA

7082485

$25,19 Unit Price incl. VAT

25

INTAKE BEZEL ASSEMBLY; LEFT

2637232

$220,49 Unit Price incl. VAT

26

BOOT-PURGE VALVE;AIR BOX

5417149

$9,44 Unit Price incl. VAT

27

INTAKE BEZEL ASSEMBLY; RIGHT

2637233

$220,49 Unit Price incl. VAT

28

ROUTING CLIP

7081496

$9,44 Unit Price incl. VAT

29

CLAMP-OETIKER 16704965-36.1

7082107

$9,44 Unit Price incl. VAT

30

CLAMP-OETIKER 16702031-38.5

7082108

$10,49 Unit Price incl. VAT

31

CLAMP-OETIKER 16700005-10.0

7082109

$7,34 Unit Price incl. VAT

32

CLAMP-HOSE SLOTTED;84-96 DIA

7082805

$10,49 Unit Price incl. VAT

33

SCREEN-INTAKE OUTER LH

5456087

$52,49 Unit Price incl. VAT

34

SCREEN-INTAKE INNER FRONT LH

5456089

$89,24 Unit Price incl. VAT

35

SCREEN-INTAKE INNER REAR LH

5456091

$89,24 Unit Price incl. VAT

36

SCREEN-INTAKE OUTER RH

5456088

$52,49 Unit Price incl. VAT

37

SCREEN-INTAKE INNER FRONT RH

5456090

$89,24 Unit Price incl. VAT

38

SCREEN-INTAKE INNER REAR RH

5456092

$89,24 Unit Price incl. VAT

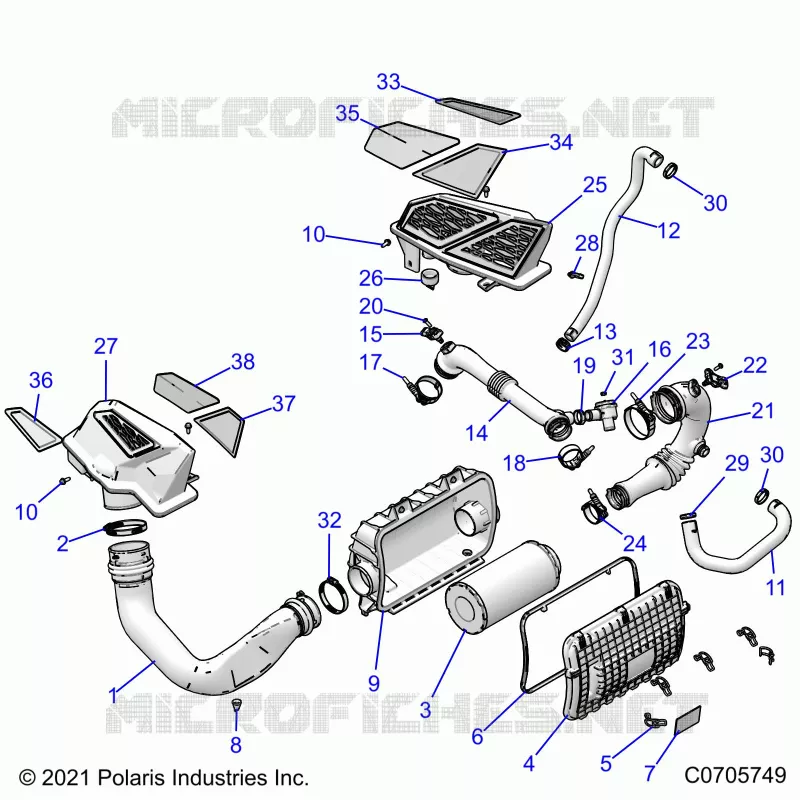

Find the detailed ENGINE, AIR INTAKE SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
