Parts Catalog
REAR BRAKE
5
Parts Diagram
Parts Catalog
CLUTCH COVER ASSEMBLY
by
REAR WHEEL DRIVE ASSEMBLY
REAR BRAKE
1
PIN DOWEL
7661820
9999999
Not Available
2
CALIPER BRAKE MACH.
5130946
9990005
Not Available
3
BRAKEPAD KIT; REAR
2200464
$56,16 Unit Price incl. VAT
4
PISTON SEAL KIT
2200463
$167,99 Unit Price incl. VAT
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
7
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
8
BLEEDER SCREW
7080352
$5,76 Unit Price incl. VAT
9
SPRING ANTI-RATTLE
5222232
9999999
Not Available
10
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
11
SPRING BRAKE COMP.
7041219
9999999
Not Available
12
PIN BRAKE CALIPER
5020666
9999999
Not Available
13
BRAKE GASKET
5830009
9999999
Not Available
14
RAMP MOVEABLE BRAKE
5630458
9990000
Not Available
15
RAMP; STAT.BRAKE
5630457
9990000
Not Available
16
SCREW
7512173
9999999
Not Available
17
BRAKE SEAL
3610026
9999999
Not Available
18
ARM BRAKE CALIPER
5240624
9999999
Not Available
19
WASHER; SPRING
7555828
9999999
Not Available
20
NUT
7542129
9999999
Not Available
21
BOLT
7515145
9999999
Not Available
22
SPRING
7042029
$10,49 Unit Price incl. VAT
23
COTTER PIN
7661401
$1,56 Unit Price incl. VAT
24
PEDAL PIVOT BUSHING
5431107
$16,79 Unit Price incl. VAT
25
COTTER PIN
7661203
$2,09 Unit Price incl. VAT
26
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
27
FOOTBRAKE BLK.
1910144067
Not Available
28
ROD BRAKE
5224531
9999999
Not Available

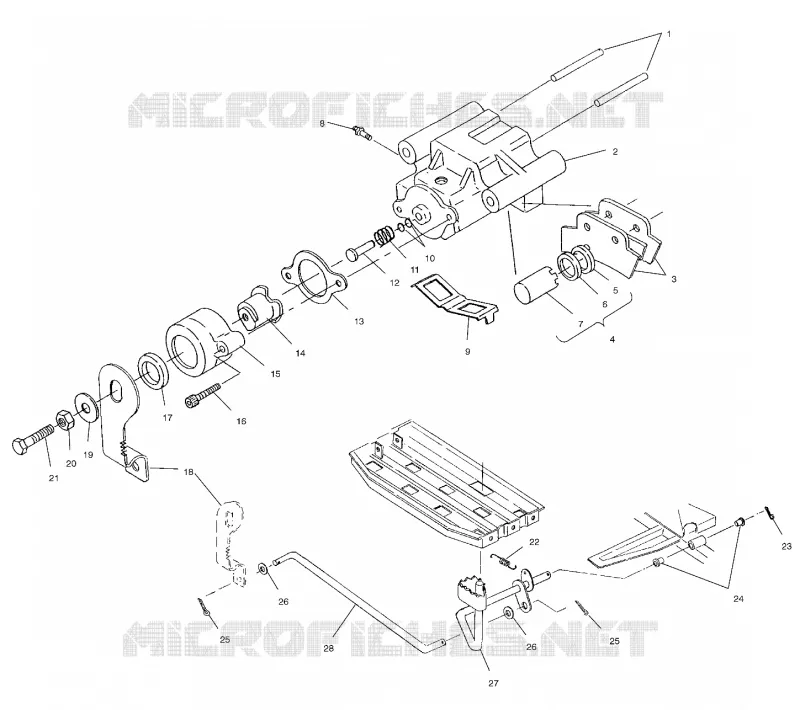

Find the detailed REAR BRAKE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
