1
Engine displacement
700
2
Year
2006
3
Trim
700 / 900 RMK
4
Parts Catalog
CRANKCASE/THROTTLE BODY MOUNTING
5
Parts Diagram
Parts Catalog
COOLING
by
DRIVE CLUTCH
CRANKCASE/THROTTLE BODY MOUNTING
-
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
20
-
CRANKCASE KIT
2203111
9999999
Not Available
1
DOWL HOL M13X10
7663008
$9,44 Unit Price incl. VAT
2
SEAL-FLANGED 40X80-7 W/STNDOFF
5412218
9999999
Not Available
3
BOLT ALLEN M6 X 1.0 X 14
7517431
$10,49 Unit Price incl. VAT
4
ASM-FUEL RAIL 4 INJ 900
2520581
9999999
Not Available
5
INJ-FUEL EV14XT RED
1202853015
Not Available
5
INJ-FUEL EV14XT YELLOW
1202853053
Not Available
5
INJ-FUEL EV14XT BLUE
1202853027
Not Available
6
REED VALVE ASSEMBLY
1202698
$262,49 Unit Price incl. VAT
7
ADAPTER-THROTTLE BODY
1253540
9999999
Not Available
8
BAND CLAMP; NARROW
7080707
$5,76 Unit Price incl. VAT
9
HEX FLANGE SCREW 6 MM X 1.0 MM X 22.8 MM
7518385
$7,34 Unit Price incl. VAT
10
ASM-THROTTLE BODY 51/154LPHA
1203251
9999999
Not Available
10
SPRING-THROTTLE BODY 866/755
7043201
9999999
Not Available
11
OIL CABLE
7081158
9999999
Not Available
12
RING-E RET.
7710427
9999999
Not Available
13
WASHER(10)
7555944
9999999
Not Available
14
THROTTLE POSITION SENSOR
3131591
$472,49 Unit Price incl. VAT
15
SCREW
7516919
9999999
Not Available
16
SCREW
7516732
$3,14 Unit Price incl. VAT
17
SCR-M8X1.25X80 HX/FL-Y
7518093
9999999
Not Available
18
FLANGED SEAL; MAG; 28 X 48 X 7
5412216
9999999
Not Available
19
PLUG-1/8 NPT;HX/SOC W/SEALANT
7052337
$6,29 Unit Price incl. VAT
20
CHECK VALVE; 90 DEG
7051020
$68,24 Unit Price incl. VAT

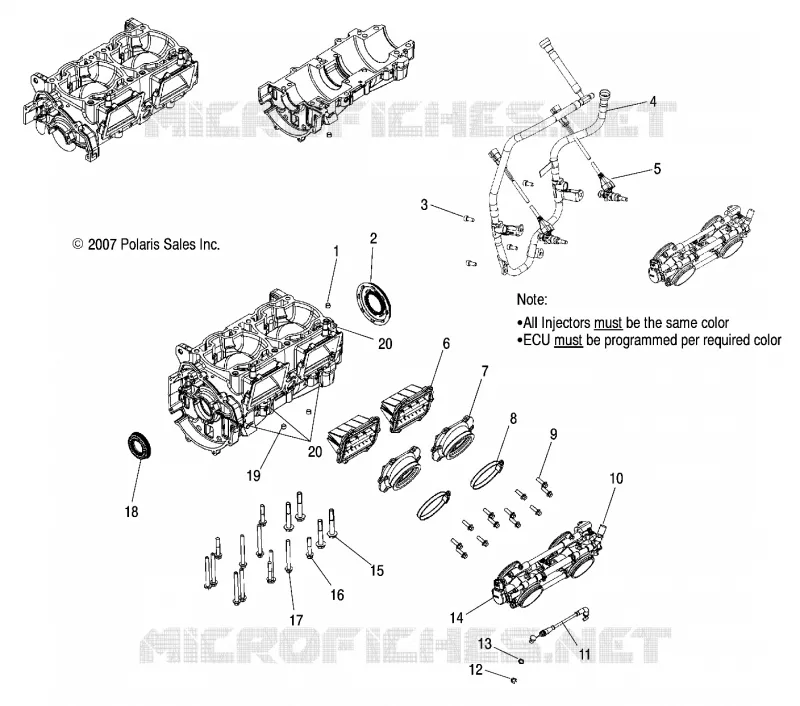

Find the detailed CRANKCASE/THROTTLE BODY MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
