1
Engine displacement
autre
2
Year
1989
3
Trim
NOR TRAIL SUPERTRAK - N890161
4
Parts Catalog

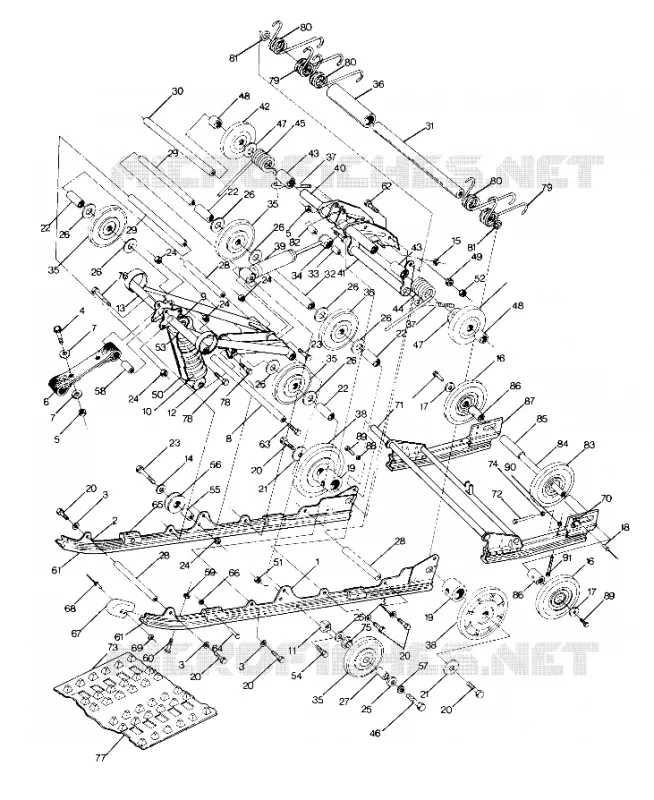

SUSPENSION SUPERTRAK (4915871587013A)
5
Parts Diagram
Parts Catalog
NOSEPAN Supertrak (4915871587005A)
by
ENGINE MOUNTING SUPERTRAK (4915871587015A)
SUSPENSION SUPERTRAK (4915871587013A)
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
27
27
28
28
28
28
28
28
29
29
29
29
30
30
31
31
32
32
33
33
34
34
35
35
35
35
35
35
35
35
35
35
36
36
37
37
37
37
38
38
38
38
39
39
40
40
41
41
42
42
43
43
43
43
44
44
45
45
46
46
47
47
47
47
48
48
48
48
49
49
50
50
51
51
52
52
53
53
54
54
55
55
56
56
57
57
58
58
59
59
60
60
61
61
61
61
62
62
63
63
64
64
65
65
67
67
68
68
69
69
70
70
71
71
72
72
73
73
74
74
75
75
76
76
77
77
78
78
78
78
79
79
79
79
80
80
80
80
80
80
82
82
83
83
84
84
85
85
86
86
86
86
87
87
3
3
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
27
27
28
28
28
28
28
28
29
29
29
29
30
30
31
31
32
32
33
33
34
34
35
35
35
35
35
35
35
35
35
35
36
36
37
37
37
37
38
38
38
38
39
39
40
40
41
41
42
42
43
43
43
43
44
44
45
45
46
46
47
47
47
47
48
48
48
48
49
49
50
50
51
51
52
52
53
53
54
54
55
55
56
56
57
57
58
58
59
59
60
60
61
61
61
61
62
62
63
63
64
64
65
65
67
67
68
68
69
69
70
70
71
71
72
72
73
73
74
74
75
75
76
76
77
77
78
78
78
78
79
79
79
79
80
80
80
80
80
80
82
82
83
83
84
84
85
85
86
86
86
86
87
87
3
3
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
27
27
28
28
28
28
28
28
29
29
29
29
30
30
31
31
32
32
33
33
34
34
35
35
35
35
35
35
35
35
35
35
36
36
37
37
37
37
38
38
38
38
39
39
40
40
41
41
42
42
43
43
43
43
44
44
45
45
46
46
47
47
47
47
48
48
48
48
49
49
50
50
51
51
52
52
53
53
54
54
55
55
56
56
57
57
58
58
59
59
60
60
61
61
61
61
62
62
63
63
64
64
65
65
67
67
68
68
69
69
70
70
71
71
72
72
73
73
74
74
75
75
76
76
77
77
78
78
78
78
79
79
79
79
80
80
80
80
80
80
82
82
83
83
84
84
85
85
86
86
86
86
87
87
3
3
1
RAIL ASM LH [No Longer Available] (Incl. 64-66)
1540622
Not Available
2
RAIL ASM RH (Incl. 64-66)
1540623
Not Available
3
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
4
BOLT
7515307
$7,34 Unit Price incl. VAT
5
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
6
STRAP LIMITER
5410397
9999999
Not Available
7
WASHER
7555716
$3,14 Unit Price incl. VAT
8
SHAFT MOUNTING
5010149
9999999
Not Available
9
TOP RETAINER
5220225
$19,94 Unit Price incl. VAT
10
RETAINER SPRING
5210953
$11,54 Unit Price incl. VAT
11
BOGIE WHEEL BRACKET
5130570
$89,24 Unit Price incl. VAT
12
SUSPENSION SHOCK
7041142
9999999
Not Available
13
ARM FRONT TORQUE Substituted by 1540565-067
1540565
Not Available
14
WASHER
7555743
9999999
Not Available
15
NUT FLEXLOC
7542402
9999999
Not Available
16
WHEEL IDLER
1594037
Not Available
17
WASHER FLAT
7555732
9999999
Not Available
18
RIVET
7621501
$4,19 Unit Price incl. VAT
19
SPACER
5330151
9999999
Not Available
20
BOLT(10)
7515458
7512492
$2,09 Unit Price incl. VAT
22
SPACER OUTER
5332784
9999999
Not Available
23
SCREW
7515433
$3,14 Unit Price incl. VAT
24
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
25
WASHER
7555804
$7,34 Unit Price incl. VAT
26
BUSHING
7556301
$6,29 Unit Price incl. VAT
27
SPACER
5332786
$13,64 Unit Price incl. VAT
28
SHAFT-PIVOT ARM
5020392
5020723
$47,24 Unit Price incl. VAT
29
SHAFT-PIVOT ARM
5020415
9999999
Not Available
30
AXLE
5020426
9999999
Not Available
31
SHAFT REAR IDLER
5020416
Not Available
32
TUBE; SUSPENSION
5332783
9999999
Not Available
33
SPACER
5332631
$11,54 Unit Price incl. VAT
34
BOLT
7512329
$7,34 Unit Price incl. VAT
35
IDLER WHEEL; 5.35 IN
1543018
$115,49 Unit Price incl. VAT
36
SPACER
5330152
9999999
Not Available
37
BOLT-EYE SPRING ADJ.
7080221
$17,84 Unit Price incl. VAT
38
IDLER WHEEL
1594032
9999999
Not Available
39
SHOCK
7041154
9999999
Not Available
40
ARM REAR TORQUE Substituted by 1540539-067
1540539
Not Available
41
ARM PIVOT Substituted by 1540562-067
1540562
Not Available
42
TRACK CARRIER WHEEL
1543017
9999999
Not Available
43
TUBE-SPRING
5521089
9999999
Not Available
44
SPRING LH Substituted by 7041119-067
7041119
Not Available
45
SPRING RH Substituted by 7041120-067
7041120
Not Available
46
BOLT
7512659
9999999
Not Available
47
WASHER
7555726
$3,14 Unit Price incl. VAT
48
SPACER-CARR.WHEEL
5332730
9999999
Not Available
49
NUT SHOULDER
7542326
$36,74 Unit Price incl. VAT
50
SPRING SHIELD
5430671
9999999
Not Available
51
NUT LOCK
7542403
9999999
Not Available
52
NUT LOCK
7542302
$7,34 Unit Price incl. VAT
53
SPRING-SHOCK SUSP
7041140
Not Available
54
BOLT
7512404
$7,34 Unit Price incl. VAT
55
SPACER
5332787
9999999
Not Available
56
ROLLER-SPRING
5430540
9999999
Not Available
57
WASHER SPLIT LOCK
7553201
$7,34 Unit Price incl. VAT
58
BUSHING SUSPENSION
5010212
Not Available
59
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
60
SCREW
7512227
$6,29 Unit Price incl. VAT
61
SLIDER(BLUE)
5521146
9999999
Not Available
62
BOLT
7515317
$9,44 Unit Price incl. VAT
63
BOLT(10)
7515432
9999999
Not Available
64
RIVET (50)
7661609
9999999
Not Available
65
BUMPER-SUSPENSION
5410315
9999999
Not Available
67
COVER-RAIL TIP
5430627
9999999
Not Available
68
RIVET(10)
7621435
$2,09 Unit Price incl. VAT
69
WASHER
7555746
7555904
$1,56 Unit Price incl. VAT
70
BLOCK-IDLER BOLT ADJ.
5130530
$62,99 Unit Price incl. VAT
71
SHAFT PIVOT ARM
5020452
Not Available
72
SCREW 3/8-16X3 1/2HXHD TAP
7515459
$10,49 Unit Price incl. VAT
73
TRACK (INDY SUPER)
5410513
Not Available
74
NUT
7542404
$3,14 Unit Price incl. VAT
75
INSERT-WHEEL
5430789
5431531
$19,94 Unit Price incl. VAT
76
BOLT
7515438
$9,44 Unit Price incl. VAT
77
CLIP METAL(YOKOHAMA)
5222109
9999999
Not Available
78
SCREW
7515415
9999999
Not Available
79
SPRING EXT.LH.(L.T.)
7041145
Not Available
80
SPRING EXT RH(L.T.)
7041146
Not Available
82
BUSHING
5430537
$7,34 Unit Price incl. VAT
83
WHEEL; IDLER
1594021
9999999
Not Available
84
SHAFT REAR IDLER
5020395
9999999
Not Available
85
SPACER IDLER R.INNER Substituted by 5333086
5332734
Not Available
86
SPACER-IDLER-OUTER
5332641
9999999
Not Available
87
RAIL EXT. ASM. Substituted by 1540621
1540620
Not Available
88
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT

Find the detailed SUSPENSION SUPERTRAK (4915871587013A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for NOR TRAIL SUPERTRAK - N890161

CONSOLE SUPERTRAK (4915871587006A)

CONSOLE SUPERTRAK (4915871587006A)

for NOR TRAIL SUPERTRAK - N890161 from 1989

FRONT SUSPENSION AND SKI SUPERTRAK (4915871587007A)

FRONT SUSPENSION AND SKI SUPERTRAK (4915871587007A)

for NOR TRAIL SUPERTRAK - N890161 from 1989

STEERING SUPERTRAK (4915871587009A)

STEERING SUPERTRAK (4915871587009A)

for NOR TRAIL SUPERTRAK - N890161 from 1989

RACK TUNNEL EXTENSION SUPERTRAK UPDATED 10/88 (4915871587019A)

RACK TUNNEL EXTENSION SUPERTRAK UPDATED 10/88 (4915871587019A)

for NOR TRAIL SUPERTRAK - N890161 from 1989

CRANKCASE SUPERTRAK (4915871587021A)

CRANKCASE SUPERTRAK (4915871587021A)

for NOR TRAIL SUPERTRAK - N890161 from 1989

CYLINDER SUPERTRAK (4915871587022A)

CYLINDER SUPERTRAK (4915871587022A)

for NOR TRAIL SUPERTRAK - N890161 from 1989

PISTON AND CRANKSHAFT SUPERTRAK (4915871587023A)

PISTON AND CRANKSHAFT SUPERTRAK (4915871587023A)

for NOR TRAIL SUPERTRAK - N890161 from 1989

CARBURETOR SUPERTRAK (4915871587028A)

CARBURETOR SUPERTRAK (4915871587028A)

for NOR TRAIL SUPERTRAK - N890161 from 1989

TRACK DRIVE SHAFT SUPERTRAK UPDATED LO/88 (4915871587030A)

TRACK DRIVE SHAFT SUPERTRAK UPDATED LO/88 (4915871587030A)

for NOR TRAIL SUPERTRAK - N890161 from 1989

CHASSIS AND SEAT ALL SWEDISH INDY MODELS (4916051605003A)

CHASSIS AND SEAT ALL SWEDISH INDY MODELS (4916051605003A)

for NOR TRAIL SUPERTRAK - N890161 from 1989

BRAKE CHAINCASE ALL SWEDISH INDY MODELS (4916051605005A)

BRAKE CHAINCASE ALL SWEDISH INDY MODELS (4916051605005A)

for NOR TRAIL SUPERTRAK - N890161 from 1989

HOOD SUPERTRAK (4915871587003A)

HOOD SUPERTRAK (4915871587003A)

for NOR TRAIL SUPERTRAK - N890161 from 1989

NOSEPAN Supertrak (4915871587005A)

NOSEPAN Supertrak (4915871587005A)

for NOR TRAIL SUPERTRAK - N890161 from 1989

SUSPENSION SUPERTRAK (4915871587013A)

SUSPENSION SUPERTRAK (4915871587013A)

for NOR TRAIL SUPERTRAK - N890161 from 1989

ENGINE MOUNTING SUPERTRAK (4915871587015A)

ENGINE MOUNTING SUPERTRAK (4915871587015A)

for NOR TRAIL SUPERTRAK - N890161 from 1989

DRIVE CLUTCH SUPERTRAK (4915871587017A)

DRIVE CLUTCH SUPERTRAK (4915871587017A)

for NOR TRAIL SUPERTRAK - N890161 from 1989

DRIVEN CLUTCH SUPERTRAK (4915871587018A)

DRIVEN CLUTCH SUPERTRAK (4915871587018A)

for NOR TRAIL SUPERTRAK - N890161 from 1989

MAGNETO SUPERTRAK (4915871587024A)

MAGNETO SUPERTRAK (4915871587024A)

for NOR TRAIL SUPERTRAK - N890161 from 1989

BLOWER HOUSING AND RECOIL STARTER SUPERTRAK (4915871587025A)

BLOWER HOUSING AND RECOIL STARTER SUPERTRAK (4915871587025A)

for NOR TRAIL SUPERTRAK - N890161 from 1989

OIL PUMP SUPERTRAK (4915871587026A)

OIL PUMP SUPERTRAK (4915871587026A)

for NOR TRAIL SUPERTRAK - N890161 from 1989

FUEL PUMP SUPERTRAK (4915871587027A)

FUEL PUMP SUPERTRAK (4915871587027A)

for NOR TRAIL SUPERTRAK - N890161 from 1989

POLARIS NOR TRAIL SUPERTRAK - N890161 1989

NOR TRAIL SUPERTRAK - N890161

NOR TRAIL SUPERTRAK - N890161

Model : OTHERS

Engine capacity : autre

Year : 1989

New and OEM parts
International Shipping
Official price POLARIS
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.2 /5
1764 Reviews
View all reviews
Spare parts catalogue for all brands
