ENGINE, CRANKCASE AND CRANKSHAFT for POLARIS RZR XP 1000 HIGH LIFTER from 2021

ENGINE, CRANKCASE AND CRANKSHAFT

1

CRANKSHAFT ASSEMBLY

3023169

3023103

$1 900,49 Unit Price incl. VAT

2

BALANCE SHAFT ASSEMBLY

1204835

$677,24 Unit Price incl. VAT

3

CONNECTING ROD ASSEMBLY

3023077

3024568

$157,49 Unit Price incl. VAT

4

BOLT FLANGE MJ9 X 1 X 40

7520378

$10,49 Unit Price incl. VAT

5

MAIN GEARCASE; 41 MM; GREEN

3514662003

Not Available

5

MAIN BEARING; 41 MM; BLUE

3514662002

Not Available

5

MAIN BEARING; 41 MM; WHITE

3514662001

Not Available

5

MAIN BEARING; RED

3514662005

Not Available

5

MAIN BEARING; 41 MM; YELLOW

3514662004

Not Available

6

BALL SHAFT BEARING; 38 X 41 X 17.5

3514756

$16,79 Unit Price incl. VAT

7

CON ROD BEARING; 41 MM; GREEN

3514663003

Not Available

7

CONNECTING ROD BEARING; 41MM; WHITE

3514663001

Not Available

7

BEARING-CON ROD; G-90; 41MM; YELLOW

3514663004

Not Available

7

CONNECTING ROD BEARING; 41 MM; BLUE

3514663002

Not Available

8

MAIN BEARING; CENTER; LOWER

3514803004

Not Available

8

MAIN BEARING; CENTER; LOWER; BLUE

3514803002

Not Available

8

MAIN BEARING; CENTER; LOWER; GREEN

3514803003

Not Available

9

CRANKSHAFT SEAL

3610284

3610419

Not Available

10

SCREW

7519186

$10,49 Unit Price incl. VAT

11

SCREW

7519297

$7,34 Unit Price incl. VAT

12

WOODRUFF KEY

7721122

$13,64 Unit Price incl. VAT

13

CRANKCASE KIT

2207373

$2 320,49 Unit Price incl. VAT

13

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

14

DOWEL PIN; 6 MM X 10 MM

5132835

$4,19 Unit Price incl. VAT

15

OIL DRAIN DIVERTER

5452616

$47,24 Unit Price incl. VAT

15

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

16

PLUG-3/8 NPT;HX/SOC W/SEALANT

7052413

$8,39 Unit Price incl. VAT

17

PLUG-HEX SOCKET;1/4X18;SEALANT

7518835

$10,49 Unit Price incl. VAT

18

BOLT

7520979

7521267

$25,19 Unit Price incl. VAT

19

PLUG-HEX SCKT;W/O-RING;M16X1.5

7052642

$13,64 Unit Price incl. VAT

20

SUMP COVER

5137873

5143719

$204,74 Unit Price incl. VAT

21

PLUG-HEX SCKT;W/O-RING;M20X1.5

7052643

$14,69 Unit Price incl. VAT

22

SCR-M8X1.25X50 HX/FL-Y

7517793

$10,49 Unit Price incl. VAT

23

HEX FLANGE SCREW; 6 MM X 35 MM

7518578

$7,34 Unit Price incl. VAT

24

SCREW

7519154

$13,64 Unit Price incl. VAT

25

ENGINE GEARCASE COUPLER

5137795

5143718

$272,99 Unit Price incl. VAT

26

PISTON JET

3022856

$83,99 Unit Price incl. VAT

27

BOLT-M10X1.5X60MM8.8HEXDRILOCK

7520467

$9,44 Unit Price incl. VAT

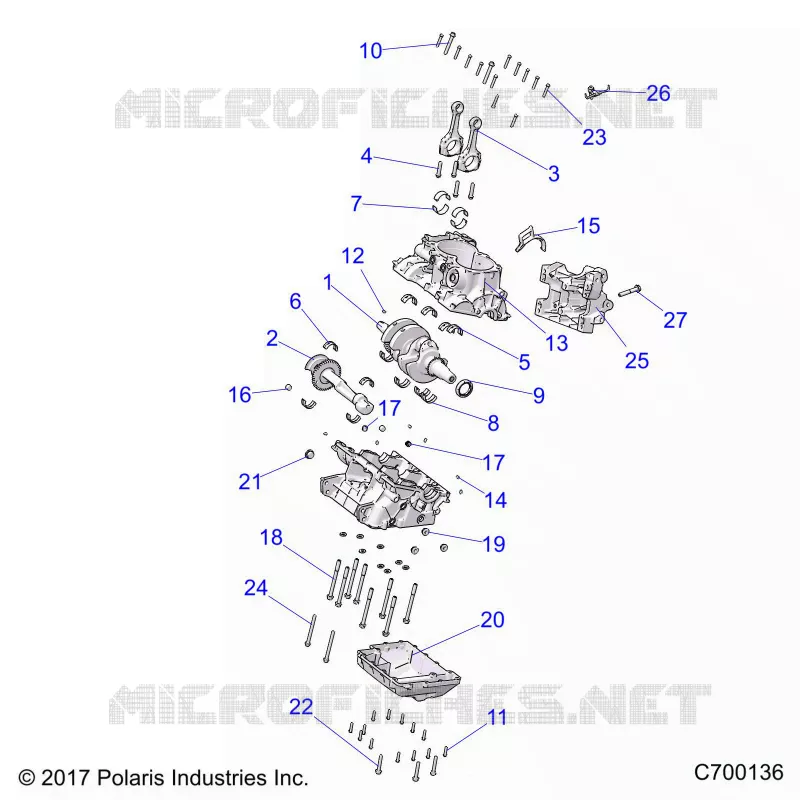

Find the detailed ENGINE, CRANKCASE AND CRANKSHAFT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
