TRANSMISSION MOUNTING for POLARIS RZR 800 - Z14VH76AC/AD/EAI/EAK/EAJ/EAL/EAW from 2014

ENGINE, STARTING MOTOR

REFERENCES, TOOL KIT AND OWNERS MANUAL

TRANSMISSION MOUNTING

1

FLANGED SCREW

7515304

9999999

Not Available

2

ENGINE AND TRANSMISSION MOUNTING BRACKET

5250848

9999999

Not Available

3

SCREW

7515415

9999999

Not Available

4

SCREW

7515398

9999999

Not Available

5

REAR DIFFERENTIAL MOUNT

1332450

9999999

Not Available

6

NYLOCK NUT

7542439

$2,09 Unit Price incl. VAT

7

BOLT-5/16-18X1-1/2 HXFLNG;P-30

7518425

$7,34 Unit Price incl. VAT

8

NYLOK NUT

7542324

$1,56 Unit Price incl. VAT

9

WELD-TRANNY MNT FRTYZ

1015537

9999999

Not Available

10

ISOLATOR BASE WELD

1015672

9999999

Not Available

11

ENGINE MOUNT WELD

1015673

9999999

Not Available

12

SCR-5/16-18X3/4 FLGHX 65 LK-Y

7518181

9999999

Not Available

13

BOLT-3/8-16X7/8 HEX FLANGE GR5

7518364

$3,14 Unit Price incl. VAT

14

MOUNT BRACKET WELD REAR MATTE BLACK

1017237458

Not Available

15

KIT-LONG BLOCK RZR M17

2204398

9990000

Not Available

16

FLANGED NUT; 3/8-16

7547180

$4,19 Unit Price incl. VAT

17

FLANGED NUT LOCK(10)

7542459

$3,14 Unit Price incl. VAT

18

NYLOK NUT

7547263

$6,29 Unit Price incl. VAT

19

SCREW

7517696

$10,49 Unit Price incl. VAT

20

CLAMP-HOSE

7081474

$6,29 Unit Price incl. VAT

21

FUEL LINE; 1/4 ID

84500031525

Not Available

22

CRANKCASE MOUNT STUD; LOWER

7518657

$41,99 Unit Price incl. VAT

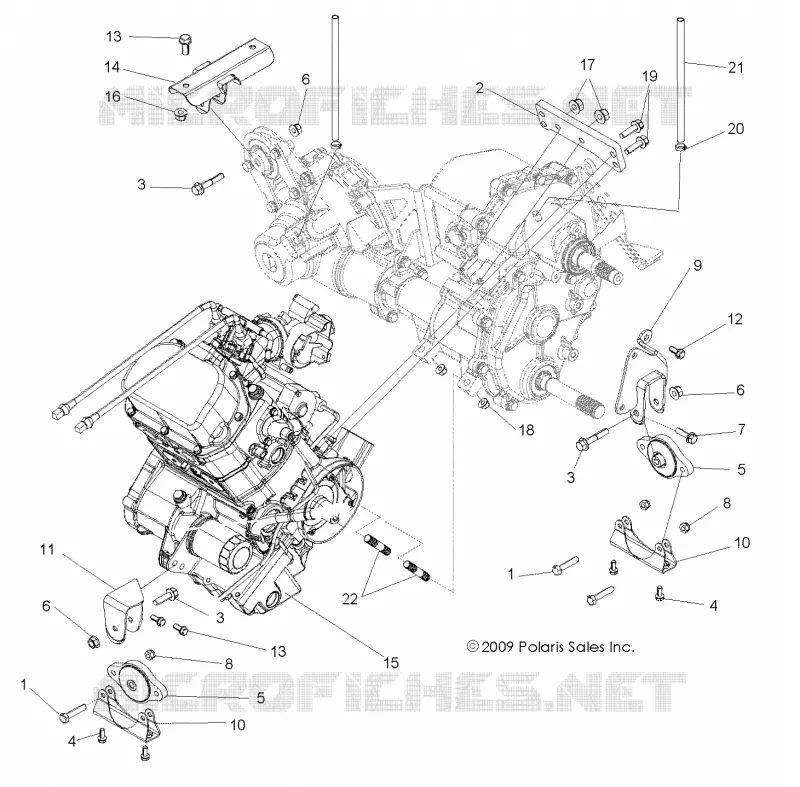

Find the detailed TRANSMISSION MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for RZR 800 - Z14VH76AC/AD/EAI/EAK/EAJ/EAL/EAW

FRONT BUMPER

FUEL TANK

GLOVE BOX

SEAT ASM.

SEAT ASM. AND SLIDER

SEAT MOUNTING AND BELTS

SIDE NETS

BRAKE LINES AND MASTER CYLINDER

CHASSIS, CAB FRAME AND SIDE BARS

CHASSIS, MAIN FRAME AND SKID PLATE

DRIVE TRAIN, CLUTCH COVER AND DUCTING

DRIVE TRAIN, FRONT GEARCASE

DRIVE TRAIN, GEARCASE, CARRIER MOUNTING

DRIVE TRAIN, GEARCASE, CARRIER, INTERNAL COMPONENTS

DRIVE TRAIN, MAIN GEARCASE INTERNALS 1

DRIVE TRAIN, MAIN GEARCASE INTERNALS 2

ELECTRICAL, INSTRUMENTS CONTROLS

HEADLIGHTS, TAILLIGHTS AND BULBS

HEADLIGHTS, TAILLIGHTS AND BULBS

IGNITION

SENSORS

CRANKCASE AND CRANKSHAFT

CYLINDER HEAD AND VALVES

DIPSTICK OIL FILTER

EXHAUST SYSTEM

ENGINE, STATOR AND FLYWHEEL

THERMOSTAT

THROTTLE BODY AND VALVE COVER

THROTTLE PEDAL

FRONT SUSPENSION SHOCK MOUNTING

REAR SUSPENSION CONTROL ARMS

REAR SUSPENSION SHOCK MOUNTING

REAR SUSPENSION SHOCK MOUNTING

DECALS

FLOOR ROCKER PANELS

PASSENGER GRAB BAR

HOOD AND FRONT BODY WORK

REAR BUMPER

REAR RACK and FENDERS

BARKE CALIPER MOUNTING

FRONT BRAKE CALIPER

BRAKES, PEDAL AND MASTER CYLINDER

REAR BRAKE CALIPER

DRIVE TRAIN, FRONT GEARCASE INTERNALS

DRIVE TRAIN, FRONT HALF SHAFT

DRIVE TRAIN, FRONT PROP SHAFT

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, PRIMARY CLUTCH

DRIVE TRAIN, REAR HALF SHAFT

DRIVE TRAIN, SECONDARY CLUTCH

BATTERY

WIRE HARNESS

WIRE HARNESS, EPS

ENGINE, AIR INTAKE SYSTEM

COOLING SYSTEM

ENGINE, FUEL INJECTOR

OIL PUMP AND WATER PUMP

PISTON CYLINDER

ENGINE, STARTING MOTOR

TRANSMISSION MOUNTING

REFERENCES, TOOL KIT AND OWNERS MANUAL

STEERING

FRONT SUSPENSION CONTROL ARMS

FRONT SUSPENSION SHOCK MOUNTING

FRONT STABILIZER BAR

REAR STRUT STABILIZER

WHEELS, FRONT

WHEELS, REAR

FRONT SUSPENSION SHOCK

REAR SUSPENSION SHOCK

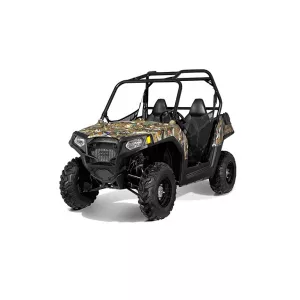

POLARIS RZR 800 - Z14VH76AC/AD/EAI/EAK/EAJ/EAL/EAW 2014
