1
Engine displacement
440
2
Year
1994
3
Trim
440 XCR SP - 0941660
4
Parts Catalog
DRIVEN CLUTCH ASSEMBLY 440 XCR SP 0941660 (4927082708024A)
5
Parts Diagram
Parts Catalog
DRIVE TRAIN ASSEMBLY 440 XCR SP 0941660 (4927082708019A)
by
ENGINE MOUNTING 440 XCR SP 0941660 (4927082708025A)
DRIVEN CLUTCH ASSEMBLY 440 XCR SP 0941660 (4927082708024A)
1
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
SCREW
7512048
9999999
Not Available
2
PLATE
5210749
9999999
Not Available
3
RETAINING RING
7714804
9999999
Not Available
4
WASHER 1.505 X 2.00 X 0.30
7556804
$1,56 Unit Price incl. VAT
5
RAMP DRIVEN 36 DEGREE
5130895
9999999
Not Available
6
KEY SQUARE
7721103
9999999
Not Available
7
CLUTCH SPRING; RED
7041198
$104,99 Unit Price incl. VAT
8
DRIVEN BUSHING; LARGE
3569803
9999999
Not Available
9
WASHER-1.50X3.00X.075 FL-Y
7555865
9999999
Not Available
10
PIN-ADJUSTABLE DRIVEN
5020653
$52,49 Unit Price incl. VAT
11
CAM DRIVEN ADJUSTABLE
5222878
9999999
Not Available
12
SCREW
7515133
$7,34 Unit Price incl. VAT
13
CAP DRIVEN (600 600 SE)
5230101
Not Available
14
RAMP BUTTON
5430466
$12,59 Unit Price incl. VAT
15
CLUTCH 36DEG.ADJ DRIVEN
1322155
9999999
Not Available

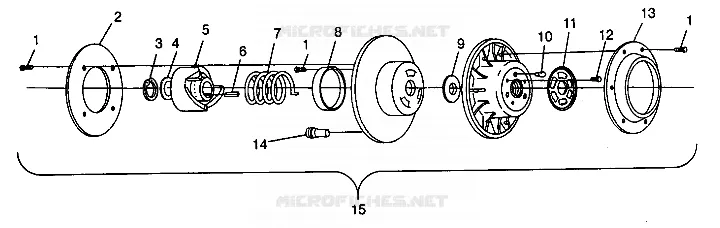

Find the detailed DRIVEN CLUTCH ASSEMBLY 440 XCR SP 0941660 (4927082708024A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
