SUSPENSION ASSEMBLY XLT SP 0940667 (4925022502021A)
5
Parts Diagram
Parts Catalog
SUSPENSION ASSEMBLY XLT 0940767 XLT SKS 0940567 (4925022502019A)
by
FRONT TORQUE ARM XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502023A)
SUSPENSION ASSEMBLY XLT SP 0940667 (4925022502021A)
1
RAIL ASM LH.
1540795
9999999
Not Available
1
RAIL ASSEMBLY RIGHT
1540796
9999999
Not Available
2
SPACER INNER IDLER
5010169
9999999
Not Available
3
WHEEL; IDLER
1594021
9999999
Not Available
4
SPACER CTR IDLER
5010168
9999999
Not Available
5
SHAFT IDLER
5020722
9999999
Not Available
6
BUSHING
7556301
$6,29 Unit Price incl. VAT
7
ARM R.PIVOT BLK.
1540721067
Not Available
8
PIVOT ARM SHAFT
5020723
$47,24 Unit Price incl. VAT
9
ADJUSTER BOLT
7515455
9999999
Not Available
10
NUT
7542440
7542404
$3,14 Unit Price incl. VAT
11
BLOCK-IDLER BOLT ADJ.
5130530
$62,99 Unit Price incl. VAT
12
SPACER-IDLER-OUTER
5332641
9999999
Not Available
13
BOLT(10)
7515526
7517731
$2,09 Unit Price incl. VAT
14
WASHER FLAT
7555732
9999999
Not Available
15
RIVET
7621501
$4,19 Unit Price incl. VAT
16
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
17
NYLOK NUT
7542525
$9,44 Unit Price incl. VAT
18
NUT LOCK
7542403
9999999
Not Available
19
FLAT WASHER
7555852
$4,19 Unit Price incl. VAT
20
WHEEL SPACER
5333116
$13,64 Unit Price incl. VAT
21
BOLT
7512538
9999999
Not Available
22
IDLER WHEEL; 5.35 IN
1543018
$115,49 Unit Price incl. VAT
23
BOLT
7512404
$7,34 Unit Price incl. VAT
24
SPRING ROLLER
5431366
$19,94 Unit Price incl. VAT
25
SPACER
5630399
$20,99 Unit Price incl. VAT
26
RIVET
7621476
$2,09 Unit Price incl. VAT
27
REINF.; BUMPER
5222629
9999999
Not Available
28
SCREW
7512227
$6,29 Unit Price incl. VAT
29
SLIDER BLK.
5521296
9999999
Not Available
30
COVER RAIL TIP
5431421
9999999
Not Available
31
RIVET(10)
7621435
$2,09 Unit Price incl. VAT
32
WHEEL INSERT
5431531
$19,94 Unit Price incl. VAT
33
RETAINING RING
7718407
$9,44 Unit Price incl. VAT
34
CHAINCASE BEARING
3514305
$34,64 Unit Price incl. VAT
35
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
36
BUMPER; RAIL
5810554
9999999
Not Available
37
PIVOT ARM SHAFT
5020724
9999999
Not Available
38
TRACK
5410746
9999999
Not Available

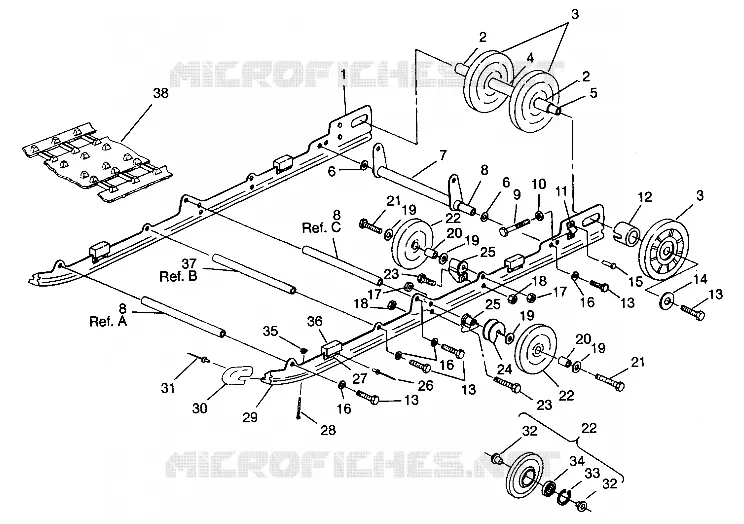

Find the detailed SUSPENSION ASSEMBLY XLT SP 0940667 (4925022502021A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
