1
Engine displacement
850
2
Year
2016
3
Trim
SPORTSMAN 850 SP
4
Parts Catalog
BRAKE LINES
5
Parts Diagram
Parts Catalog
HEADLIGHT POD
by
CHASSIS, MAIN FRAME
BRAKE LINES
1
1
1
1
2
2
3
3
4
5
6
7
8
8
9
10
11
11
12
12
13
13
14
15
16
17
1
SEAL
5413212
9999999
Not Available
2
BANJO BOLT; 10 MM X 1.00
1910499
$10,49 Unit Price incl. VAT
3
LINE-BRAKE POD TO J/B
1911393
$152,24 Unit Price incl. VAT
4
CROSS FITTING
7052372
9999999
Not Available
5
BRAKE LINE; REAR
1911678
1914132
$230,99 Unit Price incl. VAT
6
BRKT-JUNCTION BLOCK;COMMON
5257768
$19,94 Unit Price incl. VAT
7
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
8
CALIPER BRAKE LINE; FRONT
1911668
9999999
Not Available
9
SCREW
7512024
$9,44 Unit Price incl. VAT
10
LINE-BRAKE JB TO FT MC
1911669
1911669-CO
$157,49 Unit Price incl. VAT
11
BANJO BOLT; 10 MM X 1.25-6G
1910958
$14,69 Unit Price incl. VAT
12
WIRE/TUMB CLAMP; .25
7081246
$2,09 Unit Price incl. VAT
13
SCR-10-24X1/2 PH/TX/TRIRD/SEMB
7518176
$9,44 Unit Price incl. VAT
14
BOLT-M6X1.0X15 HXFLG TAP/R-OD
7518513
9999999
Not Available
15
CLAMP CABLE
7080499
$10,49 Unit Price incl. VAT
16
POP RIVET
7621330
$2,09 Unit Price incl. VAT
17
CLIP ROUTING .472 B.D. HINGED
7670116
$10,49 Unit Price incl. VAT

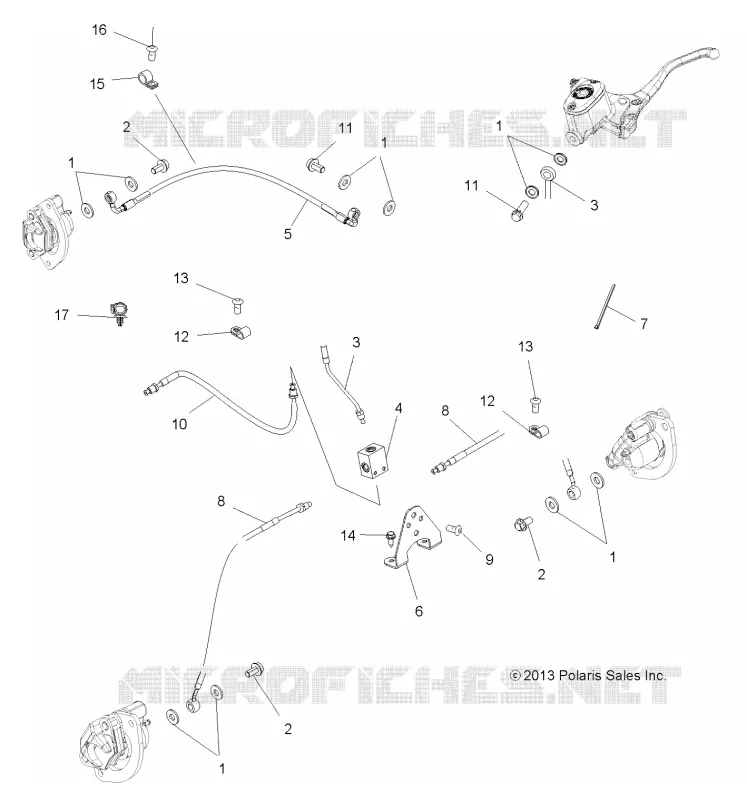

Find the detailed BRAKE LINES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
