FRONT SUSPENSION for POLARIS 800 DRAGON IQ from 2010

FRONT SUSPENSION

1

SCR-3/8-16X3.50 FLG HX GR8-Y

7518942

9999999

Not Available

2

SCR-3/8-16X3.25 FLG HX GR8-Y

7518384

$6,29 Unit Price incl. VAT

3

SHAFT-PIVOT

5135943

9999999

Not Available

4

FLANGED NUT; 3/8-16

7547180

$4,19 Unit Price incl. VAT

5

PIVOT BUSHING

5434932

$11,54 Unit Price incl. VAT

6

CONTROL ARM KIT; LOWER; LEFT; GS BLK

2203994067

Not Available

6

CONTROL ARM KIT; LOWER; RIGHT; GS BLK

2203995067

Not Available

7

RING-RETAINING 1.25 ID HSNG

7710539

$4,19 Unit Price incl. VAT

8

WASHER

7556153

$3,66 Unit Price incl. VAT

9

SCR-3/8-24X3.00 HXCP GR8-Y

7518478

$9,44 Unit Price incl. VAT

10

SPHERICAL BEARING KIT; LOWER

2203107

$74,54 Unit Price incl. VAT

11

NUT-3/8-24 HEX LOC;GR8

7547344

$1,56 Unit Price incl. VAT

12

NUT-JAM(10)

7542711

$4,19 Unit Price incl. VAT

13

SKI PIVOT BUSHING

5133983

$20,99 Unit Price incl. VAT

14

BUSHING PIVOT

5010158

$27,29 Unit Price incl. VAT

15

ASM-SPINDLE SP RH LWT

1823544

9999999

Not Available

15

ASM-SPINDLE SP LH LWT

1823543

9999999

Not Available

16

ROD END; 1/2; 30 DEG

7061145

$99,74 Unit Price incl. VAT

17

SCR-3/8-16X2.25 SOCHD SP-Y

7518428

$9,44 Unit Price incl. VAT

18

NUT

7547104

$2,09 Unit Price incl. VAT

19

CONTROL ARM KIT; UPPER; LEFT

2203019067

Not Available

19

CONTROL ARM KIT; UPPER; RIGHT; GS BLK

2203020067

Not Available

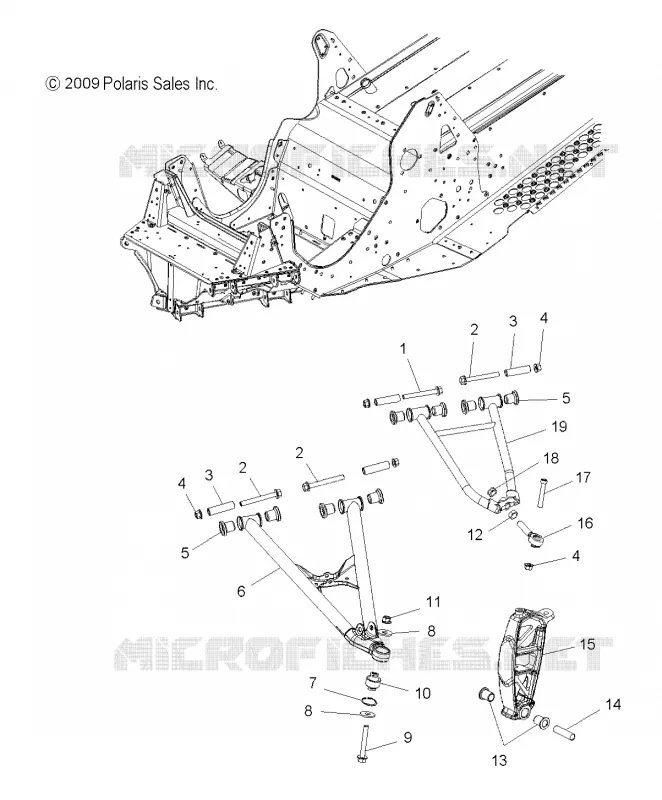

Find the detailed FRONT SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
