1
Engine displacement
800
2
Year
2014
3
Trim
RZR 4 800 - Z14XE7EAL/X
4
Parts Catalog
THROTTLE BODY AND VALVE COVER
5
Parts Diagram
Parts Catalog
THERMOSTAT
by
FRONT SUSPENSION CONTROL ARMS
THROTTLE BODY AND VALVE COVER
1
1
2
3
4
5
5
5
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
HEX FLANGE SCREW; 6 MM X 1.0 MM X 20 MM
7519224
$7,34 Unit Price incl. VAT
2
VALVE COVER
5137292
9999999
Not Available
3
REED W/ GASKET ASSEMBLY
3021352
$62,99 Unit Price incl. VAT
4
CLAMP HOSE
7081623
$5,76 Unit Price incl. VAT
5
IDLE AIR CONTROL HARNESS KIT
2878507
$272,99 Unit Price incl. VAT
5
IDLE SPEED CONTROL (ISC) STEPPING MOTOR
3131629
$320,24 Unit Price incl. VAT
5
THROTTLE POSITION SENSOR ASSEMBLY
3131705
$367,49 Unit Price incl. VAT
5
THROTTLE BODY ASSEMBLY
1204195
$1 018,49 Unit Price incl. VAT
5
SCREW
3131628
$9,44 Unit Price incl. VAT
6
BREATHER COVER GASKET
5813659
$3,66 Unit Price incl. VAT
7
CRANK POSITION SENSOR
2410720
$220,49 Unit Price incl. VAT
8
VALVE COVER SEAL
5413874
$57,74 Unit Price incl. VAT
9
CASE COVER; BREATHER; DIE CAST
5438320
$16,79 Unit Price incl. VAT
10
BOLT(1)
7516603
$19,94 Unit Price incl. VAT
11
RC7YC3 SPARK PLUG
3021671
$7,34 Unit Price incl. VAT
12
THROTTLE BODY ADAPTER
5413766
$173,24 Unit Price incl. VAT
13
SCR-SH-M8X1.25X30 8.8 ZY
7519232
$7,34 Unit Price incl. VAT
14
SCREW
3130924
$3,14 Unit Price incl. VAT
15
COVER-THROTTLE CAM
5253974
9999999
Not Available
16
TMAP SENSOR
2411528
$178,49 Unit Price incl. VAT
17
THROTTLE CAM COVER O-RING
5413898
$20,99 Unit Price incl. VAT
18
SCREW M6 X 1.0; L-20MM
7516822
$4,19 Unit Price incl. VAT

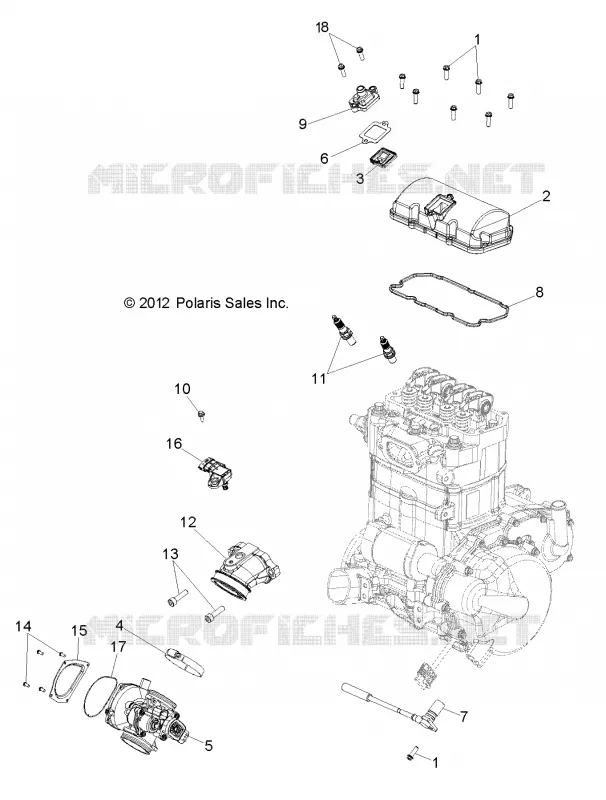

Find the detailed THROTTLE BODY AND VALVE COVER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
