Engine displacement
500
2
Year
2009
3
Trim
SCRAMBLER 500 4X4 - A09BG50AA
4
Parts Catalog
COOLING SYSTEM
5
Parts Diagram
Parts Catalog
SWITCHES AND SENSORS AND CONTROL MODULES
by
ENGINE, CRANKSHAFT AND PISTON
COOLING SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
16
17
18
19
19
20
21
22
23
24
25
26
27
28
29
1
2
3
4
5
5
6
7
8
9
10
11
12
13
1
DESC NOT_AVAILABLE
7517656
Not Available
2
FAN AND MOTOR ASSEMBLY SPAL
2410430
9999999
Not Available
3
CLIP U
7670111
9999999
Not Available
4
FAN SHROUD
5434043
9999999
Not Available
5
GASKET
5810279
$4,19 Unit Price incl. VAT
6
OVERFLOW BOTTLE WITH FITTING CAP
5437635
$9,44 Unit Price incl. VAT
7
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
8
SURGE TANK
5433410
9999999
Not Available
9
SCREW
7512084
$2,09 Unit Price incl. VAT
10
FITTING 90 DEGREE
7052065
$13,64 Unit Price incl. VAT
11
FUEL LINE; 1/4 ID
84500031525
Not Available
12
SPACER
5020937
9999999
Not Available
13
MOUNT; RUBBER
3110032
9999999
Not Available
14
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
15
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
16
HOSE CLAMP
7080614
$13,64 Unit Price incl. VAT
17
UPPER ENGINE HOSE
5411985
9999999
Not Available
18
GUARD-HOSE 12
5521511
9999999
Not Available
19
CLAMP-ROTO CLIP
7080826
9999999
Not Available
20
PRESSURE CAP 13 LB
1240093
9999999
Not Available
21
RADIATOR
1240177
9999999
Not Available
22
BOLT
7512240
9999999
Not Available
23
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
24
VALVE-PLASTIC DRAIN
7052296
9999999
Not Available
25
RADIATOR MOUNT BUSHING; LOWER
5410584
$10,49 Unit Price incl. VAT
26
CABLE TIE MOUNT; .25
7080965
$13,64 Unit Price incl. VAT
27
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
28
PLASTIC HOSEGUARD 18
5521550
9999999
Not Available
29
LOWER ENGINE HOSE
5411989
9999999
Not Available

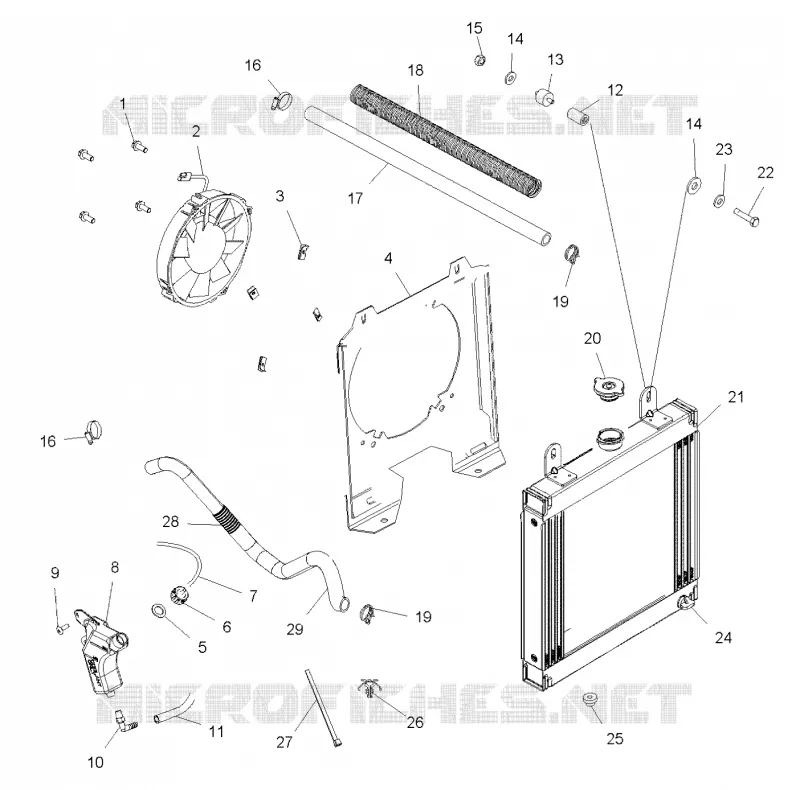

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
