Engine displacement
500
2
Year
2004
3
Trim
500 WIDETRAK LX
4
Parts Catalog
WATER PUMP/FUEL PUMP
5
Parts Diagram
Parts Catalog
PISTON CRANKSHAFT
by
CARBURETOR
WATER PUMP/FUEL PUMP
1
SCREW&WASHER ASM.(10)
3084221
9999999
Not Available
2
O-RING
3082746
9999999
Not Available
3
CASING PUMP 2
3083683
9999999
Not Available
4
BOLT&WASHER ASM.
3083370
9999999
Not Available
5
GASKET WATER PUMP
3083367
9999999
Not Available
6
WATERPUMP
3083471
9999999
Not Available
7
BELT
3082747
9999999
Not Available
8
PULLEY
3083371
9999999
Not Available
9
SCREW AND WASHER
3084591
9999999
Not Available
10
DIAPHRAGM GASKET SET
3084590
9999999
Not Available
11
ASM. FUEL PUMP NON-ASBESTOS
3085490
9999999
Not Available

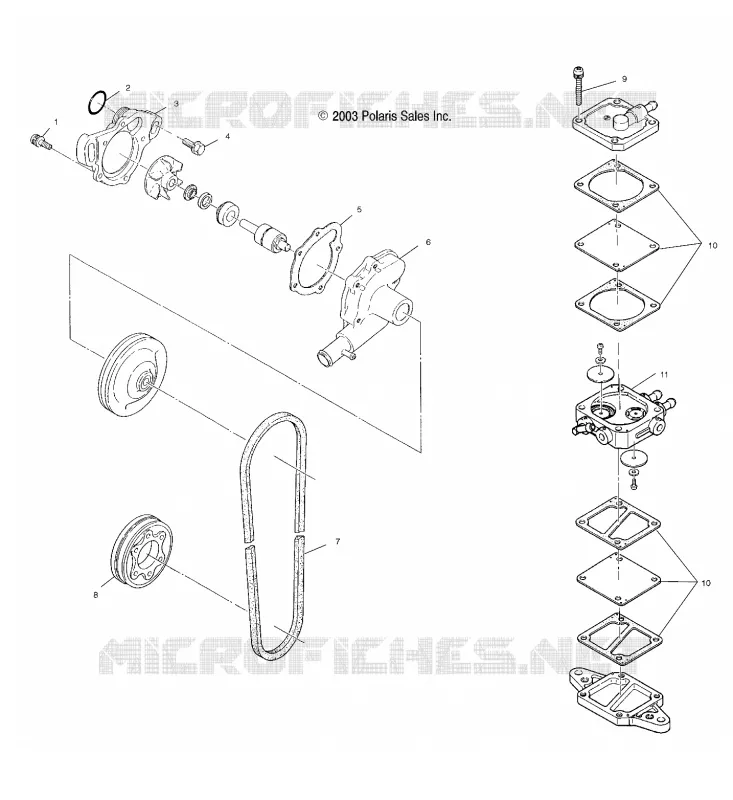

Find the detailed WATER PUMP/FUEL PUMP POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
