REAR SUSPENSION for POLARIS 800 DRAGON SWITCHBACK from 2010

REAR SUSPENSION

1

CLIP-TRACK FLAT 012-0107 (10

5251273

$18,89 Unit Price incl. VAT

1

TRACK 136 X 1.25 RIPSAW

2875639

9999999

Not Available

1

LONG GUIDE TRACK CLIP

5251274

$13,64 Unit Price incl. VAT

2

NYLOK NUT

7547263

$6,29 Unit Price incl. VAT

3

H-BRACKET WELD; BLACK

1542465329

Not Available

4

SLEEVE .385 X .560 X 1.72

5333906

$27,29 Unit Price incl. VAT

5

BUSHING

5134600

9999999

Not Available

5

SHOCK PIVOT;BLK

1542059067

Not Available

6

SCREW

7515417

9999999

Not Available

7

WASHER .406 X 1.25 X .125

7556130

$11,54 Unit Price incl. VAT

8

BEARING-.7874X1.6535X.4724 NTN

3514384

3515142

$34,64 Unit Price incl. VAT

8

WHEEL SPOKE ASSEMBLY; 7.25

1590459

$82,94 Unit Price incl. VAT

8

RETAINING RING

7710444

$15,74 Unit Price incl. VAT

9

SPACER; IDLER

5432535

$20,99 Unit Price incl. VAT

10

BUSHING

7555918

$3,14 Unit Price incl. VAT

11

IDLER SPACER; LONG

5333285

$20,99 Unit Price incl. VAT

12

ILDER SHAFT

5020744

9999999

Not Available

13

BUMPER-PIVOT LAMINATE

5413387

9999999

Not Available

14

BOLT 3/8-16X1.25(10)

7517731

$2,09 Unit Price incl. VAT

15

SCR-3/8-24X9.875 HX/LP GR8-Y

7517921

$41,99 Unit Price incl. VAT

16

WASHER .390 IN X .750 IN X .0

7556188

9999999

Not Available

17

WASHER FLAT(10)

7555893

$1,56 Unit Price incl. VAT

18

REAR PIVOT ARM;4.00;BLK

1541928067

Not Available

19

SHAFT

5333404

$47,24 Unit Price incl. VAT

20

LUBRICATION FITTING

7080424

$9,44 Unit Price incl. VAT

21

WASHER .483X1.37X.083

7556156

$9,44 Unit Price incl. VAT

22

SCR-7/16-20X9.875 HXHD GR5-Y

7518339

$15,74 Unit Price incl. VAT

23

SCR-3/8-16X1.50-HX/CP-GR5-P80Y

7518005

$5,76 Unit Price incl. VAT

24

SHAFT-C BORE;.688X8.665;2045

5134078

$62,99 Unit Price incl. VAT

25

SHAFT .795 X 8.665

5134517

$52,49 Unit Price incl. VAT

26

NUT FLANGE

7542522

$10,49 Unit Price incl. VAT

27

SPRING LOCK WASHER

7552603

$1,56 Unit Price incl. VAT

28

COUPLER BLOCK SHAFT

5134796

9999999

Not Available

29

SCREW

7515551

9999999

Not Available

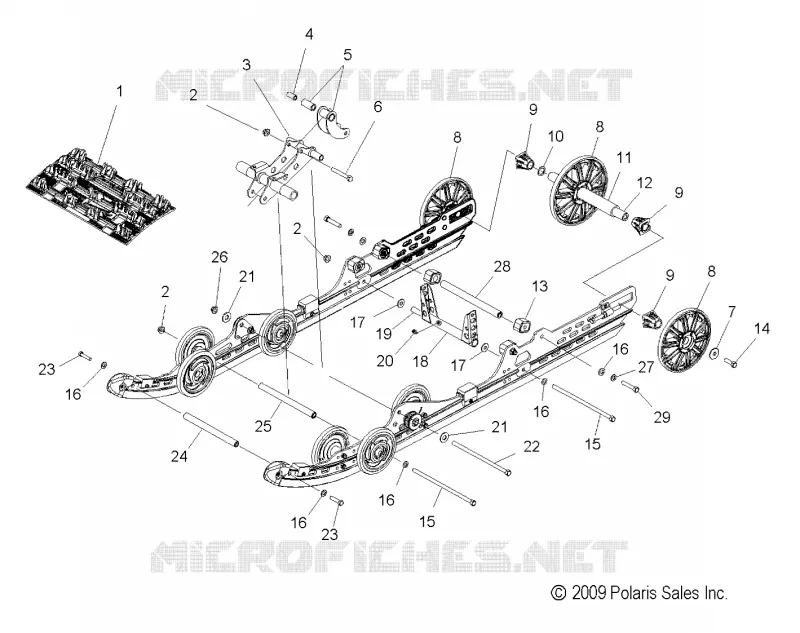

Find the detailed REAR SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
