1
Engine displacement
440
2
Year
1994
3
Trim
EURO 440 - E942760
4
Parts Catalog

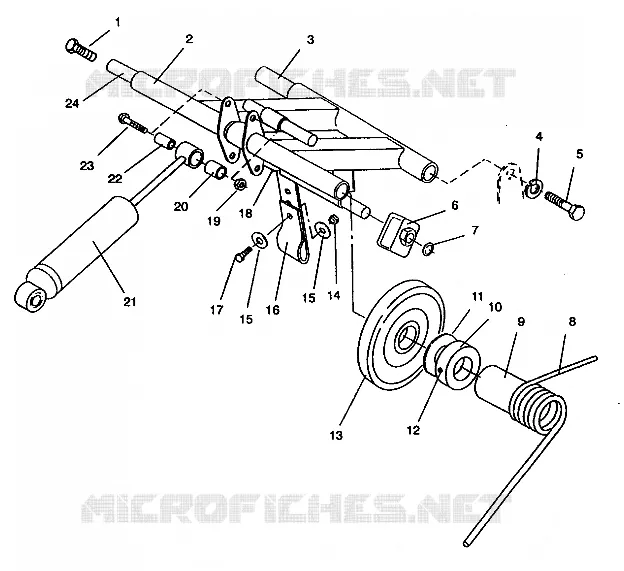

REAR TORQUE ARM 440 E942760 AND 440 SKS E942560 (49273927390026)
5
Parts Diagram
Parts Catalog
FRONT TORQUE ARM 440 E942760 AND 440 SKS E942560 (49273927390025)
by
DRIVE CLUTCH ASSEMBLY 440 E942760 AND 440 SKS E942560 (49273927390027)
REAR TORQUE ARM 440 E942760 AND 440 SKS E942560 (49273927390026)
1
2
3
4
5
6
7
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
1
2
3
4
5
6
7
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
1
BOLT(10)
7515432
9999999
Not Available
2
ARM R.TORQUE BLK.
1540723067
Not Available
3
SHAFT R.TORQUE ARM
5020721
Not Available
4
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
5
BOLT(10)
7515458
7512492
$2,09 Unit Price incl. VAT
6
ROLLER SPRING ADJUSTED
5431168
9999999
Not Available
7
PUSH ON CLIP
7080394
$4,19 Unit Price incl. VAT
8
SPRINGRHR.R.SUSPBLK.437
7041340067
Not Available
8
SPRING LH R.R.SUSP BLK .421
7041337067
Not Available
8
SPRING RH R.R.SUSP BLK .421
7041338067
Not Available
8
SPRING LH R.R.SUSP BLK .437
7041339067
Not Available
9
SPACER SPRING
5431422
Not Available
10
COLLAR-BRG. LOCK
5010155
9999999
Not Available
11
WAVE WASHER
7571605
$11,54 Unit Price incl. VAT
12
SCREW-SOCKETSET
7512257
$7,34 Unit Price incl. VAT
13
CARRIER WHEEL
1543023
9999999
Not Available
14
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
15
WASHER(10)
7558221
$4,19 Unit Price incl. VAT
16
STRAP LIMITER
5410587
9999999
Not Available
17
BOLT
7512247
9999999
Not Available
18
SPACER CAM
5333133
Not Available
19
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
20
BUSHING
5430537
$7,34 Unit Price incl. VAT
21
SHOCK R.TORQUE ARM
7041331
9999999
Not Available
22
BUSHING R.SHOCK
5333030
9999999
Not Available
23
BOLT
7512329
$7,34 Unit Price incl. VAT
24
SHAFT MTG REAR
5020570
9999999
Not Available

Find the detailed REAR TORQUE ARM 440 E942760 AND 440 SKS E942560 (49273927390026) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
