Engine displacement
500
2
Year
2004
3
Trim
A04BG50AA SCRAMBLER 500 4X4 - A04BG50AA/FA
4
Parts Catalog
AIR BOX
5
Parts Diagram
Parts Catalog
REAR HOUSING
by
CYLINDER
AIR BOX
1
2
3
4
5
6
7
8
9
9
9
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
1
2
3
4
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
25
26
27
28
29
1
SCREW SEMS
7517541
9999999
Not Available
2
DUCT INLET
5432859
9999999
Not Available
3
INTAKE GASKET
5411422
$10,49 Unit Price incl. VAT
4
AIRBOX COVER
5432868
9999999
Not Available
5
SEAL COVER
5811482
5813949
$52,49 Unit Price incl. VAT
6
SCREW
7515179
$4,19 Unit Price incl. VAT
7
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
8
LINE BREATHER 3/8 ID.
8450073600
Not Available
9
HOSE CLAMP
7080699
$3,14 Unit Price incl. VAT
10
BREATHER FILTER IN LINE
2530029
9999999
Not Available
11
CLAMP HOSE SPRING
7080694
$10,49 Unit Price incl. VAT
12
FORMED BREATHER HOSE WITH CHAFE
5411847
9999999
Not Available
13
NARROW BAND CLAMP
7080511
$9,44 Unit Price incl. VAT
14
BOOT CARB HYBRID
5411414
9999999
Not Available
15
CLAMP BAND; NARROW
7080413
$5,76 Unit Price incl. VAT
16
DUCT CARBURETOR INLET
5432473
9999999
Not Available
17
CARBURETOR INLUET DUCT GASKET
5830128
9999999
Not Available
18
AIR BOX
5432774
9999999
Not Available
19
HOSE BRTHR SLIT 63CM 3/8I.D
5411873
9999999
Not Available
20
RIVET 3/16 X .402
7621432
$2,09 Unit Price incl. VAT
21
CLAMP-HOSE .625 DIA VNL COATED
7080880
$10,49 Unit Price incl. VAT
22
FOIL
5811650
9999999
Not Available
23
PLUG TRAP
5432377
9999999
Not Available
24
FUEL LINE
8450059150
Not Available
25
CLAMP HOSE
7080650
$7,34 Unit Price incl. VAT
26
CLIP
5242044
$17,84 Unit Price incl. VAT
27
COLLAR CARBURETOR INLET
5432601
9999999
Not Available
28
FILTER AIR
7080595
7083107
$51,23 Unit Price incl. VAT
29
PRECLEANER FILTER SLEEVE
5811633
$19,20 Unit Price incl. VAT

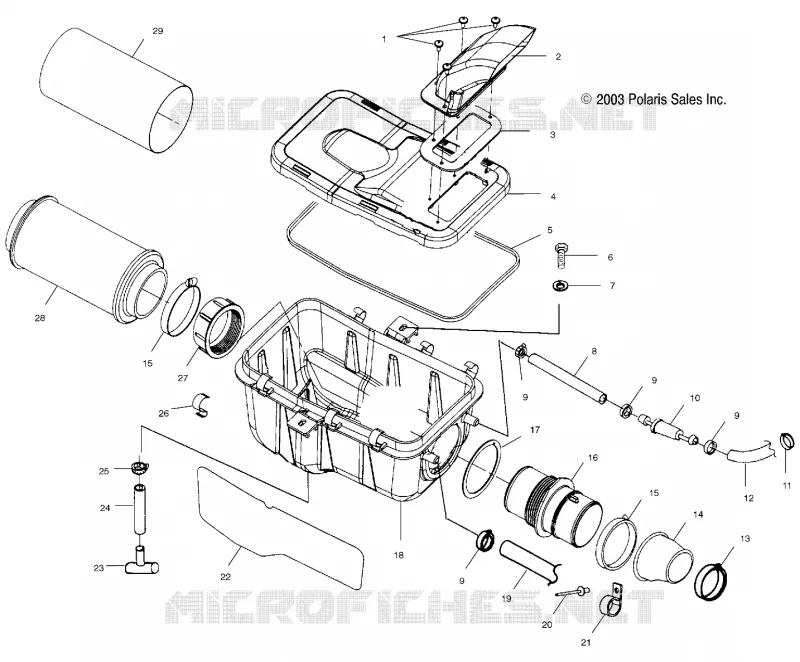

Find the detailed AIR BOX POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
