Engine displacement
700
2
Year
2003
3
Trim
SPORTSMAN 700 - A03CH68AA/AC/AF/AH/AL
4
Parts Catalog
CRANKSHAFT AND PISTON
5
Parts Diagram
Parts Catalog
CYLINDER AND CYLINDER HEAD
by
COOLING SYSTEM
CRANKSHAFT AND PISTON
1
2
2
3
3
4
5
6
7
8
9
10
11
1
2
3
4
5
6
7
8
9
9
10
11
1
PISTON KIT
2202107
$256,19 Unit Price incl. VAT
2
PISTON CIRCLIP
3022996
9999999
Not Available
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
PISTON RINGS KIT; 80 MM
2202127
9999999
Not Available
5
KIT-CRANKSHAFT 680 ATV 02
2202109
9999999
Not Available
6
WOODRUFF KEY
7721117
$47,24 Unit Price incl. VAT
7
Gear Crankshaft
5133220
Not Available
8
HEX FLANGE SCREW; 8 MM X 1.25 MM X 45 MM
7517865
$20,99 Unit Price incl. VAT
9
WASHER RETAINING 8.5X28X3
7555982
7558715
$26,24 Unit Price incl. VAT
10
WOODRUFF KEY #404
7721131
$41,99 Unit Price incl. VAT
11
BALANCE SHAFT
5132396
9999999
Not Available

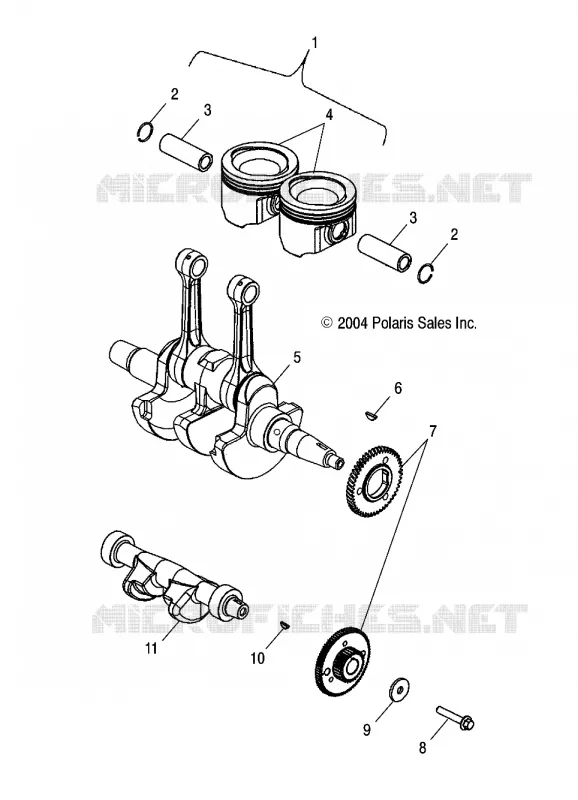

Find the detailed CRANKSHAFT AND PISTON POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for SPORTSMAN 700 - A03CH68AA/AC/AF/AH/AL
