1
Engine displacement
autre
2
Year
1994
3
Trim
SPORT SKS - 0940243
4
Parts Catalog
NOSEPAN ASSEMBLY SPORT 0940443 AND SPORT SKS 0940243 (4925052505006A)
5
Parts Diagram
Parts Catalog
TUNNEL ASSEMBLY SPORT 0940443 (4925052505001A)
by
HOOD ASSEMBLY SPORT 0940443 AND SPORT SKS 0940243 (4925052505007A)
NOSEPAN ASSEMBLY SPORT 0940443 AND SPORT SKS 0940243 (4925052505006A)
1
TAPE FOIL PAN#4
5810494
9999999
Not Available
2
TAPE FOIL PAN#2
5810492
Not Available
3
TAPE FOIL PAN#1
5810491
9999999
Not Available
4
TAPE FOIL PAN#5
5810495
9999999
Not Available
5
TAPE FOIL PAN#3
5810493
9999999
Not Available
6
TAPE FOIL PAN#8
5810498
9999999
Not Available
7
TAPE FOIL PAN#6
5810496
9999999
Not Available
8
TAPE FOIL PAN#7
5810497
9999999
Not Available
9
SCREW
7512017
9999999
Not Available
10
COVER TOOL BOX
5430719
9999999
Not Available
11
FOAM - TOOL BOX
5810266
9999999
Not Available
12
BOX-TOOL
5430716
9999999
Not Available
13
PIN-CLUTCH COVER
7080216
7080698
$17,84 Unit Price incl. VAT
14
GUARD CLUTCH
5230118
5240965
Not Available
15
DECAL ENG/CLUTCH [No Longer Available]
7072871
Not Available
16
PALNUT(10)
7670009
9999999
Not Available
17
LOUVERED GRILL; GLOSS BLACK
5430958070
Not Available
18
PIN FRONT
7080311
9999999
Not Available
19
HINGE
5211047
9999999
Not Available
20
CLIP WIRING
4020035
9999999
Not Available
21
POP RIVET
7621402
$2,09 Unit Price incl. VAT
22
RIVET(10)
7621435
$2,09 Unit Price incl. VAT
23
POP RIVET
7621330
$2,09 Unit Price incl. VAT
24
BRACKET; HINGE
5220406
5241437
Not Available
25
WASHER 13/64X1/2X18GA FL-Y (10
7558212
$1,56 Unit Price incl. VAT
26
CONE NOSE BLK.METAL.
54309311034
Not Available
27
SCREW
7512279
$1,56 Unit Price incl. VAT
28
BUMPER FRONT
5224333067
Not Available
29
SCREW
7511863
9999999
Not Available
30
EMBLEMPOLARISBLUE
5430979077
Not Available
31
CAP BUMPER BLK.
5430930070
Not Available
32
SCREW(10)
7512102
$6,29 Unit Price incl. VAT
33
CAP; TOWER
5020517
9999999
Not Available
34
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
35
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
36
RIVET
7621467
$2,09 Unit Price incl. VAT

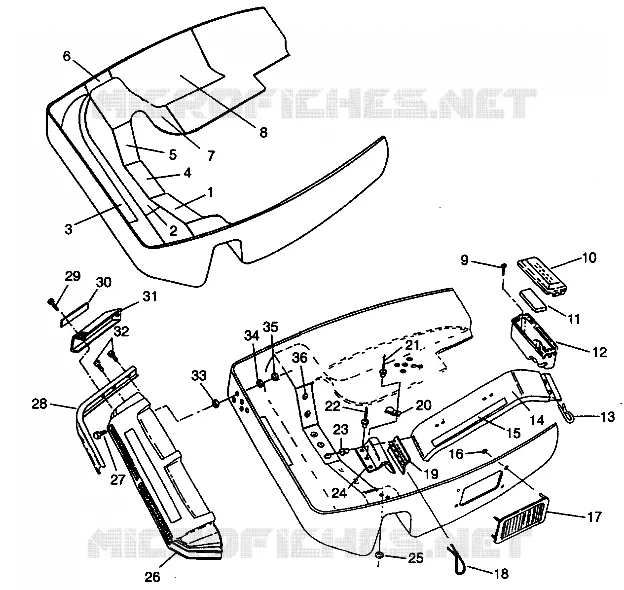

Find the detailed NOSEPAN ASSEMBLY SPORT 0940443 AND SPORT SKS 0940243 (4925052505006A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
