Parts Catalog
REAR TORQUE ARM TRAIL 0962761 (4931763176C007)
5
Parts Diagram
Parts Catalog
FRONT TORQUE ARM TRAIL TOURING 0962262, AND EUROPEAN TRAIL TOURING E962262 (4931763176C006)
by
REAR TORQUE ARM TRAIL TOURING 0962262, AND EUROPEAN TRAIL TOURING E962262 (4931763176C008)

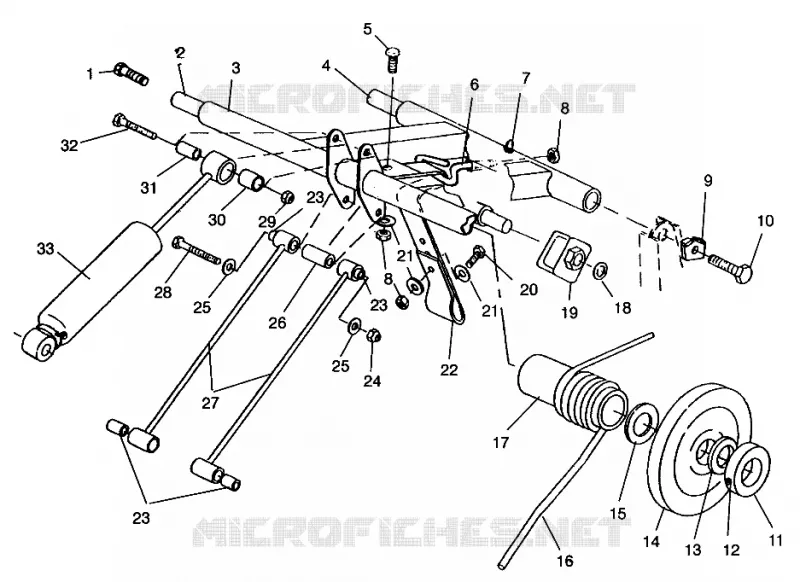

REAR TORQUE ARM TRAIL 0962761 (4931763176C007)
1
BOLT(10)
7515432
9999999
Not Available
2
SHAFT R.TORQUE UPPER
5020845
9999999
Not Available
3
ARMR.TORQUEBLK
1541024067
Not Available
4
SHAFT LOW RR TORQUE
5020843
9999999
Not Available
5
CARRIAGE BOLT
7512377
$9,44 Unit Price incl. VAT
6
EYE BOLT
7010050
9999999
Not Available
7
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
8
FLANGE NUT
7542321
$2,09 Unit Price incl. VAT
9
LOCK;BOLT;MECHANICAL
5211649
9999999
Not Available
10
BOLT(10)
7515526
7517731
$2,09 Unit Price incl. VAT
11
COLLAR-BRG. LOCK
5010155
9999999
Not Available
12
SCREW-SOCKETSET
7512257
$7,34 Unit Price incl. VAT
13
WASHER; THRUST
7555862
9999999
Not Available
14
CARRIER WHEEL
1543023
9999999
Not Available
15
WASHER THRUST
7555787
9999999
Not Available
16
TORISON SPRING; RIGHT; .421 DIA
7041462067
Not Available
16
SPRING LH TORS(.406DIA)
7041463067
Not Available
16
SPRING RH TORS(.406DIA)
7041464067
Not Available
16
SPRING LH TORS(.421DIA)
7041461067
Not Available
17
TORSION SPRING SLEEVE
5431923
9999999
Not Available
18
PUSH ON CLIP
7080394
$4,19 Unit Price incl. VAT
19
ROLLER SPRING ADJUSTED
5431168
9999999
Not Available
20
BOLT
7515307
$7,34 Unit Price incl. VAT
21
WASHER
7555716
$3,14 Unit Price incl. VAT
22
STRAP LIMITER
5411061
9999999
Not Available
23
PIVOT TUBE BUSHING
5020561
9999999
Not Available
24
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
25
WAVE SPRING WASHER
7555795
$2,09 Unit Price incl. VAT
26
SPACER
5333420
9999999
Not Available
27
ROD SHOCK
1541015067
Not Available
28
BOLT
7515472
$4,19 Unit Price incl. VAT
29
NUT FLEX-LOC
7542303
9999999
Not Available
30
BUSHING
5430537
$7,34 Unit Price incl. VAT
31
BUSHING R.SHOCK
5333030
9999999
Not Available
32
BOLT
7512329
$7,34 Unit Price incl. VAT
33
SHOCK GAS ADJ R.TRACK
7041441
9999999
Not Available

Find the detailed REAR TORQUE ARM TRAIL 0962761 (4931763176C007) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
