Engine displacement
570
2
Year
2017
3
Trim
SPORTSMAN 570 EFI
4
Parts Catalog
SUSPENSION, A-ARM AND STRUT MOUNTING
5
Parts Diagram
Parts Catalog
STEERING, HANDLEBAR CONTROLS
by
DRIVE TRAIN, MAIN GEARCASE
SUSPENSION, A-ARM AND STRUT MOUNTING
1
1
1
1
2
3
4
4
5
6
7
8
8
9
10
10
11
11
1
2
3
3
3
4
5
6
6
7
8
9
10
11
1
FLARED A-FRAME WELD; RIGHT; GS BLK
1542162067
Not Available
1
FLARED A-FRAME WELD; LEFT; GS BLK
1542161067
Not Available
1
A-ARM WELD; FLARED; RIGHT; MATTE BLACK
1542162458
Not Available
1
A FRAME WELD; FLARED; LEFT; MATTE BLACK
1542161458
Not Available
2
C BORE A-ARM SHAFT
5139929
$52,49 Unit Price incl. VAT
3
BALL JOINT BOOT; GREASLESS
5412658
$9,44 Unit Price incl. VAT
4
A-ARM BUSHING; LONG; 102.36 MM
5436973
$9,44 Unit Price incl. VAT
5
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
6
CASTLE NUT
7542438
$3,14 Unit Price incl. VAT
7
COTTER PIN
7661203
$2,09 Unit Price incl. VAT
8
CV SHIELD FRONT RIGHT SIDE GLOSS BLACK
5435029070
Not Available
8
CV SHIELD; FRONT; LEFT SIDE; GLOSS BLACK
5435028070
Not Available
9
SCREW
7512084
$2,09 Unit Price incl. VAT
10
SCR-3/8-24X1 3/4HXGR5P30Y
7520340
7521149
$6,29 Unit Price incl. VAT
11
WASHER
7556153
$3,66 Unit Price incl. VAT

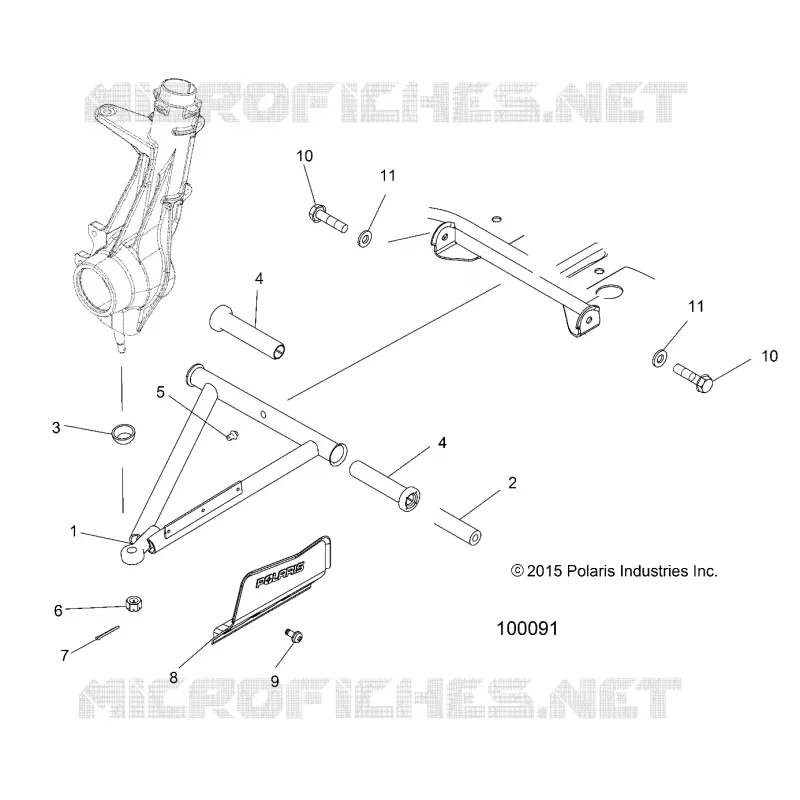

Find the detailed SUSPENSION, A-ARM AND STRUT MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
