1
Engine displacement
850
2
Year
2019
3
Trim
850 PRO-RMK 155 / SC SELECT
4
Parts Catalog
REAR SUSPENSION
5
Parts Diagram
Parts Catalog
STEERING, HANDLEBAR MOUNTING
by
DRIVE TRAIN, CLUTCH, PRIMARY
REAR SUSPENSION
10
11
12
12
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
26
26
27
28
28
1
SCR-M10X1.5X35 TX/TRUSS ZODP30
7520369
$11,54 Unit Price incl. VAT
2
HEX FLANGE SCREW; 10 MM X 1.5 MM X 40
7519216
$9,44 Unit Price incl. VAT
3
WSHR FLAT INN DIA 10.5 OUT DIA
7556155
$9,44 Unit Price incl. VAT
4
SFT-M10X1.5IDX17.47ODX220.1 LG
5136572
$52,49 Unit Price incl. VAT
5
FTS CROSS SHAFT ASSEMBLY
1543897
$120,74 Unit Price incl. VAT
6
WASHER WAVE
7555735
$7,34 Unit Price incl. VAT
7
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
8
WASHER 10.5 X 24 X 1.2446
7556545
$6,29 Unit Price incl. VAT
9
IDLER SHAFT; REAR
5139411
$194,24 Unit Price incl. VAT
10
SPACER; IDLER
5432535
$20,99 Unit Price incl. VAT
11
BUSHING
7555918
$3,14 Unit Price incl. VAT
12
BEARING-.7874X1.6535X.4724 NTN
3514384
3515142
$34,64 Unit Price incl. VAT
12
RETAINING RING
7710444
$15,74 Unit Price incl. VAT
12
ASM-WHEEL WEB 7.25 6004 BLK
1590431070
Not Available
13
CENTER IDLER SPACER; LIGHTWEIGHT
5338618
$13,64 Unit Price incl. VAT
14
IDLER SPACER
5436496
$11,54 Unit Price incl. VAT
15
WSHR-DOMED 29X13X3 ZC DIN6796
7556929
$7,34 Unit Price incl. VAT
16
HEX FLANGE SCREW 12 MM X 1.75 MM X 35 MM
7520123
$15,74 Unit Price incl. VAT
17
HEX FLANGE SCREW 10MM X 1.25MM X 250MM
7519327
$36,74 Unit Price incl. VAT
18
CROSS SHAFT; MACHINED
5139172
$47,24 Unit Price incl. VAT
19
SCR-HXFL M6X1.0X150 8.8 ZOD
7519201
$36,74 Unit Price incl. VAT
20
PIVOT ARM WELD; REAR; BLACK
1542906329
Not Available
21
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
22
LUBRICATION FITTING
7080424
$9,44 Unit Price incl. VAT
23
CROSS SHAFT; RMK
5137418
$62,99 Unit Price incl. VAT
24
WSHR-.719X1.250X.065-Y
7556210
$7,34 Unit Price incl. VAT
25
INSIDE SPACER
5454201
$6,29 Unit Price incl. VAT
26
PLAIN BOGIE WHEEL ASSEMBLY; 3.25
1590537
$58,26 Unit Price incl. VAT
26
BEARING 6004
3514879
3515142
$34,64 Unit Price incl. VAT
26
RING-RTNG INT 3000X-165
7710560
$15,74 Unit Price incl. VAT
27
OUTSIDE SPACER
5454202
$6,29 Unit Price incl. VAT
28
TRACK; 155 X 3 SERIES 7
5415393
$2 297,39 Unit Price incl. VAT
28
155 X 2.6 IN SERIES 6 TRACK
5415391
$1 958,24 Unit Price incl. VAT

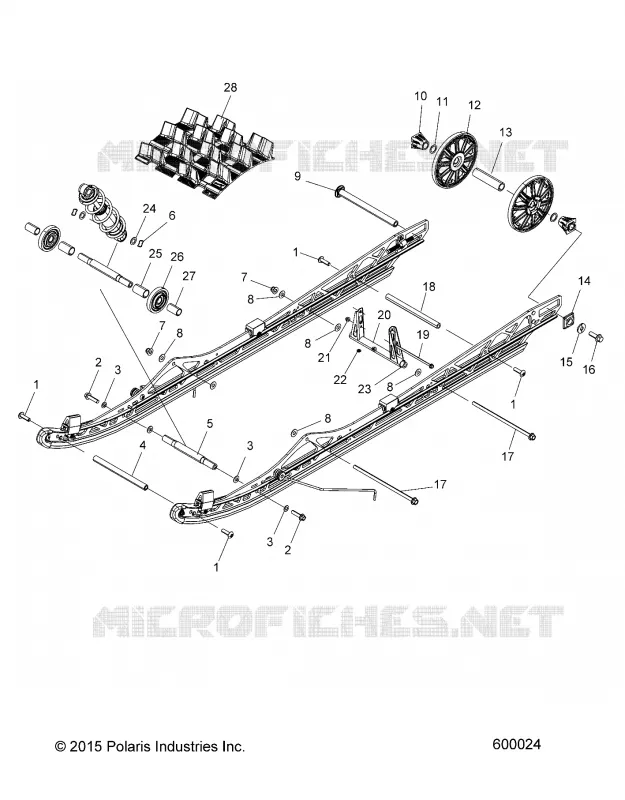

Find the detailed REAR SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
