COOLING SYSTEM for POLARIS SPORTSMAN 400 HO 4X4 - A12MH46AF/AX/AZ from 2012

COOLING SYSTEM

1

FAN AND MOTOR ASSEMBLY

2411330

$303,96 Unit Price incl. VAT

2

SCREW

7516827

$12,59 Unit Price incl. VAT

3

PRESSURE CAP

1240508

$89,24 Unit Price incl. VAT

4

SCREW

7512084

$2,09 Unit Price incl. VAT

5

FILLER NECK

5412402

$52,49 Unit Price incl. VAT

6

SPRINGBAND CLAMP; 27/12; GREEN

7080841

$13,64 Unit Price incl. VAT

7

FILLER NECK HOSE

5414228

$29,39 Unit Price incl. VAT

8

CLAMP HOSE 1.25 WORM DRIVE

7080696

$10,49 Unit Price incl. VAT

9

RADIATOR HOSE; LOWER

5414217

9999999

Not Available

10

CONDUIT-FLEX 1.00 ID PE 25CM

552179325

Not Available

11

CABLE TIE MOUNT; .25

7080965

$13,64 Unit Price incl. VAT

12

CONDUIT-FLEX 1.00 ID PE 25CM

552179325

Not Available

13

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

14

CABLE TIE; 11 IN

7080492

$5,24 Unit Price incl. VAT

15

RADIATOR HOSE; UPPER

5414218

9999999

Not Available

16

RADIATOR MOUNT BUSHING; LOWER

5410584

$10,49 Unit Price incl. VAT

17

SCREW

7515179

$4,19 Unit Price incl. VAT

18

VGT CARB RADIATOR ASSEMBLY; 324 X 300

1240522

9999999

Not Available

19

GROMMET AND INSERT ASSEMBLY

5413155

$7,34 Unit Price incl. VAT

20

FUEL LINE; 1/4 ID

84500031525

Not Available

21

FITTING 90 DEGREE

7052065

$13,64 Unit Price incl. VAT

22

SURGE TANK

5436936

$152,24 Unit Price incl. VAT

23

LINE FUEL 1/8 ID 600 CM.

8360009600

Not Available

24

OVERFLOW BOTTLE WITH FITTING CAP

5437635

$9,44 Unit Price incl. VAT

25

GASKET

5810279

$4,19 Unit Price incl. VAT

26

SPACER-6.6IDX19ODX15 NYL BLK

5137361

$10,49 Unit Price incl. VAT

27

THERMAL HARNESS SENSOR

4010808

9999999

Not Available

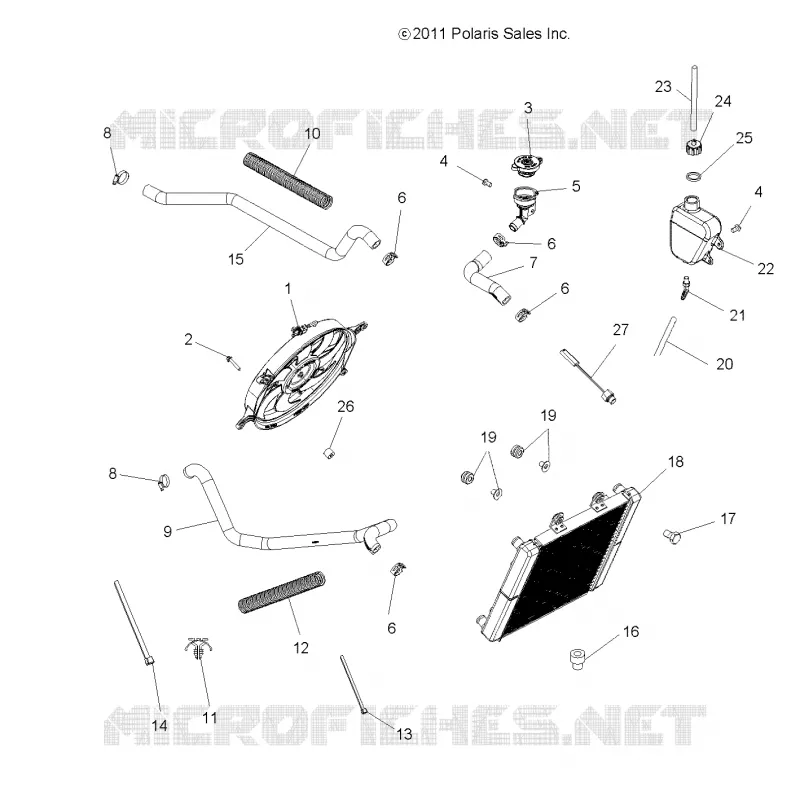

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
