Engine displacement
570
2
Year
2019
3
Trim
SPORTSMAN 570 X2 EPS EUN
4
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE
5

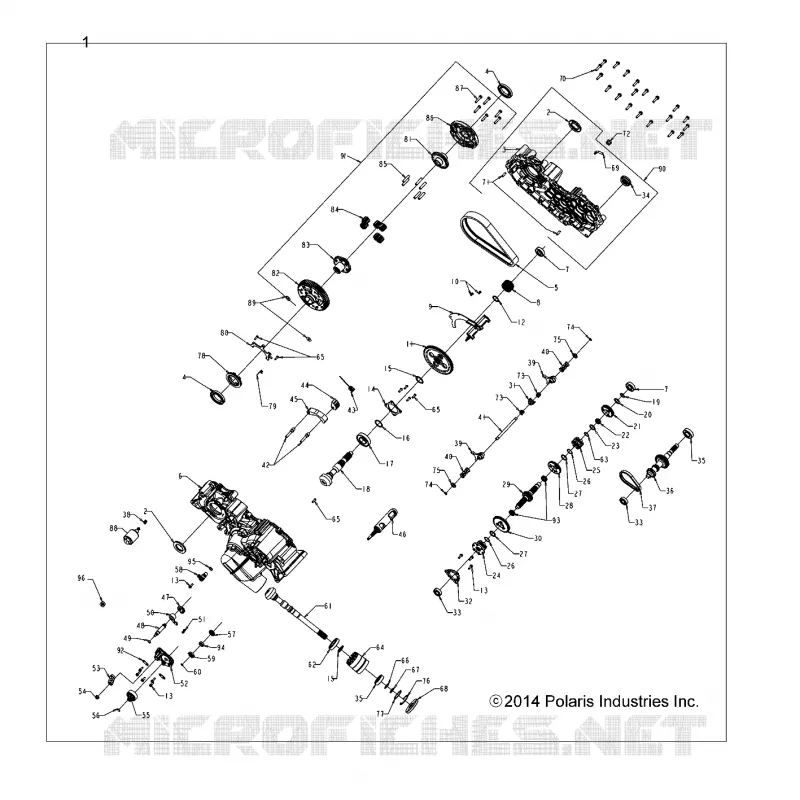

Parts Diagram
Parts Catalog
DRIVE TRAIN, FRONT PROP SHAFT
by
BATTERY
DRIVE TRAIN, MAIN GEARCASE
1
2
2
3
4
4
5
6
7
7
8
9
10
11
12
13
13
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
26
27
27
28
29
30
31
32
33
33
34
35
35
36
37
38
39
39
40
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
65
65
66
67
68
69
70
71
72
73
73
74
74
75
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
1
SINGLE TRANSMISSION DIFFERENTIATOR ASM
1333274
9999999
Not Available
2
TRIPLE LIP SEAL; 40 X 70 X 7
3234300
$57,74 Unit Price incl. VAT
3
COVER; LEFT
3234260
$803,24 Unit Price incl. VAT
4
BALL BEARING; 50 X 80 X 10
3234275
$47,24 Unit Price incl. VAT
5
CHAIN
3234057
$519,74 Unit Price incl. VAT
6
CASE-RH MACH
3236313
$960,74 Unit Price incl. VAT
7
BEARING
3233018
$47,24 Unit Price incl. VAT
8
SPROCKET; 19 TOOTH
3234060
$451,49 Unit Price incl. VAT
9
OIL DEFLECTOR
3234061
3239943
$52,49 Unit Price incl. VAT
10
SCREW
3233749
$10,49 Unit Price incl. VAT
11
GEAR OUTPUT
3234062
$493,49 Unit Price incl. VAT
12
RING-RETAINING
3233699
$13,64 Unit Price incl. VAT
13
SCREW TAPPINGHEXHEAD1/4-20X.75
3234247
$10,49 Unit Price incl. VAT
14
COVER-CENTER DRIVE BEARING
3234063
$62,99 Unit Price incl. VAT
15
RETAINING RING
3233364
$12,59 Unit Price incl. VAT
16
SHIM; 1.700 X 1.385
3234271
$47,24 Unit Price incl. VAT
17
BALL BEARNING
3234065
$80,84 Unit Price incl. VAT
18
PINION; 13T CENTER DRIVE
3234263
$818,99 Unit Price incl. VAT
19
RETAINING RING
3234067
$14,69 Unit Price incl. VAT
20
WASHER
3233176
$17,84 Unit Price incl. VAT
21
HELICAL GEAR; 35 TOOTH
3236032
$262,49 Unit Price incl. VAT
22
BEARING; NEEDLE
3233009
$68,24 Unit Price incl. VAT
23
WASHER
3233855
$19,94 Unit Price incl. VAT
24
DOG; L/P
3234257
$283,49 Unit Price incl. VAT
25
ENGAGEMENT DOG 6 FACE
3234258
$178,49 Unit Price incl. VAT
26
RETAINING RING
3233306
$9,44 Unit Price incl. VAT
27
THRUST WASHER; 1.300 X .995 X .065
3234248
$17,84 Unit Price incl. VAT
28
SPROCKET; 6-FACE; 38 TOOTH
3234290
$283,49 Unit Price incl. VAT
29
REVERSE SHAFT; 26 TOOTH
3234280
$488,24 Unit Price incl. VAT
30
GEAR; 33T 6-FACE
3234291
$325,49 Unit Price incl. VAT
31
SHIFT COLLAR
3234073
$57,74 Unit Price incl. VAT
32
PLATE-PARK 12 FACE
3233915
$73,49 Unit Price incl. VAT
33
BEARING; BALL; 17 X 40 X 12
3234274
$47,24 Unit Price incl. VAT
34
SEAL
3234851
$68,24 Unit Price incl. VAT
35
NEEDLE BEARING
3233017
$60,89 Unit Price incl. VAT
36
SHAFT-INPUT HELICAL 39T
3235526
$451,49 Unit Price incl. VAT
37
CHAIN; .25 P X .40 W X 50 L
3234264
$188,99 Unit Price incl. VAT
38
SPRING COMPRSSN.54ODX.44IDX.05
3234277
$26,24 Unit Price incl. VAT
39
SHIFT FORK
3234077
$335,99 Unit Price incl. VAT
40
COMPRESSION SPRING
3234078
$47,24 Unit Price incl. VAT
41
RAIL-SHIFT SHAFT
3234079
3235542
$52,49 Unit Price incl. VAT
42
DOWEL PIN
3233432
$13,64 Unit Price incl. VAT
43
TORISON SPRING
3233431
$47,24 Unit Price incl. VAT
44
CHAIN TENSIONER CAM
3233434
$26,24 Unit Price incl. VAT
45
CHAIN TENSIONER SHOE
3233433
$62,99 Unit Price incl. VAT
46
DRUM SHIFT
3234360
$335,99 Unit Price incl. VAT
47
SECTOR GEAR; 31 TOOTH CUT TO 11 TOOTH
3233832
$68,24 Unit Price incl. VAT
48
SHIFT SHAFT
3233831
$115,49 Unit Price incl. VAT
49
O-RING
3233869
$10,49 Unit Price incl. VAT
50
DETENT PAWL
3233829
$68,24 Unit Price incl. VAT
51
COMPRESSION DETENT SPRING
3234578
$26,24 Unit Price incl. VAT
52
GEARCASE COVER
3234188
$209,99 Unit Price incl. VAT
53
BELLCRANK 510 HOLE 92 DEGREE
3234584
$52,49 Unit Price incl. VAT
54
NUT-LOCK HEX FLANGE NYLON 5/16
3233961
$5,24 Unit Price incl. VAT
55
SWITCH-ROTARY 6 PIN
3233835
3236115
$225,74 Unit Price incl. VAT
56
RETAINING RING
3233834
$19,94 Unit Price incl. VAT
57
SECTOR GEAR; 16 TOOTH
3233839
$68,24 Unit Price incl. VAT
58
TRANSMISSION SPEED SENSOR
4013908
4082135
$204,74 Unit Price incl. VAT
59
DETENT STAR
3233909
$52,49 Unit Price incl. VAT
60
O-RING
3233076
$11,54 Unit Price incl. VAT
61
SNORKEL; 13 TOOTH
3234262
$608,99 Unit Price incl. VAT
62
BALL BEARING
3233265
$68,24 Unit Price incl. VAT
63
RING RETAINING BSCEXTERNAL0.84
3234336
$10,49 Unit Price incl. VAT
64
SNORKLE TUBE
3234278
$188,99 Unit Price incl. VAT
65
SCREW-TORX TRUSS HD
3234086
$10,49 Unit Price incl. VAT
66
SHIM 1.180 X .995(9)
3234272
$68,24 Unit Price incl. VAT
67
SNAP RING
3233106
$10,49 Unit Price incl. VAT
68
TRIPLE LIP SEAL; 25 X 80 X 10
3234113
$68,24 Unit Price incl. VAT
69
TUBE-VENT 90-1/4 HOSE
3234230
$19,94 Unit Price incl. VAT
70
SCR-TAPPING HEX WASHER HD 5/16
3234114
$13,64 Unit Price incl. VAT
71
PIN DOWEL 5/16 X 1.0
3234244
$13,64 Unit Price incl. VAT
72
HEX PLUG W/ O-RING; HOLLOW
3233794
$31,49 Unit Price incl. VAT
73
COMPRESSION SPRING
3234089
$52,49 Unit Price incl. VAT
74
RETAINING RING
3234090
$19,94 Unit Price incl. VAT
75
CUP WASHER
3234091
$17,84 Unit Price incl. VAT
76
RING RETAININGBASICINTRNL2.047
3234269
$17,84 Unit Price incl. VAT
77
SHIM; 2.040 OD X 1.630 ID
3234273
$26,24 Unit Price incl. VAT
78
ENGAGEMENT DOG
3234928
$136,49 Unit Price incl. VAT
79
TORSION RETURN SPRING
3234276
$16,79 Unit Price incl. VAT
80
FORK; PIVOT SHIFT REAR DIFF
3234285
$120,74 Unit Price incl. VAT
81
GEAR SUBASSEMBLY; 36 TOOTH; SIDE
3234363
$435,74 Unit Price incl. VAT
82
CARRIER SUBASSEMBLY
3234470
$509,24 Unit Price incl. VAT
83
GEAR; 36 TOOTH DISCONNECT SUBASM; SIDE
3234362
$561,74 Unit Price incl. VAT
84
GEAR SUBASSEMBLY
3234469
$136,49 Unit Price incl. VAT
85
DOWEL PIN; 10 X 45
3234238
$25,19 Unit Price incl. VAT
86
410876 - COVER SUBASSEMBLY
3234471
$404,24 Unit Price incl. VAT
87
SCREW; HH; 5/16-24X1.5
3234267
$13,64 Unit Price incl. VAT
88
SOLENOID
3235478
$545,99 Unit Price incl. VAT
89
WASHER FENDER.256 X 1.00 X.047
3234268
$13,64 Unit Price incl. VAT
90
SUBASSEMBLY-COVER LH PDS
3236312
$908,24 Unit Price incl. VAT
91
CARRIER-SUBASM LOCKING DIFF 1
3235594
$824,24 Unit Price incl. VAT
92
BRKT-MOUNT(430592)
3235350
$16,79 Unit Price incl. VAT
93
BEARING; NEEDLE
3233103
$54,59 Unit Price incl. VAT
94
SPACER
3235243
$17,84 Unit Price incl. VAT
95
O-RING
3234302
$13,64 Unit Price incl. VAT
96
PLUG; .75 HOLLOW HEX MAGNETIC
3234529
3233794
$31,49 Unit Price incl. VAT

Find the detailed DRIVE TRAIN, MAIN GEARCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for SPORTSMAN 570 X2 EPS EUN

REAR BOX FRAME AND PIVOT

REAR BOX FRAME AND PIVOT

for SPORTSMAN 570 X2 EPS EUN from 2019

REAR CAB AND FOOTWELLS

REAR CAB AND FOOTWELLS

for SPORTSMAN 570 X2 EPS EUN from 2019

RIGHT HAND SIDE PANEL HEAT SHIELD AND HARDWARE 2 UP

RIGHT HAND SIDE PANEL HEAT SHIELD AND HARDWARE 2 UP

for SPORTSMAN 570 X2 EPS EUN from 2019

SEAT, OPERATOR

SEAT, OPERATOR

for SPORTSMAN 570 X2 EPS EUN from 2019

CHASSIS, FUEL TANK SUPPORT BRACKET

CHASSIS, FUEL TANK SUPPORT BRACKET

for SPORTSMAN 570 X2 EPS EUN from 2019

DRIVE TRAIN, FRONT DRIVE SHAFT

DRIVE TRAIN, FRONT DRIVE SHAFT

for SPORTSMAN 570 X2 EPS EUN from 2019

DRIVE TRAIN, FRONT GEARCASE

DRIVE TRAIN, FRONT GEARCASE

for SPORTSMAN 570 X2 EPS EUN from 2019

HORN AND LICENSE PLATE LIGHT

HORN AND LICENSE PLATE LIGHT

for SPORTSMAN 570 X2 EPS EUN from 2019

IGNITION COIL, WIRE AND SPARK PLUG

IGNITION COIL, WIRE AND SPARK PLUG

for SPORTSMAN 570 X2 EPS EUN from 2019

SWITCHES, SENSORS AND ECM

SWITCHES, SENSORS AND ECM

for SPORTSMAN 570 X2 EPS EUN from 2019

TAIL LIGHTS

TAIL LIGHTS

for SPORTSMAN 570 X2 EPS EUN from 2019

OIL PUMP

OIL PUMP

for SPORTSMAN 570 X2 EPS EUN from 2019

STARTER DRIVE

STARTER DRIVE

for SPORTSMAN 570 X2 EPS EUN from 2019

ENGINE, STATOR COVER AND FLYWHEEL

ENGINE, STATOR COVER AND FLYWHEEL

for SPORTSMAN 570 X2 EPS EUN from 2019

THERMOSTAT AND COVER

THERMOSTAT AND COVER

for SPORTSMAN 570 X2 EPS EUN from 2019

WHEELS, REAR TIRE AND BRAKE DISC

WHEELS, REAR TIRE AND BRAKE DISC

for SPORTSMAN 570 X2 EPS EUN from 2019

CYLINDER HEAD, CAMS AND VALVES

CYLINDER HEAD, CAMS AND VALVES

for SPORTSMAN 570 X2 EPS EUN from 2019

ELECTRICAL, VOLTAGE REGULATOR AND MOUNTING (FROM 11/30/2018)

ELECTRICAL, VOLTAGE REGULATOR AND MOUNTING (FROM 11/30/2018)

for SPORTSMAN 570 X2 EPS EUN from 2019

BED BOX

BED BOX

for SPORTSMAN 570 X2 EPS EUN from 2019

FUEL TANK ASM.

FUEL TANK ASM.

for SPORTSMAN 570 X2 EPS EUN from 2019

MIRRORS

MIRRORS

for SPORTSMAN 570 X2 EPS EUN from 2019

SEAT, PASSENGER, BOTTOM

SEAT, PASSENGER, BOTTOM

for SPORTSMAN 570 X2 EPS EUN from 2019

TAILGATE

TAILGATE

for SPORTSMAN 570 X2 EPS EUN from 2019

BRAKES, REAR BRAKE LINES

BRAKES, REAR BRAKE LINES

for SPORTSMAN 570 X2 EPS EUN from 2019

CHASSIS, FRAME

CHASSIS, FRAME

for SPORTSMAN 570 X2 EPS EUN from 2019

DRIVE TRAIN, FRONT GEARCASE MOUNTING

DRIVE TRAIN, FRONT GEARCASE MOUNTING

for SPORTSMAN 570 X2 EPS EUN from 2019

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, GEAR SELECTOR

for SPORTSMAN 570 X2 EPS EUN from 2019

BULBS

BULBS

for SPORTSMAN 570 X2 EPS EUN from 2019

WIRE HARNESS

WIRE HARNESS

for SPORTSMAN 570 X2 EPS EUN from 2019

ENGINE, AIR INTAKE SYSTEM SUPPORT BRACKET

ENGINE, AIR INTAKE SYSTEM SUPPORT BRACKET

for SPORTSMAN 570 X2 EPS EUN from 2019

COOLING SYSTEM

COOLING SYSTEM

for SPORTSMAN 570 X2 EPS EUN from 2019

ENGINE, FUEL INJECTOR 2521068 O-RINGS

ENGINE, FUEL INJECTOR 2521068 O-RINGS

for SPORTSMAN 570 X2 EPS EUN from 2019

ENGINE, MOUNTING

ENGINE, MOUNTING

for SPORTSMAN 570 X2 EPS EUN from 2019

ENGINE, VALVE COVER

ENGINE, VALVE COVER

for SPORTSMAN 570 X2 EPS EUN from 2019

OWNERS MANUAL

OWNERS MANUAL

for SPORTSMAN 570 X2 EPS EUN from 2019

TORSION BAR

TORSION BAR

for SPORTSMAN 570 X2 EPS EUN from 2019

WHEELS, FRONT TIRE AND BRAKE DISC

WHEELS, FRONT TIRE AND BRAKE DISC

for SPORTSMAN 570 X2 EPS EUN from 2019

CLUTCH COVER

CLUTCH COVER

for SPORTSMAN 570 X2 EPS EUN from 2019

DECALSS

DECALSS

for SPORTSMAN 570 X2 EPS EUN from 2019

FRONT BUMPER AND MOUNTING

FRONT BUMPER AND MOUNTING

for SPORTSMAN 570 X2 EPS EUN from 2019

BODY, FRONT CAB & SIDE PANELS

BODY, FRONT CAB & SIDE PANELS

for SPORTSMAN 570 X2 EPS EUN from 2019

TAILGATE BRACKETS

TAILGATE BRACKETS

for SPORTSMAN 570 X2 EPS EUN from 2019

BRAKES, BRAKE FRONT BRAKE CALIPER

BRAKES, BRAKE FRONT BRAKE CALIPER

for SPORTSMAN 570 X2 EPS EUN from 2019

BRAKES, BRAKE REAR CALIPER

BRAKES, BRAKE REAR CALIPER

for SPORTSMAN 570 X2 EPS EUN from 2019

BRAKES, BRAKE PEDAL AND MASTER CYLINDER

BRAKES, BRAKE PEDAL AND MASTER CYLINDER

for SPORTSMAN 570 X2 EPS EUN from 2019

BRAKES, FRONT BRAKE LEVER AND MASTER CYLINDER

BRAKES, FRONT BRAKE LEVER AND MASTER CYLINDER

for SPORTSMAN 570 X2 EPS EUN from 2019

DRIVE TRAIN, MAIN GEARCASE MOUNTING

DRIVE TRAIN, MAIN GEARCASE MOUNTING

for SPORTSMAN 570 X2 EPS EUN from 2019

DRIVE TRAIN, PRIMARY CLUTCH

DRIVE TRAIN, PRIMARY CLUTCH

for SPORTSMAN 570 X2 EPS EUN from 2019

DRIVE TRAIN, REAR DRIVE SHAFT

DRIVE TRAIN, REAR DRIVE SHAFT

for SPORTSMAN 570 X2 EPS EUN from 2019

DRIVE TRAIN, SECONDARY CLUTCH

DRIVE TRAIN, SECONDARY CLUTCH

for SPORTSMAN 570 X2 EPS EUN from 2019

CRANKCASE

CRANKCASE

for SPORTSMAN 570 X2 EPS EUN from 2019

ENGINE, CRANKSHAFT, PISTON AND BALANCE SHAFT

ENGINE, CRANKSHAFT, PISTON AND BALANCE SHAFT

for SPORTSMAN 570 X2 EPS EUN from 2019

CYLINDER

CYLINDER

for SPORTSMAN 570 X2 EPS EUN from 2019

EXHAUST

EXHAUST

for SPORTSMAN 570 X2 EPS EUN from 2019

POWER STEERING EPS

POWER STEERING EPS

for SPORTSMAN 570 X2 EPS EUN from 2019

STEERING, HANDLEBAR & CONTROLS

STEERING, HANDLEBAR & CONTROLS

for SPORTSMAN 570 X2 EPS EUN from 2019

SUSPENSION, A-ARM AND STRUT MOUNTING

SUSPENSION, A-ARM AND STRUT MOUNTING

for SPORTSMAN 570 X2 EPS EUN from 2019

FRONT SUSPENSION STRUT

FRONT SUSPENSION STRUT

for SPORTSMAN 570 X2 EPS EUN from 2019

HEADLIGHT POD

HEADLIGHT POD

for SPORTSMAN 570 X2 EPS EUN from 2019

BODYWORK

BODYWORK

for SPORTSMAN 570 X2 EPS EUN from 2019

SEAT, PASSENGER, BACK

SEAT, PASSENGER, BACK

for SPORTSMAN 570 X2 EPS EUN from 2019

BODY, FRONT STORAGE

BODY, FRONT STORAGE

for SPORTSMAN 570 X2 EPS EUN from 2019

FRONT BRAKE BRAKE LINES

FRONT BRAKE BRAKE LINES

for SPORTSMAN 570 X2 EPS EUN from 2019

BRAKES, VALVE SYSTEM

BRAKES, VALVE SYSTEM

for SPORTSMAN 570 X2 EPS EUN from 2019

DRIVE TRAIN, FRONT PROP SHAFT

DRIVE TRAIN, FRONT PROP SHAFT

for SPORTSMAN 570 X2 EPS EUN from 2019

DRIVE TRAIN, MAIN GEARCASE

DRIVE TRAIN, MAIN GEARCASE

for SPORTSMAN 570 X2 EPS EUN from 2019

BATTERY

BATTERY

for SPORTSMAN 570 X2 EPS EUN from 2019

GAUGES & INDICATORS

GAUGES & INDICATORS

for SPORTSMAN 570 X2 EPS EUN from 2019

HEADLIGHTS

HEADLIGHTS

for SPORTSMAN 570 X2 EPS EUN from 2019

ENGINE, AIR INTAKE SYSTEM

ENGINE, AIR INTAKE SYSTEM

for SPORTSMAN 570 X2 EPS EUN from 2019

CAM CHAIN AND SPROCKET

CAM CHAIN AND SPROCKET

for SPORTSMAN 570 X2 EPS EUN from 2019

LONG BLOCK

LONG BLOCK

for SPORTSMAN 570 X2 EPS EUN from 2019

OIL FILTER AND DIPSTICK

OIL FILTER AND DIPSTICK

for SPORTSMAN 570 X2 EPS EUN from 2019

THROTTLE BODY AND FUEL RAIL

THROTTLE BODY AND FUEL RAIL

for SPORTSMAN 570 X2 EPS EUN from 2019

ENGINE, WATERPUMP IMPELLER AND COVER

ENGINE, WATERPUMP IMPELLER AND COVER

for SPORTSMAN 570 X2 EPS EUN from 2019

STEERING, CONTROLS, THROTTLE ASM. AND CABLE

STEERING, CONTROLS, THROTTLE ASM. AND CABLE

for SPORTSMAN 570 X2 EPS EUN from 2019

REAR SUSPENSION

REAR SUSPENSION

for SPORTSMAN 570 X2 EPS EUN from 2019

TOOL KIT

TOOL KIT

for SPORTSMAN 570 X2 EPS EUN from 2019

POLARIS SPORTSMAN 570 X2 EPS EUN 2019

SPORTSMAN 570 X2 EPS EUN

SPORTSMAN 570 X2 EPS EUN

Model : SPORTSMAN 570 X2 EPS EUN

Engine capacity : 570

Year : 2019

New and OEM parts
International Shipping
Official price POLARIS
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.2 /5
1764 Reviews
View all reviews
Spare parts catalogue for all brands
