Engine displacement
800
2
Year
2003
3
Trim
800 XC SP EDGE M-10 F/O
4
Parts Catalog
ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
EXHAUST
by
STARTING MOTOR
ENGINE MOUNTING
1
SCREW M14X1.5X215
7517501
7518412
$52,49 Unit Price incl. VAT
2
WASHER
7556003
$11,54 Unit Price incl. VAT
3
CLUTCH WASHER; RETAINER
5132441
$41,99 Unit Price incl. VAT
4
KIT-SHT BLK S70-70-03
2202234
9990000
Not Available
4
KIT-SHT BLK S80-70-03
2202335
9990000
Not Available
5
SPARK PLUG
3070190
$7,34 Unit Price incl. VAT
6
CONDUIT FLEX(.75ID)
552139813
Not Available
7
WASHER(10)
7555944
9999999
Not Available
8
RING-E RET.
7710427
9999999
Not Available
9
RECOIL HANDLE; GLOSS BLACK
5431499070
Not Available
10
NYLOK NUT
7542451
$2,09 Unit Price incl. VAT
11
WASHER FLAT(10)
7555893
$1,56 Unit Price incl. VAT
12
STRAP-ENGINE MOUNT;S80;LH
5245462
9999999
Not Available
12
STRAP-ENGINE MOUNTS80RH
5245475
9999999
Not Available
13
MOUNT-ENGINE 3/8-16 50 DUR
3021290
9999999
Not Available
14
BOLT
7512539
$7,34 Unit Price incl. VAT
15
SPRING LOCK WASHER
7553101
$7,34 Unit Price incl. VAT
16
FLANGED NUT; 3/8-16
7547180
$4,19 Unit Price incl. VAT
17
MOUNT-ENGINE 3/8-16
3021220
9999999
Not Available
18
BRKT-ENGINE MOUNT;RH;FORMED
5245044
9999999
Not Available
19
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
20
FLEX LOCK; NUT
7547008
$11,54 Unit Price incl. VAT
21
WELD-ENG MOUNT BRKT;LH
1013397
9999999
Not Available
22
SCR-3/8-16X1-P30-SPEC-Y
7517854
$10,49 Unit Price incl. VAT
23
ENGINE MOUNT
3021206
9999999
Not Available
24
THROTTLE CABLE
7081051
9999999
Not Available
25
FUEL LINE ETHER RED 5/16# Substituted by 8350017-160
8350017600
Not Available
26
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
27
VLV FUEL SHUTOFF 5/16 ID
7052268
9999999
Not Available
28
PUMP-FUEL 5/16 IN/OUT MIK
2520275
$188,99 Unit Price incl. VAT
29
FUEL LINE; 600 CM
8450040600
Not Available
30
TUBING-CONVOLUTED .50ID 25CM
836005225
Not Available

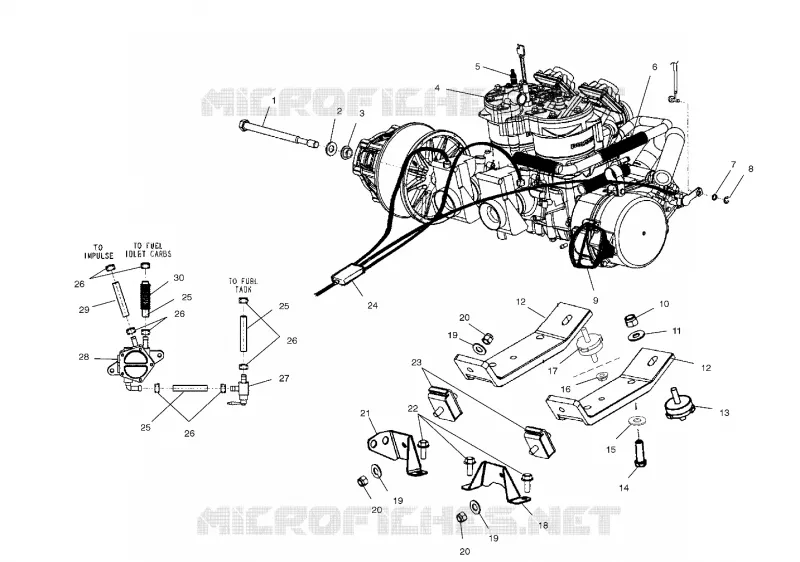

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
