REAR SUSPENSION for POLARIS 600 PRO RMK / LE 155 from 2015

REAR SUSPENSION

1

HEX FLANGE SCREW; 10 MM X 1.5 MM 35 MM

7518957

$6,29 Unit Price incl. VAT

2

HEX FLANGE SCREW; 10 MM X 1.5 MM X 40

7519216

$9,44 Unit Price incl. VAT

3

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

4

SFT-M10X1.5IDX17.47ODX220.1 LG

5136572

$52,49 Unit Price incl. VAT

5

SPRING WASHER; .406 X 1.25 X .125

7556490

$9,44 Unit Price incl. VAT

6

IDLER SPACER

5436496

$11,54 Unit Price incl. VAT

7

SPACER; IDLER

5432535

$20,99 Unit Price incl. VAT

8

BUSHING

7555918

$3,14 Unit Price incl. VAT

9

BEARING-.7874X1.6535X.4724 NTN

3514384

3515142

$34,64 Unit Price incl. VAT

9

RETAINING RING

7710444

$15,74 Unit Price incl. VAT

9

ASM-WHEEL WEB 7.25 6004 BLK

1590431070

Not Available

10

SPACER IDLER CENTER

5333283

$27,29 Unit Price incl. VAT

11

IDLER SHAFT; 10 MM X 1.5 MM

5137224

$52,49 Unit Price incl. VAT

12

TRACK; 155 X 2.4 SINGLE LAYER

5413622

$1 510,94 Unit Price incl. VAT

13

HEX FLANGE SCREW 10 MM X 1.5 MM X 250 MM

7519198

$41,99 Unit Price incl. VAT

14

WASHER 10.5 X 24 X 1.2446

7556545

$6,29 Unit Price incl. VAT

15

CROSS SHAFT; RMK

5137418

$62,99 Unit Price incl. VAT

16

SCR-HXFL M6X1.0X150 8.8 ZOD

7519201

$36,74 Unit Price incl. VAT

17

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

18

LUBRICATION FITTING

7080424

$9,44 Unit Price incl. VAT

19

PIVOT ARM WELD; REAR; BLACK

1542906329

Not Available

20

SHAFT-17.45X216.95

5137936

5140954

$73,49 Unit Price incl. VAT

21

WASHER

7556042

7555806

$1,56 Unit Price incl. VAT

22

WSHR-.719X1.250X.065-Y

7556210

$7,34 Unit Price incl. VAT

23

INSIDE SPACER

5337107

$47,24 Unit Price incl. VAT

24

OUTSIDE SPACER

5337106

$47,24 Unit Price incl. VAT

25

BOGIE WHEEL ASSEMBLY

1590509

$99,74 Unit Price incl. VAT

26

WAVE WASHER

7556063

$5,76 Unit Price incl. VAT

27

WASHER

7555832

$4,19 Unit Price incl. VAT

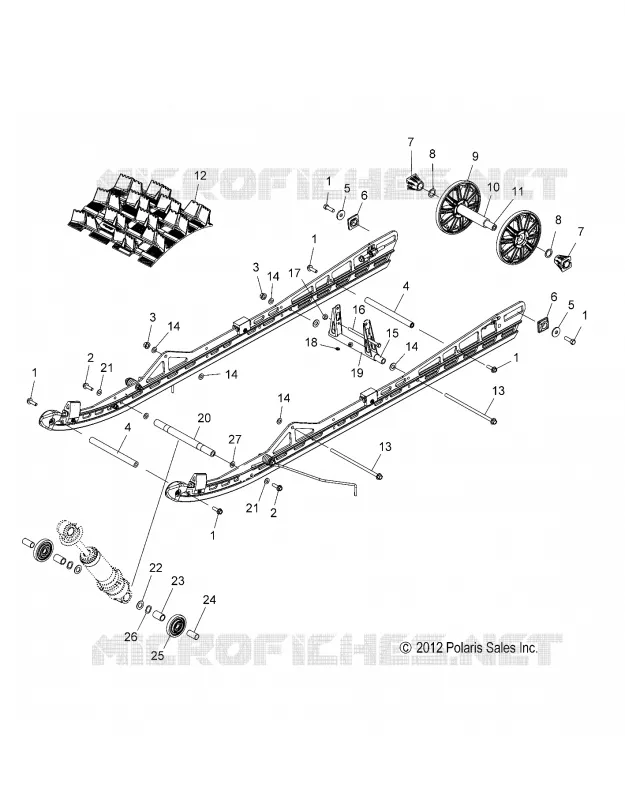

Find the detailed REAR SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
