1
Engine displacement
autre
2
Year
1993
3
Trim
LITE - 0933433
4
Parts Catalog
PISTON CRANKSHAFT STARLITE/0933427 (4922972297032A)
5
Parts Diagram
Parts Catalog
PISTON CRANKSHAFT LITE/0933433 AND LITE DELUXE/0933431 (4922972297031A)
by
CARBURETOR LITE/0933433 AND LITE DELUXE/0933431 (4922972297033A)
PISTON CRANKSHAFT STARLITE/0933427 (4922972297032A)
1
1
2
2
2
2
3
4
4
5
5
6
7
8
9
10
11
12
13
14
14
14
14
15
16
1
1
2
2
2
2
3
4
4
5
5
6
7
8
9
10
11
12
13
14
14
14
14
15
16
1
1
2
2
2
2
3
4
4
5
5
6
7
8
9
10
11
12
13
14
14
14
14
15
16
1
PISTON RING STANDARD (2)
3080259
9999999
Not Available
1
PISTON RING STANDARD (2)
3081724
9999999
Not Available
2
PISTON
3083023
9999999
Not Available
2
SET PISTON .020/.50MM O/S
3084316
9999999
Not Available
3
PIN PISTON
3083512
9999999
Not Available
4
CLIP PISTON PIN (10)
3083682
9999999
Not Available
5
SPACER PISTON PIN
3083415
9999999
Not Available
6
CONNECTING ROD
3082790
9999999
Not Available
7
BEARING
3081629
9999999
Not Available
8
CRANK PIN PTO
3082796
9999999
Not Available
9
BALL BEARING
3083805
9999999
Not Available
10
KEY WOODRUFF
3081543
$26,24 Unit Price incl. VAT
11
WASHER SPRING
3080772
Not Available
12
NUT
3080639
9999999
Not Available
13
GEAR CRANKSHAFT
3083414
9999999
Not Available
14
CRANKSHAFT #1
3083845
9999999
Not Available
14
CRANKSHAFT
3083413
9999999
Not Available
15
BEARING LGE.END
3083803
9999999
Not Available
16
CRANKSHAFT #2
3083846
Not Available

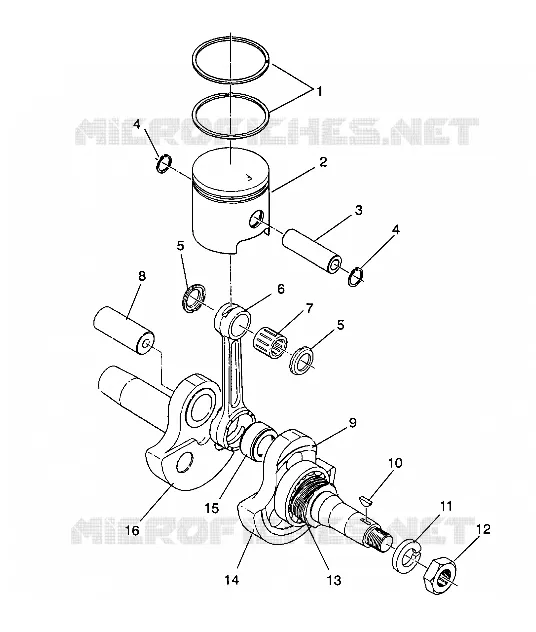

Find the detailed PISTON CRANKSHAFT STARLITE/0933427 (4922972297032A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
