Parts Catalog
NOSEPAN ASSEMBLY XLT SPECIAL (XTRA) 0946767 (4927112711004A)
5
Parts Diagram
Parts Catalog
RECOIL STARTER ASSEMBLY XLT SPECIAL (XTRA) 0946767 (4927112711039A)
by
HOOD ASSEMBLY XLT SPECIAL (XTRA) 0946767 (4927112711005A)
NOSEPAN ASSEMBLY XLT SPECIAL (XTRA) 0946767 (4927112711004A)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
1
TAPE FOIL PAN#4
5810494
9999999
Not Available
2
TAPE FOIL PAN#5
5810495
9999999
Not Available
3
TAPE FOIL PAN#3
5810493
9999999
Not Available
4
TAPE FOIL (5X12)
5810466
Not Available
5
FOIL TAPE RH SHOCKTOWER
5810964
Not Available
6
FOIL TAPE TOP SHOCKTOWER
5810994
Not Available
7
FOIL TAPE REAR SHOCKTOWER
5810995
Not Available
8
TAPE FOIL(11X12)
5810465
9999999
Not Available
9
SCREW
7512017
9999999
Not Available
10
COVER TOOL BOX
5430719
9999999
Not Available
11
FOAM - TOOL BOX
5810266
9999999
Not Available
12
BOX-TOOL
5430716
9999999
Not Available
13
PIN-CLUTCH COVER
7080216
7080698
$17,84 Unit Price incl. VAT
14
GUARD CLUTCH
5230118
5240965
Not Available
15
DECAL ENG/CLUTCH [No Longer Available]
7072871
Not Available
16
BELT RETAINER CLIP
5222769
$15,74 Unit Price incl. VAT
17
RIVET
7621429
$2,09 Unit Price incl. VAT
18
POP RIVET
7621402
$2,09 Unit Price incl. VAT
19
HINGE
5210728
9999999
Not Available
20
WASHER 13/64X1/2X18GA FL-Y (10
7558212
$1,56 Unit Price incl. VAT
21
BRACKET HINGE Substituted by 5241437
5240625
Not Available
22
POP RIVET
7621330
$2,09 Unit Price incl. VAT
23
RIVET(10)
7621435
$2,09 Unit Price incl. VAT
24
RIVET
7621467
$2,09 Unit Price incl. VAT
25
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
26
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
27
CAP; TOWER
5020517
9999999
Not Available
28
SCREW(10)
7512102
$6,29 Unit Price incl. VAT
29
CAP BUMPER BLK.
5430930070
Not Available
30
EMBLEM POLARIS LAV.
5430979171
Not Available
31
SCREW
7511863
9999999
Not Available
32
BUMPER FRONT
5224333067
Not Available
33
SCREW
7512279
$1,56 Unit Price incl. VAT
34
NOSECONE BLK.VIOLET/BLK.
54309311047
Not Available

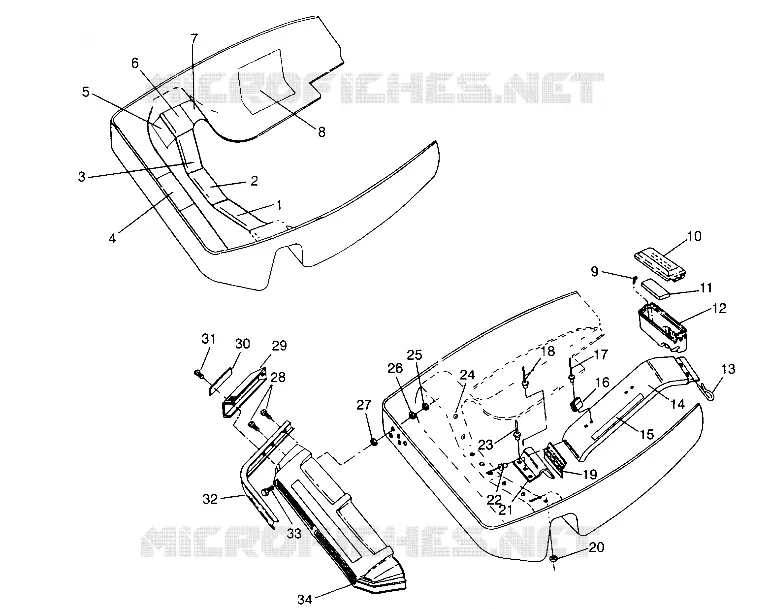

Find the detailed NOSEPAN ASSEMBLY XLT SPECIAL (XTRA) 0946767 (4927112711004A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
