Parts Catalog
BRAKES, BRAKE PEDAL AND MASTER CYLINDER
5
Parts Diagram
Parts Catalog
DECALS
by
BRAKES, REAR CALIPER
BRAKES, BRAKE PEDAL AND MASTER CYLINDER
1
2-EAR RESERVOIR BRAKE ASSEMBLY; TALL
1911224
$68,24 Unit Price incl. VAT
2
MASTER CYLINDER FOOT BRAKE ASSEMBLY
1912301
$178,49 Unit Price incl. VAT
3
DIAPHRAGM-RESERVOIR BRAKE
5413262
$9,44 Unit Price incl. VAT
4
RING-RESERVOIR BRAKE
5437041
$10,49 Unit Price incl. VAT
5
NYLOK FLANGED NUT
7542153
$3,14 Unit Price incl. VAT
6
HOSE-RESERVOIR BRAKE 660MM
1911267660
Not Available
7
SCREW
7512126
$9,44 Unit Price incl. VAT
8
COTTER PIN
7661401
$1,56 Unit Price incl. VAT
9
WASHER
7555919
$7,34 Unit Price incl. VAT
10
PEDAL PIVOT BUSHING
5433189
$7,34 Unit Price incl. VAT
11
WELD-BRAKE PEDAL M.BLK
1911657458
Not Available
11
BRAKE PEDAL WELD; MEDIUM GLOSS BLACK
1911657067
Not Available
12
TORSION SPRING; BRAKE
7041750
$16,79 Unit Price incl. VAT
13
SCREW
7517312
$2,09 Unit Price incl. VAT
14
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
15
CLEVIS PIN
7661830
$7,34 Unit Price incl. VAT
16
PIN-COTTER 5/64X3/4-Y
7661900
$6,29 Unit Price incl. VAT

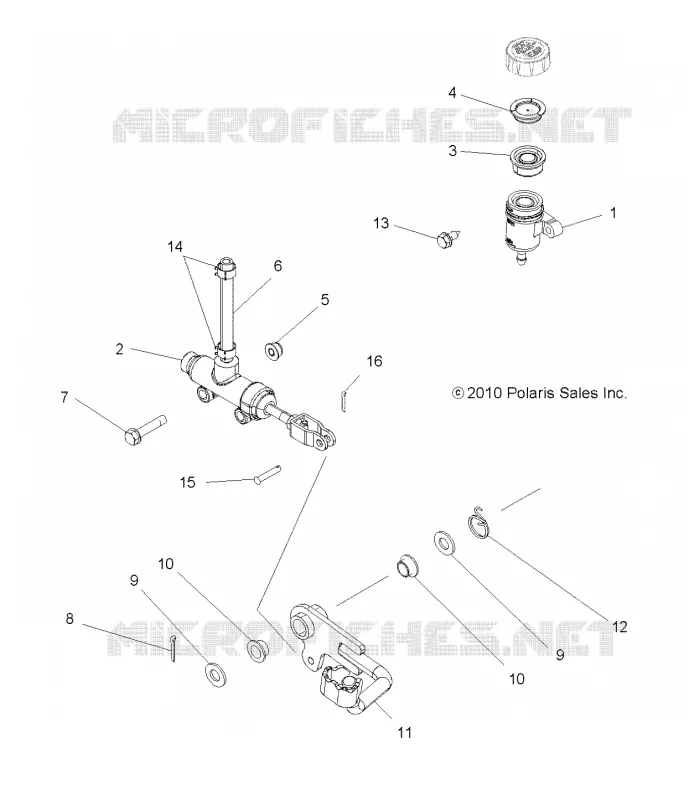

Find the detailed BRAKES, BRAKE PEDAL AND MASTER CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
