Engine displacement
570
2
Year
2015
3
Trim
RANGER 570 EFI FULL SIZE CREW
4
Parts Catalog
BRAKE LINES AND MASTER CYLINDER
5
Parts Diagram
Parts Catalog
SEAT
by
FRONT BRAKE CALIPER
BRAKE LINES AND MASTER CYLINDER
1
1
1
1
2
3
4
5
6
7
8
9
10
10
10
10
10
10
11
12
12
13
13
14
14
15
15
16
17
17
18
18
19
19
19
19
1
BANJO BOLT; 10 MM X 1.00
1910499
$10,49 Unit Price incl. VAT
2
BANJO BOLT; 10 MM X 1.25-6G
1910958
$14,69 Unit Price incl. VAT
3
ASM-MASTER CYLINDER;UV;GS
1911515
1912463
$482,99 Unit Price incl. VAT
4
BRAKE LINE; FRONT LEFT
1911734
$141,74 Unit Price incl. VAT
5
FRONT RIGHT BRAKE LINE
1911735
$141,74 Unit Price incl. VAT
6
BRAKELINE; REAR; RIGHT; BRAIDED
1911736
$178,49 Unit Price incl. VAT
7
BRAKE LINE; REAR; LEFT
1911733
$173,24 Unit Price incl. VAT
8
LINE-BRAKE M/C REAR BRD
1912045
$262,49 Unit Price incl. VAT
9
SWITCH
4014225
$167,99 Unit Price incl. VAT
10
SEAL
5413212
9999999
Not Available
11
TEE FITTING BRAKE
7052293
$110,24 Unit Price incl. VAT
12
CLAMP CABLE
7080499
$10,49 Unit Price incl. VAT
13
HOSE CLAMP
7080683
$4,19 Unit Price incl. VAT
14
ROUTING CLIP
7081496
$9,44 Unit Price incl. VAT
15
SCREW
7512084
$2,09 Unit Price incl. VAT
16
SCR-10-24X1 PN TRX TFS STL-Y
7518552
$7,34 Unit Price incl. VAT
17
POP RIVET
7621323
$2,09 Unit Price incl. VAT
18
CLIP
7670102
$4,19 Unit Price incl. VAT
19
HEX FLANGE BOLT OLIVE 10MMX1.25MMX20MM
7518558
$7,34 Unit Price incl. VAT

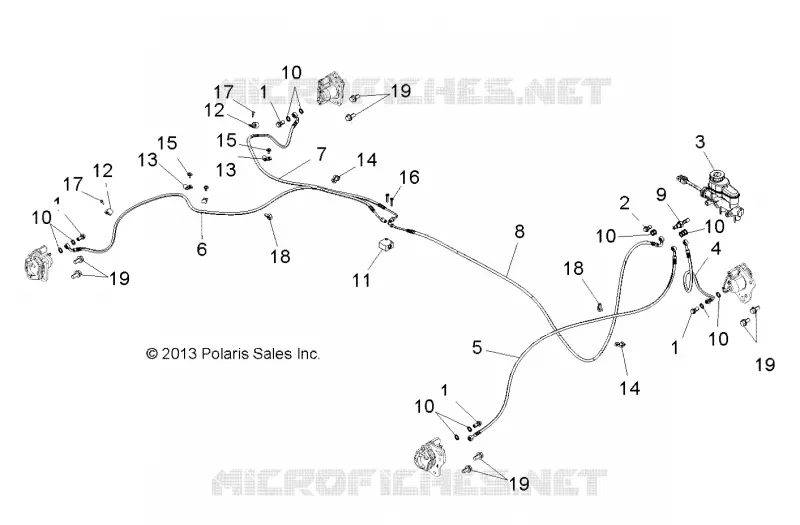

Find the detailed BRAKE LINES AND MASTER CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
