1
Engine displacement
500
2
Year
1996
3
Trim
EURO 500 EFI - E963774
4
Parts Catalog
CONTROLS 500 EFI 0963774 AND EUROPEAN 500 EFI E963774 (4936183618B005)
5
Parts Diagram
Parts Catalog
STEERING 500 EFI 0963774 AND EUROPEAN 500 EFI E963774 (4936183618B004)
by
SUSPENSION 500 EFI 0963774 AND EUROPEAN 500 EFI E963774 (4936183618B010)
CONTROLS 500 EFI 0963774 AND EUROPEAN 500 EFI E963774 (4936183618B005)
1
RETAINING PIN
7661624
$23,09 Unit Price incl. VAT
2
RETAINING RING
7710503
$7,34 Unit Price incl. VAT
3
THROTTLE LEVER
5430652
9999999
Not Available
3
LEVER ASMHTR.STD 34MM
2010142
9999999
Not Available
4
THROTTLE/BRAKE; BLOCK
5431592
$73,49 Unit Price incl. VAT
5
ADAPTER BLOCK
5430604
$26,24 Unit Price incl. VAT
6
SWITCH AUXILIARY SHUT-OFF
4110106
9999999
Not Available
7
SCREW SET
7512465
$7,34 Unit Price incl. VAT
8
WASHER
7555730
$7,34 Unit Price incl. VAT
9
RETAINING RING
7710401
$7,34 Unit Price incl. VAT
10
WASHER (10)
7555727
9999999
Not Available
11
SCREW
7511848
$7,34 Unit Price incl. VAT
12
WIRE HOLDER
5432261
$47,24 Unit Price incl. VAT
13
SCREW
7511858
$7,34 Unit Price incl. VAT
14
SWITCH; DIMMER
4110136
9999999
Not Available
15
MASTER CYL.ASM3/4"
2050070
9999999
Not Available
16
SCREW W/WASHER
7512050
9999999
Not Available
17
COVER MASTER CYL.
5630338
9999999
Not Available
18
MASTER CYLINDER GASKET
5410527
9999999
Not Available
19
MASTER CYLINDER HOUSING
5130955
9999999
Not Available
19
MASTER CYL.ASMW/GLASS
2050071
9999999
Not Available
20
SEAL SIGHT GLASS
1930660
9999999
Not Available
21
GLASS SIGHT MASTER CYL.
1930710
Not Available
22
WASHER; BAFFLE
1930662
9999999
Not Available
23
BAFFLE MASTER CYL.
1930673
9999999
Not Available
24
BOLT SOCKET HEAD
7512290
$9,44 Unit Price incl. VAT
25
CLAMP MASTER CYL.
5630342
9999999
Not Available
26
WASHER
7555708
9999999
Not Available
27
SPRING; MASTERCYL.
7041311
9999999
Not Available
28
U-PACKING SEAL
5410164
9999999
Not Available
29
PISTON MASTER CYL.
5020679
9999999
Not Available
30
O-RING
5410163
$3,14 Unit Price incl. VAT
31
NUT
7542124
7542122
$2,09 Unit Price incl. VAT
32
STRAP PARK.BRAKE TAG
7080447
9999999
Not Available
33
TAG-PARK BRAKE WARNING [S99CM][FROM 5/18/2018]
5431389
Not Available
34
SCREW
7511866
$9,44 Unit Price incl. VAT
35
BUSHING PK.BRAKE LEVER
5020670
9999999
Not Available
36
LEVER PARK.BRAKE
5240809
9999999
Not Available
37
SPRING PK.BRAKE
7041229
9999999
Not Available
38
LEVER BRAKE
5630409
9999999
Not Available
39
BUSHING BRAKE LEVER
5332931
9999999
Not Available
40
BOLT BRAKE LEVER
7512287
9999999
Not Available

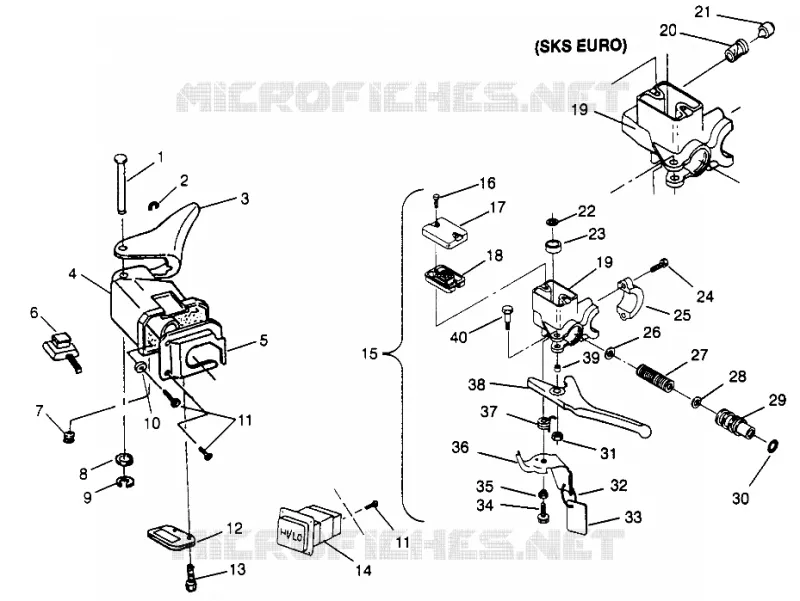

Find the detailed CONTROLS 500 EFI 0963774 AND EUROPEAN 500 EFI E963774 (4936183618B005) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
