REAR SUSPENSION for POLARIS PROSTAR S4 NORDIC PRO 146 from 2024

REAR SUSPENSION

1

HEX FLANGE SCREW; 10 MM X 1.5 MM 35 MM

7518957

$6,29 Unit Price incl. VAT

2

HEX FLANGE SCREW; 10 MM X 1.5 MM X 40

7519216

$9,44 Unit Price incl. VAT

3

WASHER

7556153

$3,66 Unit Price incl. VAT

4

CLIP-TRACK FLAT 012-0107 (10

5251273

$18,89 Unit Price incl. VAT

4

LONG GUIDE TRACK CLIP

5251274

$13,64 Unit Price incl. VAT

4

TRACK-15X146 1.6 COBRA 2.86P

5417344

$1 464,74 Unit Price incl. VAT

5

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

6

WASHER 10.5 X 24 X 1.2446

7556545

$6,29 Unit Price incl. VAT

7

SPRING WASHER; .406 X 1.25 X .125

7556490

$9,44 Unit Price incl. VAT

8

BEARING-.7874X1.6535X.4724 NTN

3514384

3515142

$34,64 Unit Price incl. VAT

8

WHEEL SPOKE ASSEMBLY; 7.25

1590459

$82,94 Unit Price incl. VAT

8

RETAINING RING

7710444

$15,74 Unit Price incl. VAT

9

SPACER; IDLER

5432535

$20,99 Unit Price incl. VAT

10

BUSHING

7555918

$3,14 Unit Price incl. VAT

11

SHAFT-IDLER M10X1.5THDX336 LG

5136745

$62,99 Unit Price incl. VAT

12

IDLER SPACER; LONG

5333285

$20,99 Unit Price incl. VAT

13

SCR-HXFL M6X1.0X150 8.8 ZOD

7519201

$36,74 Unit Price incl. VAT

14

CROSS SHAFT; RMK

5137418

$62,99 Unit Price incl. VAT

15

HEX FLANGE SCREW 10MM X 1.25MM X 250MM

7519327

$36,74 Unit Price incl. VAT

16

WELD-REAR PIVOT ARM; ECOAT

1544229329

Not Available

17

LUBRICATION FITTING

7080424

$9,44 Unit Price incl. VAT

18

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

19

SHOCK CENTERING LIGHTWEIGHT SPACER

5450477

$15,74 Unit Price incl. VAT

20

SHAFT 17.45 X 214.77

5137312

$52,49 Unit Price incl. VAT

21

WSHR-.719X1.250X.065-Y

7556210

$7,34 Unit Price incl. VAT

22

SFT-M10X1.5IDX17.47ODX220.1 LG

5136572

$52,49 Unit Price incl. VAT

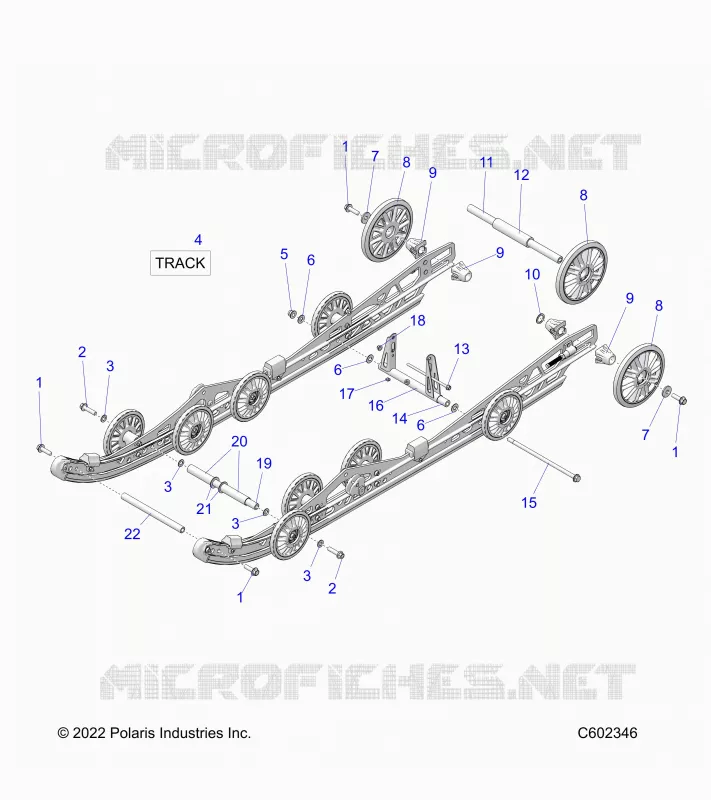

Find the detailed REAR SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
