1
Engine displacement
900
2
Year
2006
3
Trim
900 SWITCHBACK
4
Parts Catalog
SUSPENSION
5
Parts Diagram
Parts Catalog
HANDLEBAR
by
SUSPENSION, RAIL MOUNTING
SUSPENSION
1
NYLOK NUT
7547263
$6,29 Unit Price incl. VAT
2
NUT-5/16-24 NYLOK GR8 Y
7547217
$7,34 Unit Price incl. VAT
3
TUBE; .397 X .562 X 8.515; NITRIDE
5334162
9999999
Not Available
4
SPACER; IDLER
5432535
$20,99 Unit Price incl. VAT
5
BUSHING
7555918
$3,14 Unit Price incl. VAT
6
BEARING-.7874X1.6535X.4724 NTN
3514384
3515142
$34,64 Unit Price incl. VAT
6
RETAINING RING
7710444
$15,74 Unit Price incl. VAT
6
ASM-WHEEL SCRL 7.25 6004 I RED
1590388293
Not Available
7
IDLER SPACER; LONG
5333285
$20,99 Unit Price incl. VAT
8
ILDER SHAFT
5020744
9999999
Not Available
9
WASHER .406 X 1.25 X .125
7556130
$11,54 Unit Price incl. VAT
10
BOLT 3/8-16X1.25(10)
7517731
$2,09 Unit Price incl. VAT
11
SCR-3/8-16X1.50-HX/CP-GR5-P80Y
7518005
$5,76 Unit Price incl. VAT
12
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
13
SCR-3/8-24X9.875 HX/LP GR8-Y
7517921
$41,99 Unit Price incl. VAT
14
TRACK 144" X 1.25 TRACK
2874057
9999999
Not Available
15
SCR-3/8-24X2.00 HX/CP-GR8-P80Y
7517857
$10,49 Unit Price incl. VAT
16
WASHER
7556042
7555806
$1,56 Unit Price incl. VAT
17
SHAFT-C BORE;.688X8.665;2045
5134078
$62,99 Unit Price incl. VAT
18
SHOCK CENTERING SPACER
5334062
$20,99 Unit Price incl. VAT
19
SHAFT .687 X 8.456
5133188
9999999
Not Available
20
WASHER
7555832
$4,19 Unit Price incl. VAT
21
WSHR-.719X1.250X.065-Y
7556210
$7,34 Unit Price incl. VAT
22
WASHER FLAT(10)
7555893
$1,56 Unit Price incl. VAT
23
LUBRICATION FITTING
7080424
$9,44 Unit Price incl. VAT
24
WASHER .385 X 88 X .075
7556242
$4,19 Unit Price incl. VAT
25
PIVOT ARM SHAFT; 2.375; GS BLK
1542122067
Not Available
26
WELD-REAR PIVOT ARM;BLK
1541832067
Not Available

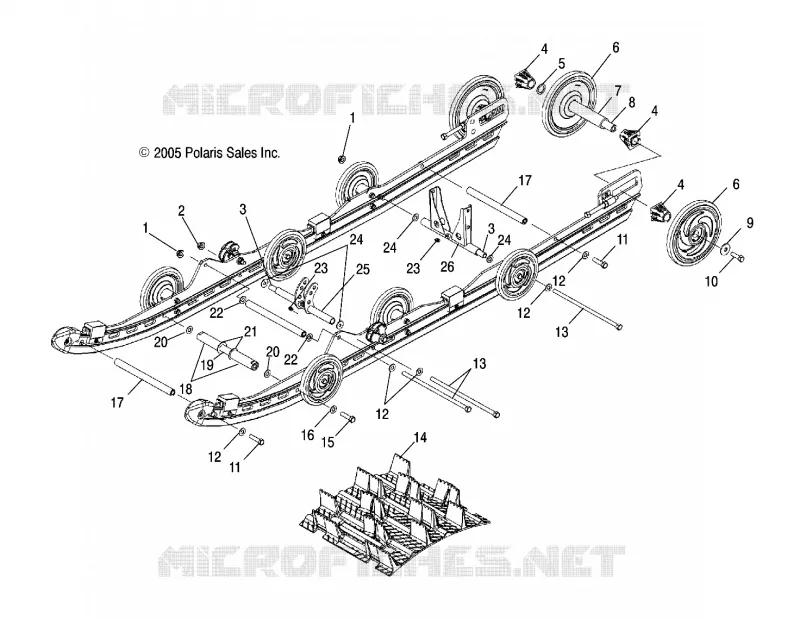

Find the detailed SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
