CLUTCH COVER for POLARIS SCRAMBLER 500 4X4 - A12NG50AA from 2012

CLUTCH COVER

1

OUTER CLUTCH COVER ASSEMBLY

2633926

$346,49 Unit Price incl. VAT

2

KIT-CLUTCH COVER;INNER W/STOP

2202438

9999999

Not Available

3

CLUTCH DUCT; AIR INLET

5438083

9999999

Not Available

4

SEAL COVER; INNER

5411553

9999999

Not Available

5

SCREW

7517386

$2,09 Unit Price incl. VAT

6

ASM-BOLT/WASHER 1.125

7510000

9999999

Not Available

7

CLUTCH COVER SEAL; OUTER

5521738

5526450

$78,74 Unit Price incl. VAT

8

DECAL-WARN CLUTCH COVER

7172563

Not Available

9

BRKT-CLUTCH COVER;BLACK

5247524067

Not Available

10

SCREW

7512094

$3,14 Unit Price incl. VAT

11

O RING-.364X.504X.07

5410542

5411432

$9,44 Unit Price incl. VAT

12

DRAIN PLUG

5434264

$10,49 Unit Price incl. VAT

13

DECAL-AUTOMATIC TRANSMISSION

7172746

9999999

Not Available

14

STOPPER-INNER CLUTCH COVER

5411795

9999999

Not Available

15

DUCT BOOT HI-FLOW

5412636

9999999

Not Available

16

HI-FLOW CLUTCH DUCT 13.6

5434160

9999999

Not Available

17

CLUTCH SEAL BRACKET

5242046

9999999

Not Available

18

ENGINE COVER CASE SEAL

5412637

9999999

Not Available

19

CLUTCH INTAKE BOOT

5411721

9999999

Not Available

20

NARROW BAND CLAMP

7080511

$9,44 Unit Price incl. VAT

21

CLAMP NARROW BAND

7080909

$14,69 Unit Price incl. VAT

22

SCREW AND WASHER

3084205

9999999

Not Available

23

NARROW BAND CLAMP; 70-90 MM

7081279

$5,76 Unit Price incl. VAT

24

SCREW

7517386

$2,09 Unit Price incl. VAT

25

DUCT-EXTENSION

5438172

9999999

Not Available

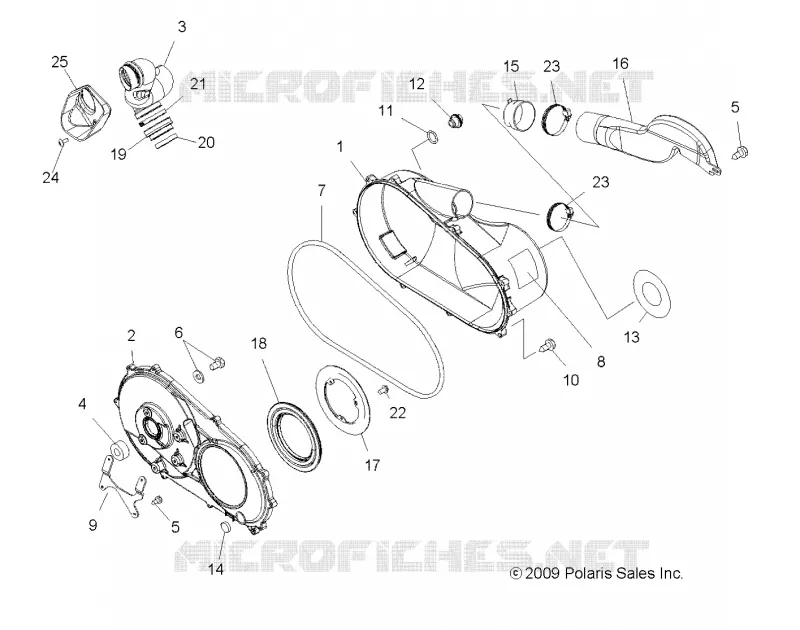

Find the detailed CLUTCH COVER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
